MS866-26 Paddle Actuator, Large Size, Non-Locking, Stainless Steel, Polished Finish
The MS866-26 Paddle Actuator is designed for robust and secure applications in various industrial environments. Featuring both locking and non-locking options, this actuator is crafted with a stainless steel panel and handle, ensuring durability and resistance to corrosion. It is suitable for enclosures that require a reliable, polished finish for aesthetic and functional use. The actuator comes with an optional K13 key, providing added security when required.
- Panel & Handle: Stainless Steel
- Latch Tongue: Zinc Alloy
- Cover Plate: Carbon Steel
Products Categories
Get A Free Quote
Surface Finish
- Panel & Handle: Polished Mirror Finish
- Latch Tongue & Cover Plate: White Zinc Plating
Specifications
- Lock Type: Paddle Actuator
- Size:Large
- Access Restriction: Optional Key Lock (K13 Key available)

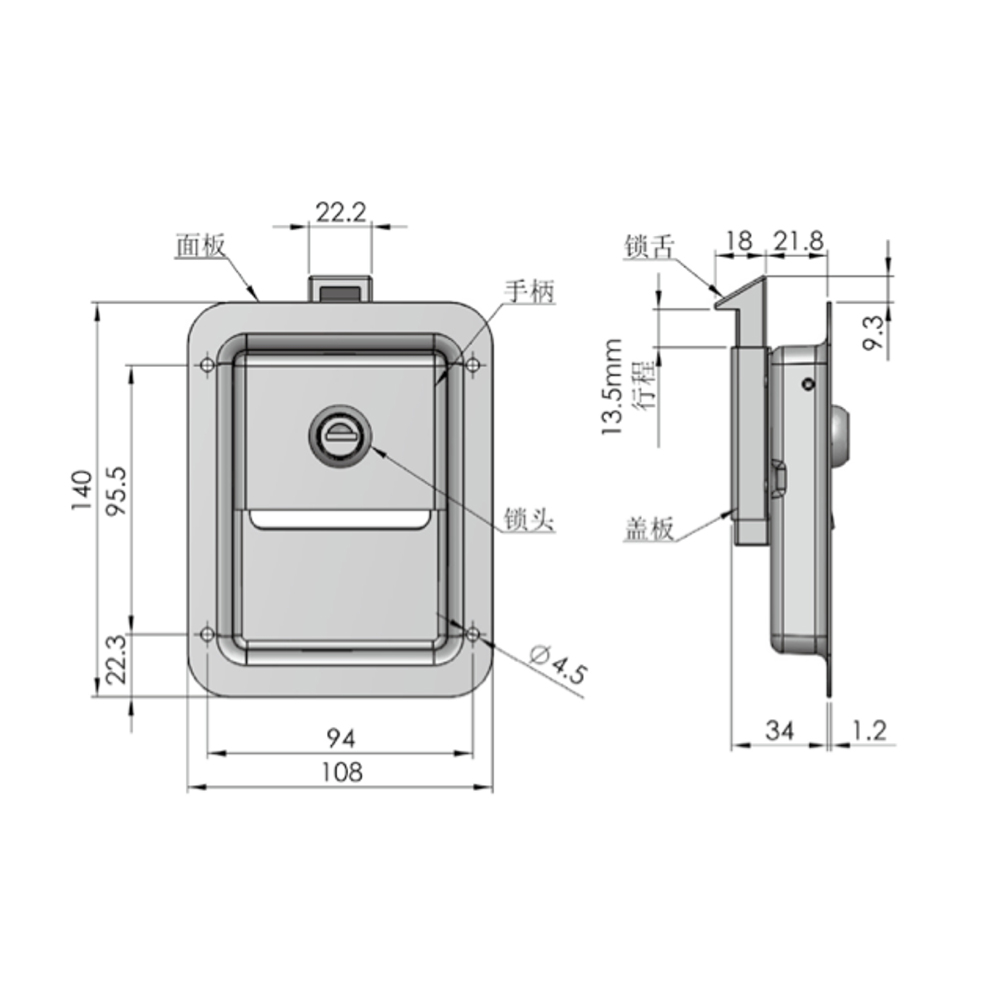

- Mounting Style: Rivet Mount, 4.9mm (.19 in) diameter holes
- Performance Parameters:
- Handle Pull Force Capacity: ≤420N
- Latch Tongue Load Capacity: ≤1000N
Applications
- Industrial cabinets
- Enclosures for equipment
- Control panels
- Any application requiring a durable paddle actuator with optional locking mechanism
Key Features
- Optional Key Locking: Offers security with K13 key option.
- Heavy-Duty Construction: Made with stainless steel for enhanced durability.
- Polished Finish: Ensures a professional look with corrosion resistance.
- Flexible Mounting Options: Suitable for rivet mounting with standard hole dimensions.
