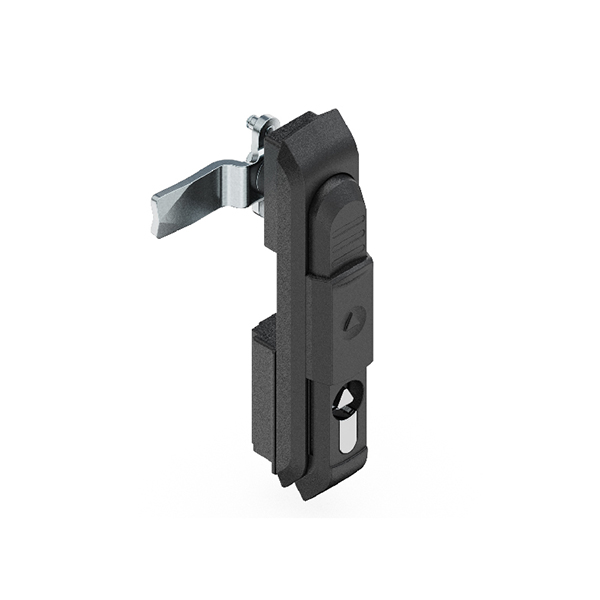

BT7478 Plastic Latch with Zinc Alloy Pivot – Black Sand Texture, for Door Thickness 1~2mm
TheBT7478 is a versatile plastic latch designed for lightweight applications requiring durability and precision. Featuring a zinc alloy pivot and a black sand texture finish, this latch offers a perfect balance of strength and aesthetic appeal. The PA body ensures lightweight performance, while the zinc-plated lock plate provides enhanced corrosion resistance. Suitable for door thicknesses ranging from 1mm to 2mm, this latch is ideal for enclosures, cabinets, and access panels in various industries. The latch is available with or without a positioning cover for the pivot, providing flexibility for different installation needs.
- Material: PA body, zinc alloy pivot, zinc-plated lock plate.
- Finish: Black sand texture for a sleek and durable appearance.
Products Categories
Get A Free Quote
Key Features
- Lightweight Design: PA body ensures easy handling and installation.
- Corrosion Resistance: Zinc-plated lock plate and zinc alloy pivot enhance durability.
- Aesthetic Appeal: Black sand texture provides a modern and professional look.
- Wide Compatibility: Suitable for door thicknesses from 1mm to 2mm.
- Precision Design: Lock plate opening size: 8×8mm, ensuring easy installation and secure fit.
- Flexible Installation: Available with or without a positioning cover for the pivot.
Specifications
- Model Number: BT7478
- Material: PA body, zinc alloy pivot, zinc-plated lock plate
- Surface Finish: Black sand texture
- Door Thickness Compatibility: 1~2mm
- Lock Plate Opening Size: 8×8mm
- Dimensions:
- Length: 47mm
- Width: 22mm
- Height: 17mm
- Mounting Hole Specifications:
- Hole spacing: 25mm
- Hole diameter: 3.5mm
- Rotation Angle: 360° (for models with 360° rotation), 90° (for models with 90° rotation).
Applications
- Industrial enclosures and cabinets.
- Utility boxes and access panels.
- Lightweight security doors and gates.
- Electrical and mechanical equipment requiring lightweight latches.
Keywords
- BT7478 latch
- Plastic latch with zinc alloy pivot
- Black sand texture latch
- Lightweight latch
- PA body latch
- Zinc-plated lock plate
- Corrosion-resistant latch
- Door latch for 1~2mm thickness
- Utility box latch
- Access panel latch
- High-strength plastic latch
- Industrial enclosure latch
- Precision-designed latch
- 360° rotation latch
- 90° rotation latch
- Secure mounting latch
- MS8460P-2-1B
- MS8460P-2-1C
- MS8460P-2-1D
- MS8460P-2-1BL
- MS8460P-2-1BR
- MS8460P-2-1CL
- MS8460P-2-1CR
- MS8460P-2-1DL
- MS8460P-2-1DR
- K0133(B)
- K7010(C)
- K7030(D)
