MS846 Rod Control Latch with Zinc Alloy Handle and Locking System
The MS846 Rod Control Latch is built for durability and performance, featuring a zinc alloy construction and an integrated locking system. Designed for precise control of panels and doors, it offers both strength and aesthetic appeal, making it ideal for industrial and commercial use.
Material:
- Base: Zinc alloy
- Handle: Zinc alloy
- Lock Assembly: Zinc alloy
- Drive Rod: Carbon steel
Surface Finish and Color/Appearance:
- Black matte powder coating for the base and handle
- Polished zinc-plated steel drive rod
Products Categories
Get A Free Quote
Key Features
- 90° rotating handle for smooth operation
- Integrated locking mechanism for enhanced security
- Compatible with Mb01 and Mb02 drive mechanisms
- Default compatibility with TC01/TC02/TC03 lock heads
- High durability and resistance to wear
Specifications
- Handle Bearing Pull Force: ≤235N
- Input Torque: ≤40N·m
- Maximum Static Load: 270N (steel model)

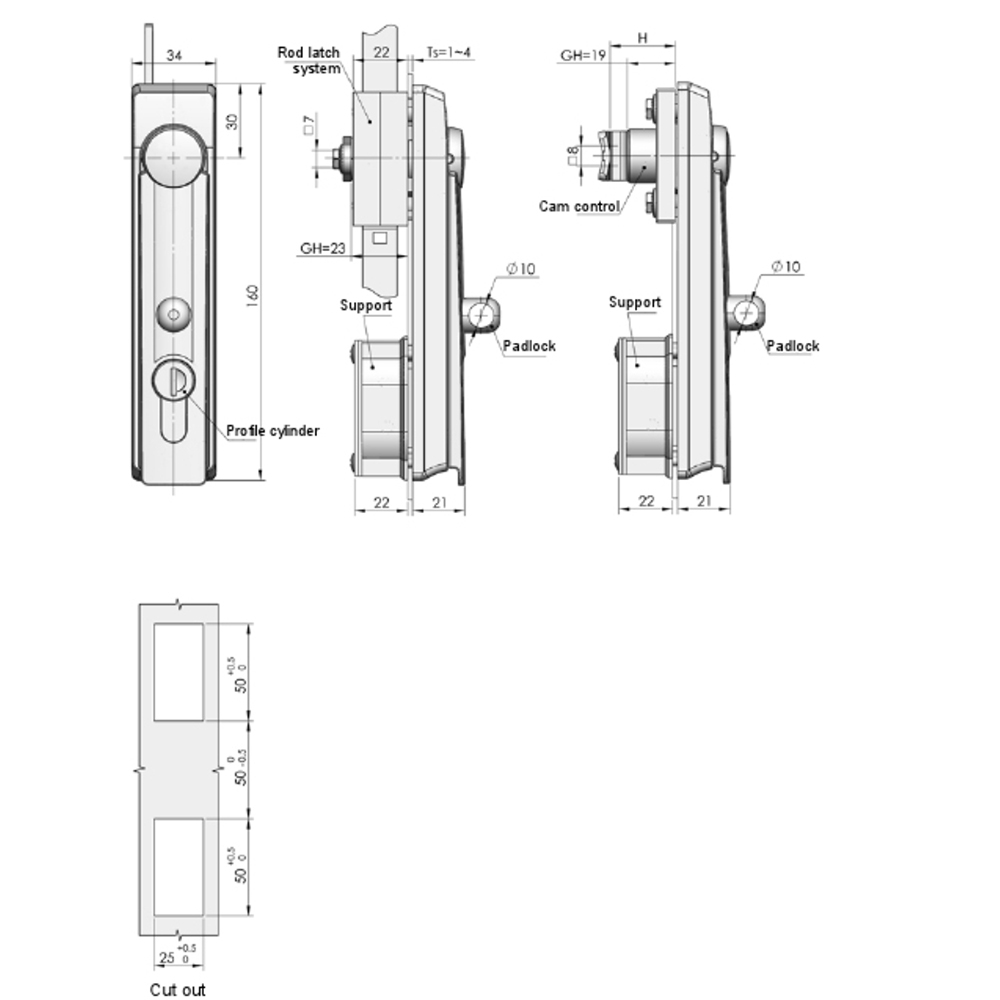

- Dimensions: Refer to technical drawings
- Cutout Dimensions: Two slots, each 50mm x 25mm
Applications
- Industrial panels and enclosures
- Server racks
- Storage cabinets
- Equipment access panels
Keywords
MS846, Rod Control Latch, Zinc Alloy Handle, Integrated Locking System, Carbon Steel Rod, Industrial Latch, Multi-point Locking Mechanism
