MS845-5 Cam Latch – Nylon Handle, 90° Rotation, Quick Installation, High Load Capacity
The MS845-5 cam latch is a robust and versatile locking solution designed for industrial and commercial use. Featuring a 90° rotational locking mechanism, it offers secure and efficient operation. This latch is equipped with a durable nylon handle and a quick-installation base for effortless assembly. Constructed with high-strength materials, including a carbon steel cam and a reinforced nylon handle, the MS845-5 is ideal for applications requiring high load capacity and reliability, such as machinery enclosures and control cabinets.
Material:
- Base: High-strength material
- Handle: Reinforced nylon
- Cam: Carbon steel (Material Code: S1V24Y00001)
Surface Finish and Appearance:
- Handle: Matte black nylon for a modern and ergonomic design.
- Cam: Carbon steel with a hardened chrome finish for enhanced durability.
Products Categories
Get A Free Quote
Key Features
- 90° Rotational Locking Mechanism: Provides secure and efficient locking/unlocking.
- Quick Installation Base: Simplifies the assembly process, saving time and effort.
- High Load Capacity: Supports a maximum static load of 220 N, ideal for demanding applications.
- Durable Materials: Nylon handle and carbon steel cam ensure long-term performance.

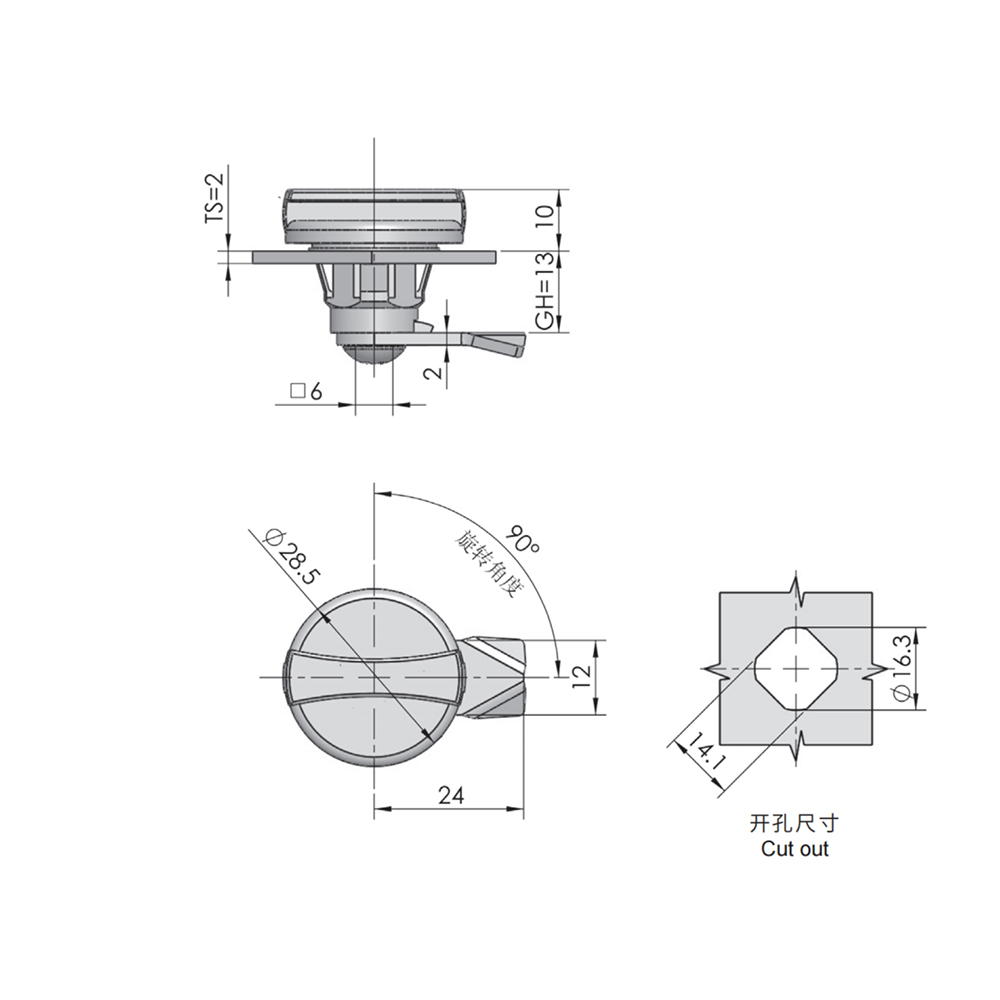

Technical Specifications
- Max Static Load Capacity: 220 N
- Cut-Out Dimensions:
- Ø16.3 mm or square 14.1 mm x 14.1 mm
- Latch Dimensions:
- Cam Length: 24 mm
- Handle Diameter: Ø28.5 mm
- Panel Thickness Fit: TS = 2 mm
Applications
- Suitable for industrial enclosures, control cabinets, and machinery panels requiring durable and ergonomic locking solutions.
Keywords
MS845-5 latch, nylon handle cam lock, 90° rotation, quick-installation latch, high-load latch, industrial panel lock.
