MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications
MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications
MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications
MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications
MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications
MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications
MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications
MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications

MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications

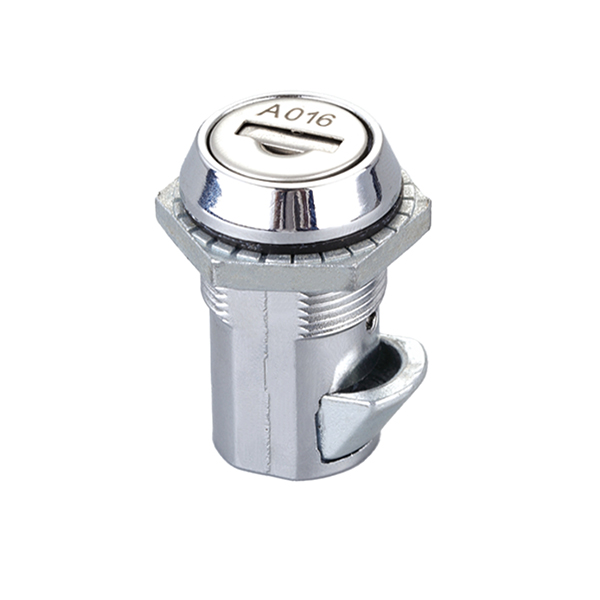

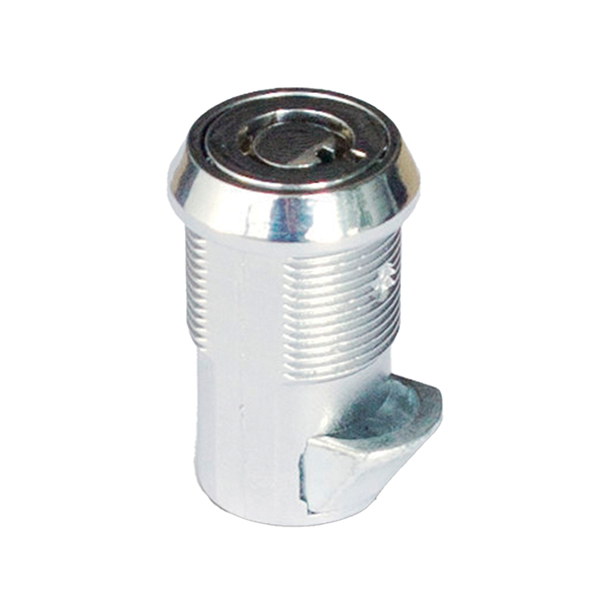

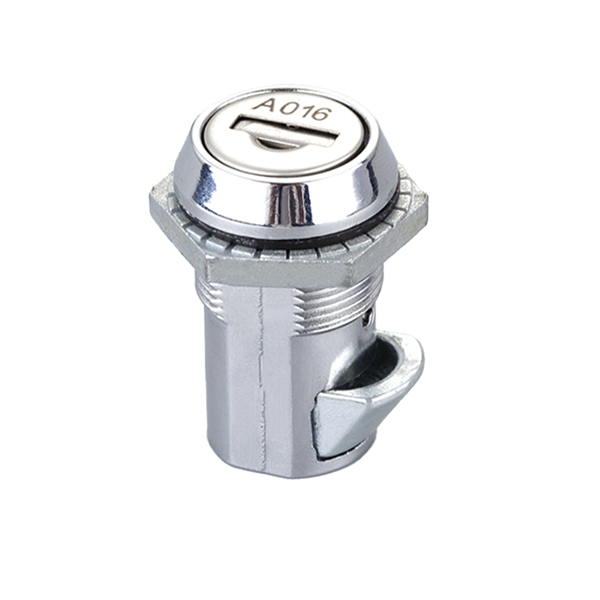

The MS826-2 is an advanced tubular telescoping cam lock, designed for enhanced security in cabinets, enclosures, and industrial storage units. This model features a tubular cam lock core, providing high-security pin tumbler functionality, and a telescoping design that allows adjustable depth for versatile applications. The auto-return spring latch brings added convenience, automatically returning to the locked position after use. Constructed from durable zinc alloy with a polished chrome finish, this IP54-rated lock is ideal for environments requiring dust and water resistance.

Material:
Zinc alloy base, tubular lock core, and cam.

Surface Finish:
Chrome plating on the base and lock core, with white zinc plating on additional components.

Color/Appearance:
Polished chrome for a sleek and professional appearance.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Key Features

  1. Tubular Cam Lock Core: High-security pin tumbler mechanism enhances protection against picking and unauthorized access.
  2. Telescoping Design: Adjustable depth offers flexibility for different mounting requirements.
  3. Auto-Return Spring Latch: Automatically returns to the default position, providing ease of use and security.
  4. IP54 Dust & Water Resistance: Built to perform reliably in environments exposed to dust and moisture.

Specifications

MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications MS826-2 Tubular Telescoping Cam Lock with Auto-Return Spring Latch | IP54 Rated for Secure Cabinet & Enclosure Applications



  • Maximum Static Load:  300N, supporting high-strength security applications.
  • Maximum Input Torque:  4.0 Nm, ensuring secure operation.
  • Recommended Tightening Torque for Fixing Nut:  2.0 Nm for stable installation.

Applications

  1. Cabinets
  2. Electrical enclosures
  3. Industrial storage units
  4. Machinery panels

Keywords

MS826-2 MS826-8D MS826-15 MS826-7D  tubular cam lock, telescoping cam lock, auto-return spring latch, IP54 rated lock, chrome cam lock, industrial cam lock, enclosure lock, secure cam lock, cabinet lock, high-security cam lock.
