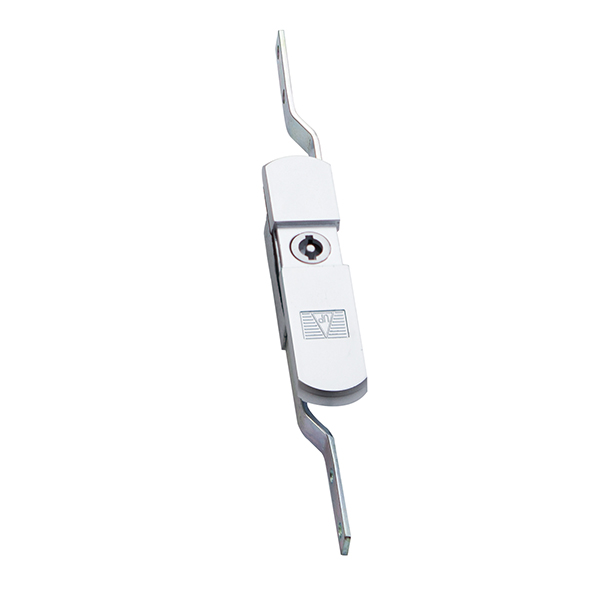

MS820 Multi-Point Latch, Swinghandle, Non-locking or Optional Key Locking, Zinc Alloy & ABS, Silver Finish, Adjustable Grip Range
The MS820 Multi-Point Latch provides secure, adaptable access for industrial cabinets and enclosures. Featuring a robust swinghandle design, this latch allows for easy operation and secure locking with an optional key lock. The latch’s multi-point mechanism ensures enhanced door stability and sealing, making it suitable for applications requiring consistent compression and vibration resistance.
Material:
- Zinc Alloy (Handle and Lock)
- ABS (Faceplate)
- Carbon Steel (Latch Plate)
- PA (Actuator Rods)
Surface Finish:
- Silver Anodized Finish
Color/Appearance:
- Matte Silver Finish
Products Categories
Get A Free Quote
Key Features
- 90° rotation swinghandle for easy access and secure locking
- Optional key locking system for added security (K15-1 key module available)
- Adjustable compression mechanism for varied panel thickness
- Available in multiple locking variants for custom security needs
Specifications
- IP Rating: Not applicable
- Dimensions:
- Handle Size: 90mm (height) x 25mm (width)
- Adjustable Grip Range: 1-6mm
- Performance:
- Maximum Tension Load: ≤9N.m for MS820; ≤3N.m for MS820-1A
- Static Load: 300N
Applications
- Industrial cabinets
- Telecom enclosures
- Utility panels requiring secure and durable locking solutions
Keywords
Multi-point latch, swinghandle latch, MS820, MS820-1A, zinc alloy latch, adjustable compression latch, secure cabinet lock, silver anodized latch, multi-point locking system
