MS819 Rod Control Latch with Zinc Alloy Base and Carbon Steel Rod
The MS819 Rod Control Latch is designed for secure panel and door sealing. Its robust zinc alloy construction and ergonomic handle ensure reliable and efficient operation, making it suitable for industrial and commercial applications.
Material:
- Base: Zinc alloy
- Handle: Zinc alloy
- Cover: Zinc alloy
- Drive Rod: Carbon steel
- Additional Components: Zinc-plated steel
Surface Finish and Color/Appearance:
- Black powder-coated finish on the base and handle
- Polished zinc-plated finish on the drive rod
Products Categories
Get A Free Quote
Key Features
- 90° handle rotation mechanism for smooth operation
- Compact design, suitable for tight spaces
- High tensile strength, supporting up to 280N
- Compatible with multiple drive mechanisms (Mb01 and Mb02 series)
- Default compatibility with K040 keys
Specifications
- Handle Bearing Pull Force: ≤280N
- Input Torque: ≤30N·m
- Maximum Static Load: 270N (steel model)

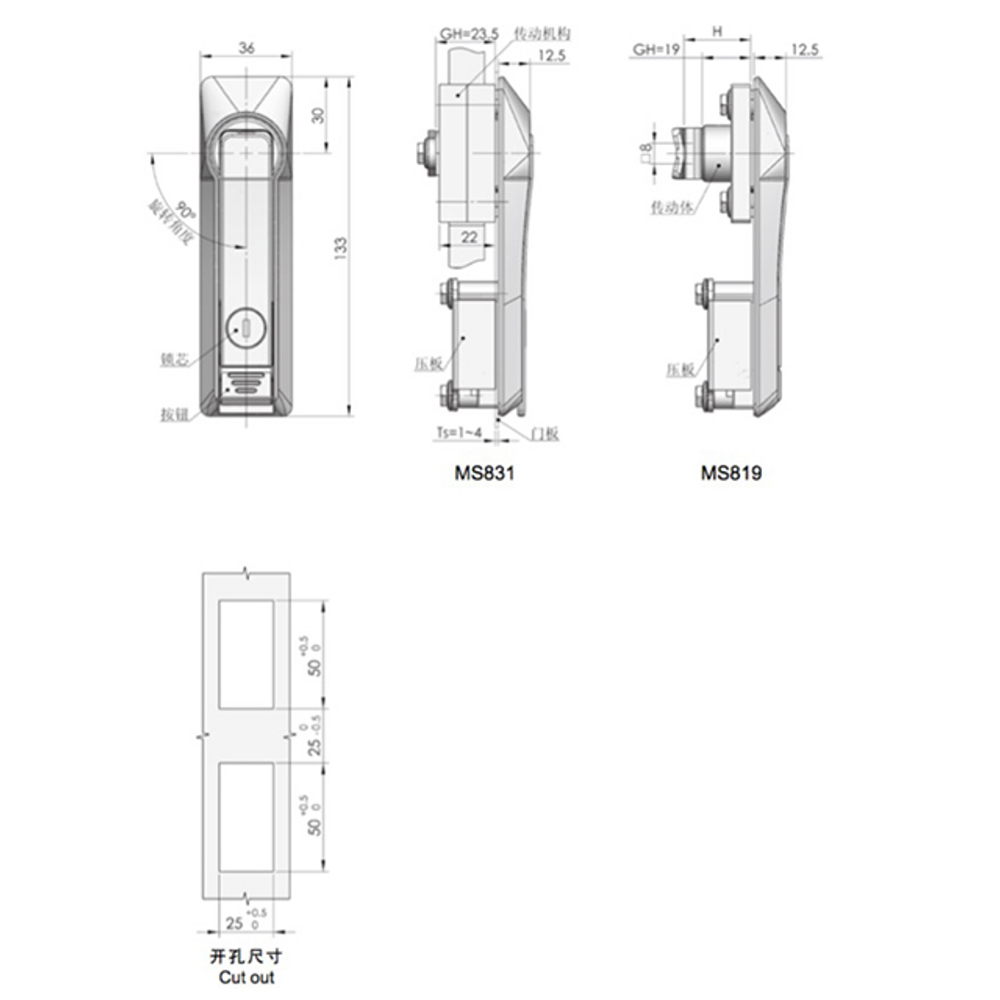

- Handle Dimensions: 36mm width x 133mm length
- Cutout Dimensions: Two slots, each 50mm x 25mm
Applications
- Industrial panels and enclosures
- Server racks
- Commercial storage units
- Transportation equipment
Keywords
MS819, Rod Control Latch, Zinc Alloy Handle, Carbon Steel Rod, Industrial Latch, Multi-point Locking Mechanism
