MS817 Series Cam Latches – Zinc Alloy, Adjustable and Fixed Options, 90° Rotation, Black Coating
The MS817 series cam latches offer versatile and reliable locking solutions for industrial and commercial applications. This series includes both fixed and adjustable models, ensuring compatibility with varying panel thicknesses. Featuring a 90° rotational locking mechanism, the latches provide smooth and secure operation. Built from robust zinc alloy and steel components, the MS817 series ensures long-lasting durability. The black-coated finish enhances corrosion resistance while delivering a sleek and professional appearance. Suitable for machinery panels, enclosures, and control cabinets.
Material:
- Base and Lock Core: Zinc alloy
- Cam: Carbon steel
- Optional Adjustable Cam: Steel (S1M33Y00002, TS = 5)
Surface Finish and Appearance:
- Base: Black coating for corrosion resistance and aesthetic appeal.
- Lock Core: Bright chrome-plated steel for enhanced durability.
Products Categories
Get A Free Quote
Key Features
- Fixed and Adjustable Options: Models available for various panel thicknesses (TS = 5 for adjustable models).
- 90° Rotational Locking Mechanism: Smooth and reliable operation for opening or securing access points.
- Sturdy Construction: High-strength materials ensure long-term reliability under demanding conditions.
- Customizable Key Systems: Compatible with K15 series key systems.
Specifications
- Max Static Load Capacity: 190 N
- Max Input Torque: 6 N·m
- Recommended Tightening Torque for Fixed Nut: 20 N·m
- Panel Thickness Fit: Adjustable up to TS = 5 mm

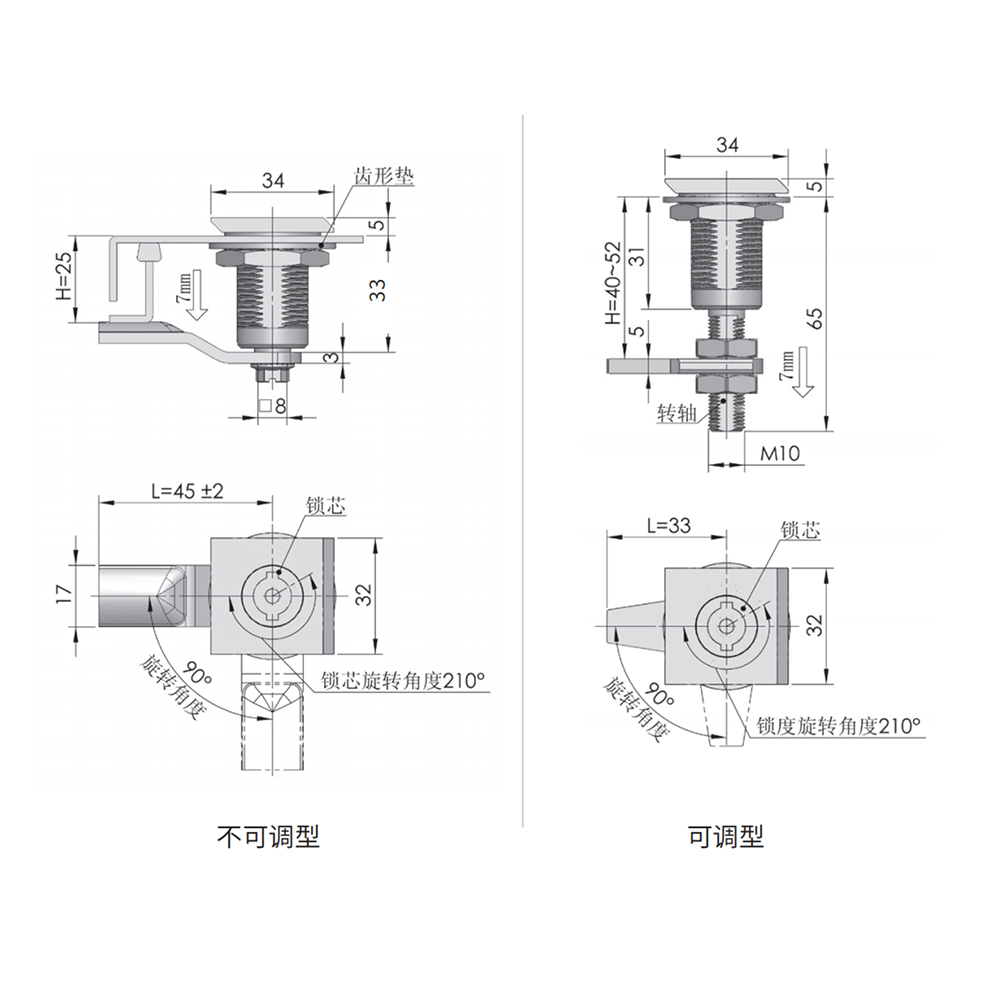

- Latch Dimensions:
- Fixed cam: Length 45 ± 2 mm
- Adjustable cam: Length 33 mm
- Cut-Out Dimensions: Standard cut-out for easy installation.
Applications
- deal for industrial equipment, control panels, machinery access doors, and electrical enclosures.
Keywords
MS817 latch, MS817 adjustable cam lock, black-coated cam latch, 90° rotation, zinc alloy locking mechanism, industrial panel lock.
