MS816-1E-1/MS816-1E-2 T-Handle Lock – 200° Rotation, High Durability, and Adjustable Shaft
The MS816-1E-1/MS816-1E-2 T-handle cam lock is a robust and ergonomic locking solution, featuring a 200° rotational mechanism for flexible operation. The lock’s front 120° rotation allows for shaft extension/retraction of 7 mm, while the rear 80° rotation ensures secure locking/unlocking. Designed with a matte black finish and a durable zinc alloy base, this lock is ideal for industrial equipment, enclosures, and storage cabinets. It provides long-lasting performance in demanding environments.
Material:
- Base and Handle: Zinc alloy with black matte surface finish
- Cam and Shaft: Carbon steel with hardened finish
-
Surface Finish and Appearance:
- Base and Handle: Black matte texture for a modern and corrosion-resistant appearance
- Cam: Hardened steel with a silver finish for enhanced durability
Products Categories
Get A Free Quote
Key Features
- 200° Rotation Mechanism: Combines front 120° rotation for shaft adjustment and rear 80° rotation for locking functionality.
- Adjustable Shaft: Extends/retracts approximately 7 mm to accommodate panel depth variations.
- Ergonomic T-Handle Design: Ensures comfortable grip and intuitive operation.
- Durable Zinc Alloy Construction: Resistant to wear, ensuring long-term reliability.
- Optional Key Compatibility: Works seamlessly with K16 series keys for enhanced security.
Technical Specifications
- Max Static Load Capacity: 300 N
- Recommended Tightening Torque for Nut: 20 N·m

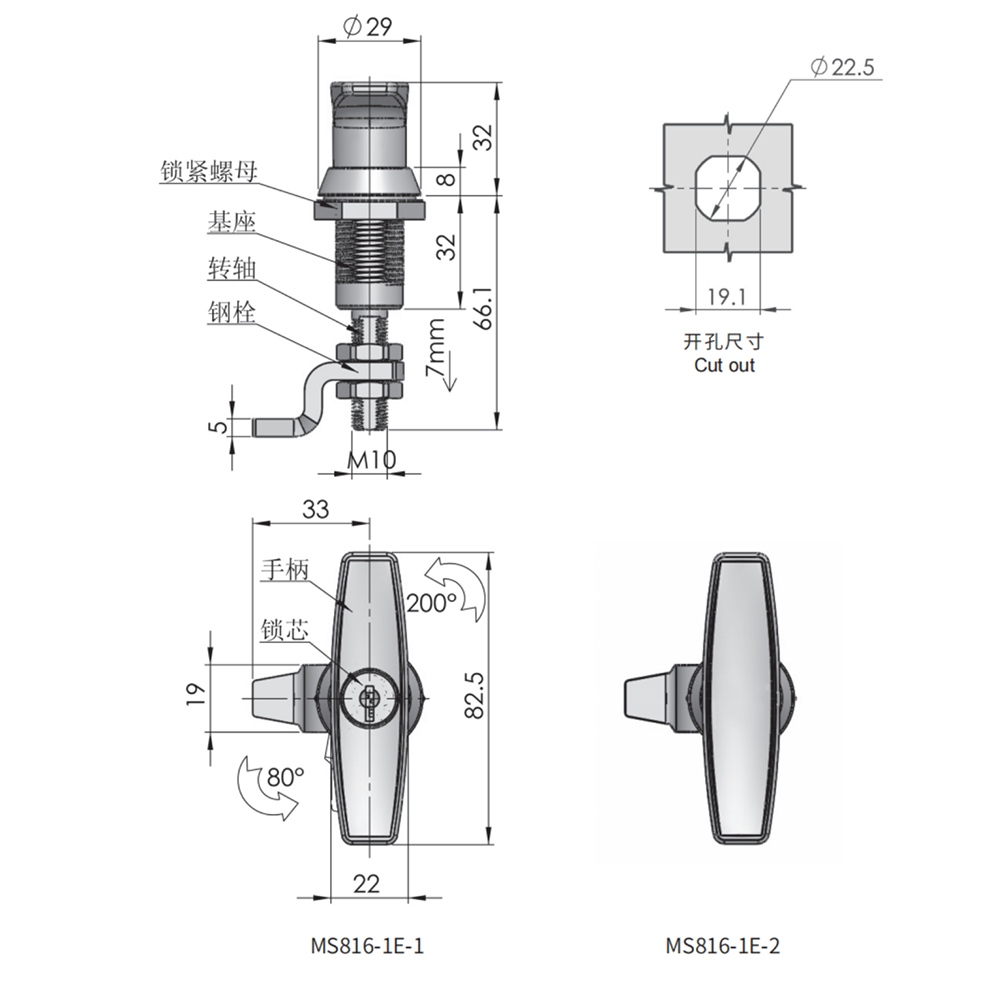

- Cut-Out Dimensions:
- Square: 19.1 x 19.1 mm
- Round: Ø22.5 mm
- Dimensions:
- Handle Length: 82.5 mm
- Overall Height: 66.1 mm
Applications
- Suitable for electrical cabinets, machinery enclosures, industrial equipment, and secure storage solutions.
