MS816-1D-1/MS816-1D-2 Cam Lock with Zinc Alloy Handle – Black Sandblast Finish, 300N Static Load
The MS816-1D series cam lock is a robust solution designed for industrial cabinets and enclosures. Its 90° rotational mechanism ensures secure operation, while the ergonomic zinc alloy handle with a black sandblast finish provides durability and corrosion resistance. Available in two variants: MS816-1D-1 with lock cylinder and MS816-1D-2 without lock cylinder, this cam lock caters to a range of applications, including electrical cabinets, control panels, and storage enclosures. The model supports left-handed opening as a default and is compatible with various cam sizes.
Material:
- Base and Handle: Zinc alloy with black sandblast finish
- Cam and Shaft: Carbon steel with zinc plating
- Lock Cylinder: Steel (Model: K570, default for MS816-1D-1)
-
Surface Finish and Appearance:
- Handle and Base: Black sandblast finish for enhanced aesthetics and corrosion resistance.
- Cam: Zinc-plated steel for durability under demanding conditions.
Products Categories
Get A Free Quote
Key Features
- 90° Rotation Locking Mechanism: Ensures reliable opening and closing operations for industrial applications.
- Black Sandblast Zinc Alloy Handle: Provides a stylish yet durable surface that resists wear and corrosion.
- Optional Lock Cylinder: MS816-1D-1 includes a lock cylinder for added security, while MS816-1D-2 offers a streamlined option without the lock.
- High Static Load Capacity: Withstands up to 300N, ensuring compatibility with heavy-duty enclosures.
- Left-Handed Opening Default: Standardized for left-side operations, with adjustable cam options.
Technical Specifications
- Static Load Capacity: 300N
- Recommended Tightening Torque for Nut: 20 N·m
- Cam Length: Standard and customizable options

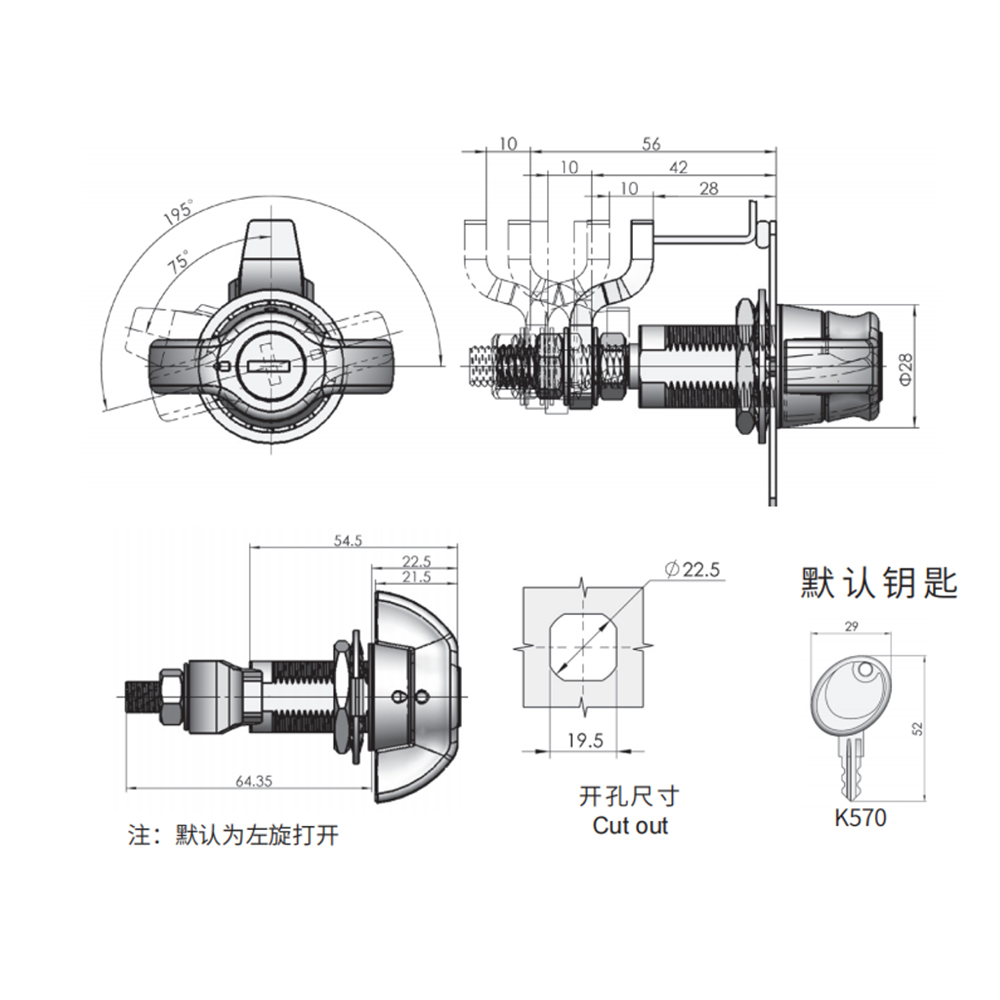

- Cut-Out Dimensions:
- Square: 19.5 x 19.5 mm
- Round: Ø22.5 mm
- Handle Dimensions:
- Overall Height: 64.35 mm
- Handle Diameter: Ø28 mm
Applications
- Suitable for electrical enclosures, control cabinets, machinery panels, and heavy-duty industrial equipment.
Keywords
MS816-1D-1, MS816-1D-2, black handle cam lock, 90° rotation lock, industrial cabinet latch, zinc alloy handle lock.
