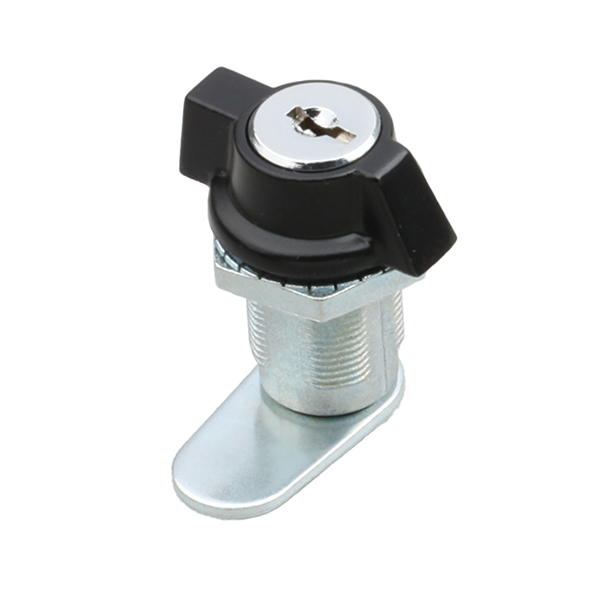

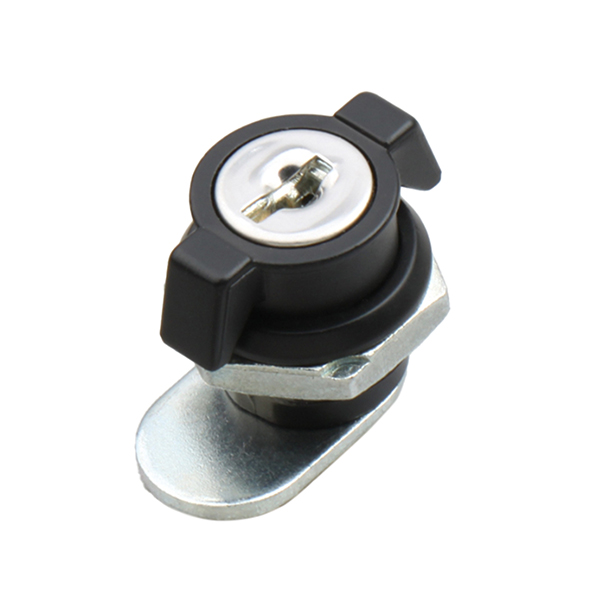

MS815-1 Zinc Alloy 90-Degree T-Handle Lock for Industrial Applications
The MS815-1 T-handle lock is an ergonomic and secure locking solution, ideal for industrial panels and enclosures. Its 90-degree rotational design ensures efficient locking and unlocking while the zinc alloy construction provides durability and corrosion resistance.
Materials and Finish
- Handle and Base: Zinc alloy for strength and corrosion resistance.
- Lock Core: Carbon steel (model: S1B26Y00001) with a matte black coating for durability and aesthetic appeal.
Surface Finish and Appearance
- Black matte coating on the handle and base for a sleek, modern look and added corrosion resistance.
Products Categories
Get A Free Quote
Key Features
- 90-degree rotation mechanism for easy and secure locking or unlocking.
- Compact design suitable for various enclosure systems.
- Zinc alloy build for long-lasting performance.
Technical Specifications
- Maximum Static Load: 100N
- Recommended Screw Torque: 12Nm

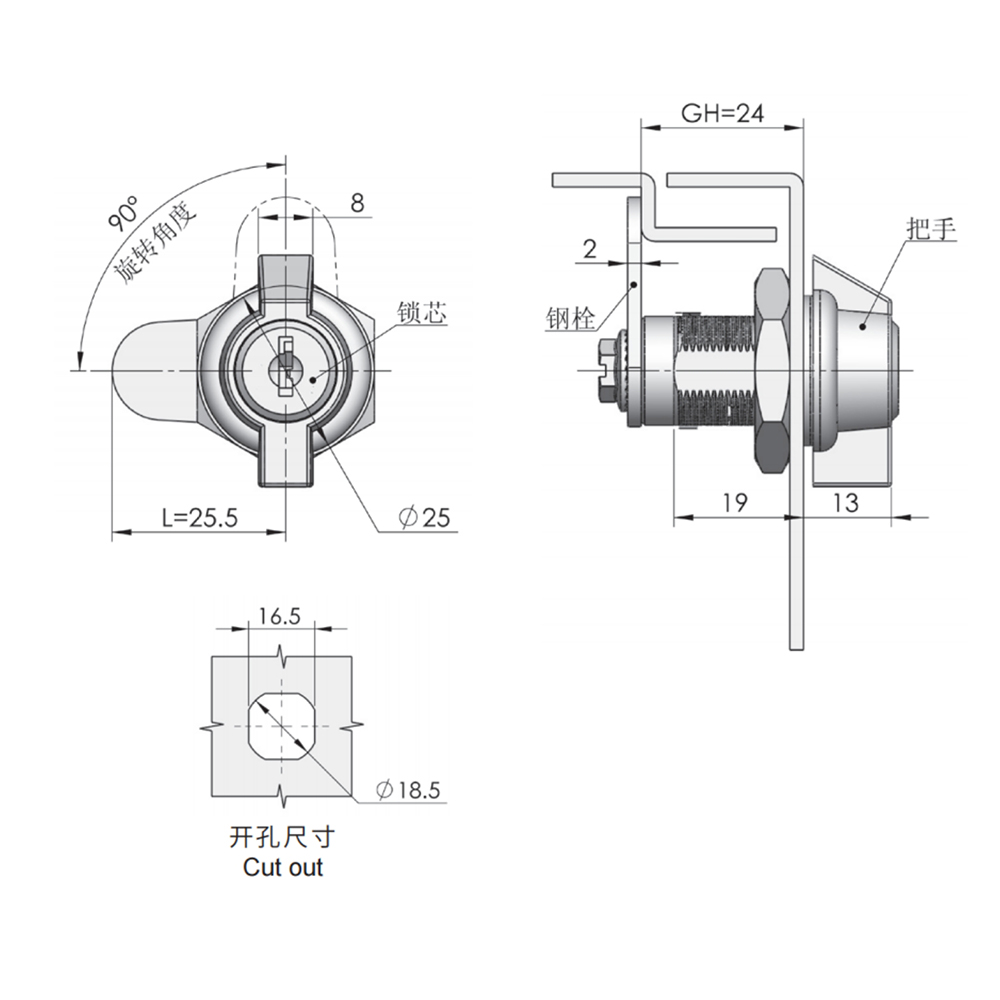

- Dimensions:
- Cutout size: 16.5mm square, Ø18.5mm circular
- Handle diameter: Ø25mm
- Length (L): 25.5mm
- Grip height (GH): 24mm
Applications
- Electrical and industrial enclosures
- Machinery panels
- Storage compartments
- Cabinets and toolboxes
Keywords
MS815-1, MS815-2, MS815-3, T-handle lock, 90-degree lock, zinc alloy lock, industrial panel lock, ergonomic locking solution
