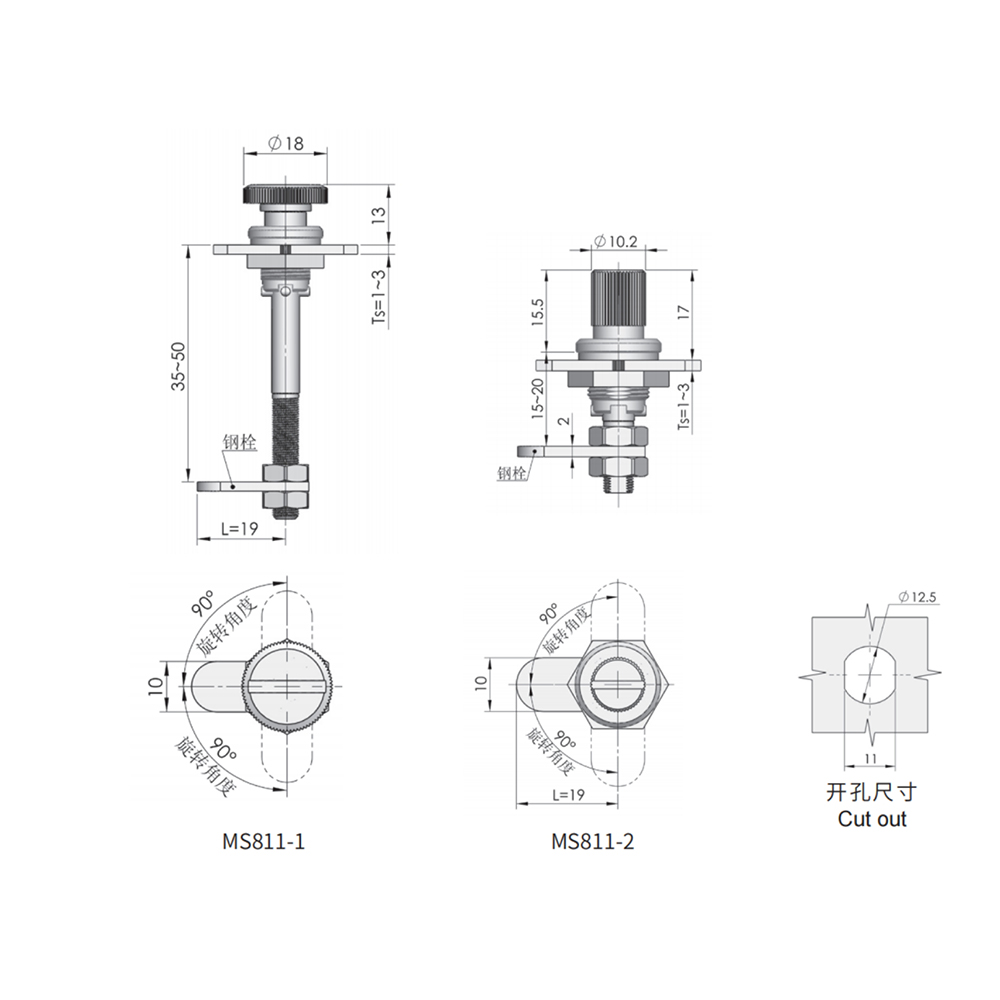

MS811-1/MS811-2 Adjustable Cam Latch – Carbon Steel, 90° Rotation, Chrome-Plated Finish
The MS811-1 and MS811-2 cam latches provide an adjustable and secure locking solution for various industrial applications. These latches feature a 90° rotational locking mechanism that ensures effortless operation for opening or securing access points. Constructed with a robust carbon steel base and finished with a chrome-plated surface, they deliver durability and corrosion resistance. Designed to fit panels with a thickness range of 1–13 mm, the latches are versatile and reliable for control cabinets, machinery access doors, and electrical enclosures.
Material:
- Base and Handle: Carbon steel
- Cam: Steel (Material Code: S1W19Y00002)
Surface Finish and Appearance:
- Chrome-plated for enhanced corrosion resistance and a sleek appearance.
Products Categories
Get A Free Quote
Key Features
- Adjustable Fit: Suitable for panel thicknesses from 1–13 mm.
- 90° Rotational Mechanism: Allows smooth and secure locking/unlocking.
- Robust Construction: Made from high-quality carbon steel for long-term reliability.
- Standardized Cam Material: Steel (S1W19Y00002), ensuring optimal strength.
Specifications
- Max Static Load Capacity: 140 N
- Panel Cut-Out Dimensions: Ø12.5 mm or rectangular 11 x 6 mm
- Cam Length: 19 mm
- Latch Dimensions: Adjustable stem height (TS = 1–13 mm)
Applications
- Ideal for industrial control cabinets, machinery access panels, storage enclosures, and electrical equipment.
Keywords
MS811 adjustable latch, 90° cam rotation, carbon steel locking solution, chrome-plated cam latch, industrial panel lock.MS811-3MS811-1/MS811-2MS811-4
