MS801-1 Multipoint Lock with 90° Rotary Operation, 270N Load Capacity
The MS801-1 multipoint lock is a high-strength locking solution designed for industrial applications, providing secure and reliable performance. Featuring a 90° rotary lock core mechanism and a steel rod with triple-point linkage, it ensures optimal door engagement. The lock body is constructed of carbon steel with a zinc-plated finish for enhanced corrosion resistance, while the ABS plastic sleeve offers additional protection. Compatible with K15-1 keys (sold separately), this lock is ideal for use in electrical enclosures, industrial cabinets, and equipment doors.
Material
- Lock body: Carbon steel
- Rod: Steel (S1B45Y23001, default)
- Sleeve: ABS plastic
Surface Finish and Appearance
- Zinc plating for superior corrosion resistance
- Polished metallic finish
Key Features
- 90° rotary lock core for smooth and secure operation.
- Triple-point linkage system ensures stable door engagement.
- Durable carbon steel construction with a corrosion-resistant zinc-plated finish.
- Designed for compatibility with K15-1 key options.
- Maximum static load capacity: 270N.
Technical Specifications

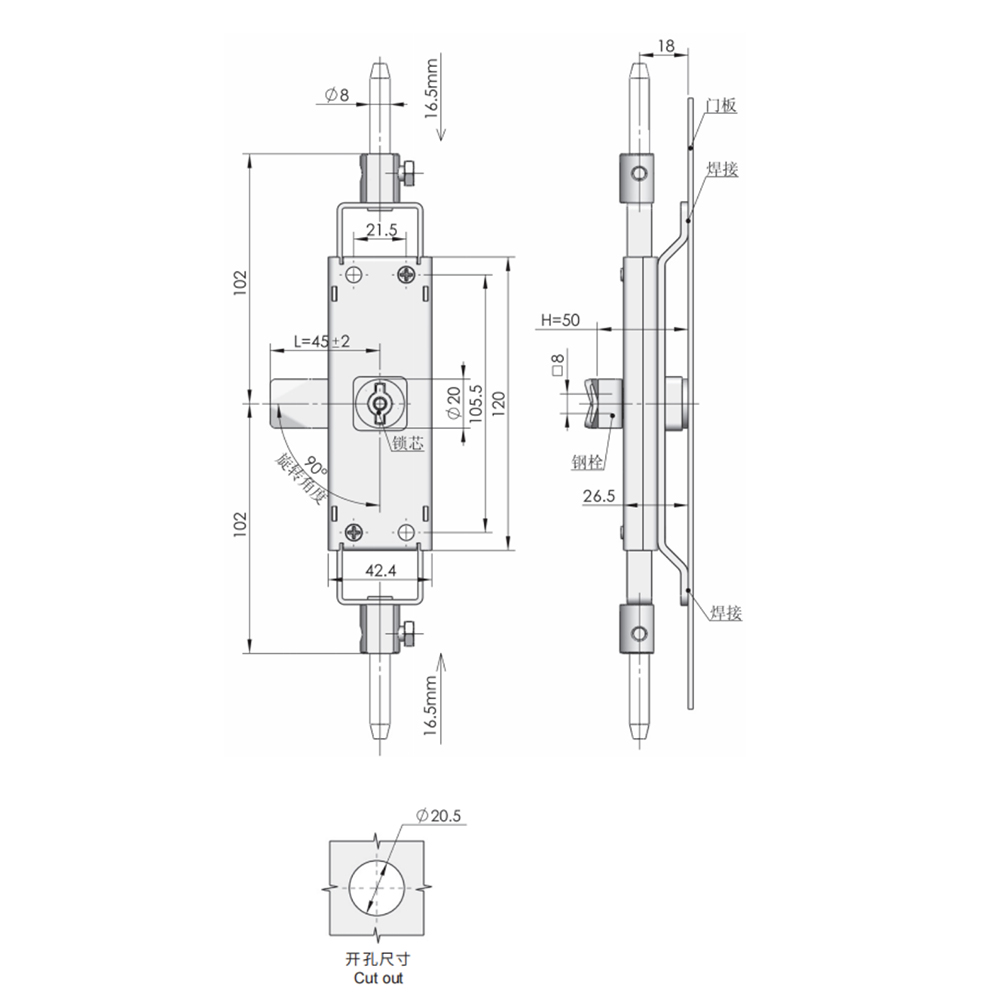

- Overall dimensions: Refer to detailed technical drawing.
- Load rating: 270N.
- Cut-out dimensions: Ø20.5mm square cutout.
- Rod dimensions: 16.5mm diameter, 102mm spacing.
Applications
- Electrical enclosures
- Industrial machinery cabinets
- HVAC access panels
- Secure doors and access panels in transportation and logistics equipment
