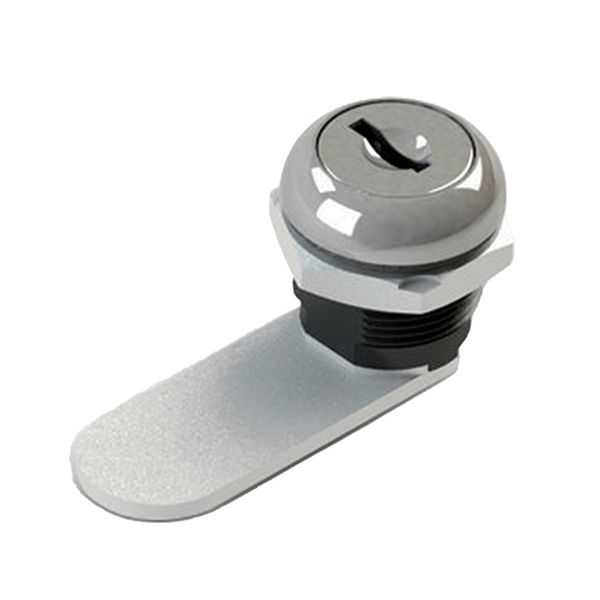

MS775 Compact Cam Latch – 90° Rotation, Mirror-Polished Stainless Steel Cover, Durable Construction
The MS775 cam latch is a versatile and compact locking solution tailored for various industrial and commercial applications. It features a 90° rotational locking mechanism, ensuring reliable and precise operation. Designed with a mirror-polished stainless steel cover, the latch provides superior corrosion resistance and a sleek, professional appearance. With a static load capacity of 180 N, the MS775 is ideal for electrical enclosures, storage cabinets, and machinery panels.
Material:
- Base: Plastic
- Lock Cylinder and Screw Nut: Zinc alloy
- Screws: Carbon steel with white zinc plating
- Lock Cap and Cylinder Cover: Mirror-polished stainless steel
-
Surface Finish and Appearance:
- Lock Cap and Cylinder Cover: Mirror-polished stainless steel for modern aesthetics and excellent corrosion resistance.
- Screws: White zinc-plated finish to ensure durability.
Products Categories
Get A Free Quote
Key Features
- 90° Rotation Locking Mechanism: Ensures smooth and secure locking or unlocking.
- Mirror-Polished Stainless Steel Cover: Provides exceptional corrosion resistance and a professional appearance.
- Compact and Durable Design: Suitable for tight installation spaces while maintaining strength.
- Positioning Piece Included: Allows flexible adjustment of rotation direction during installation.
- Wide Compatibility: Supports various cam options to suit different panel requirements.
Technical Specifications
- Max Static Load Capacity: 180 N
- Recommended Tightening Torque for Nut: 20 N·m

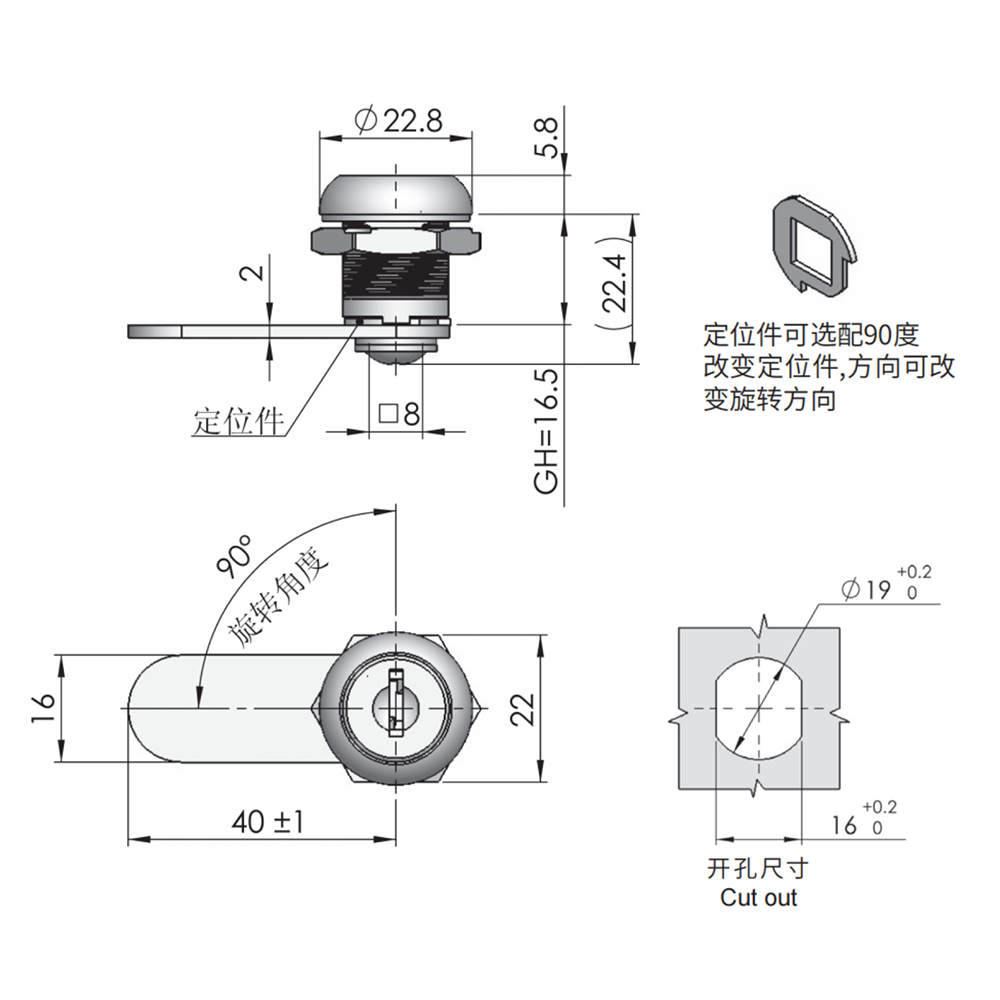

- Cut-Out Dimensions:
- Square: 19 × 16.0 mm
- Round: Ø22.8 mm
- Lock Dimensions:
- Overall Height: 22.4 mm
- Cam Length: Adjustable to meet panel needs (Default: 40 mm)
Applications
- Electrical enclosures
- Industrial control panels
- Storage cabinets
- Equipment housings requiring compact and corrosion-resistant locking solutions
Keywords
MS775 latch, compact cam lock, stainless steel cover, 90° rotational lock, industrial locking solution, adjustable cam latch.
