MS772 Heavy-Duty Cam Latch – 90° Rotation, Spray-Coated Gray Handle, High Load Capacity
The MS772 cam latch is a heavy-duty locking solution designed for high-performance applications in industrial and commercial environments. Featuring a 90° rotational locking mechanism, this latch ensures smooth and secure operation. Its spray-coated gray handle adds durability and resistance to wear, while the sturdy zinc alloy construction guarantees long-term reliability. With a high static load capacity of 970 N, the MS772 is ideal for enclosures, machinery panels, and control cabinets demanding exceptional strength and durability.
Material:
- Base and Handle: Zinc alloy with spray coating
- Cam: Carbon steel (Material Code: S1B4502, Default Type: T = 4)
- Components: Steel tongue and hexagonal nut
-
Surface Finish and Appearance:
- Handle and Base: Spray-coated in a sleek gray finish for modern aesthetics and corrosion resistance.
- Cam: Hardened steel with a protective zinc coating for enhanced durability.
Products Categories
Get A Free Quote
Key Features
- 90° Rotation Locking Mechanism: Allows secure and efficient opening and closing operations.
- Spray-Coated Gray Handle: Provides excellent grip and ensures resistance to wear and environmental factors.
- High Load Capacity: Withstands a maximum static load of 970 N, suitable for demanding environments.
- Flexible Cam Options: Compatible with various cam configurations, including adjustable options (e.g., 8×8 mm).
- Easy Installation: Designed for standard panel cut-outs, simplifying the installation process.
Technical Specifications
- Max Static Load Capacity: 970 N
- Recommended Tightening Torque for Nut: 20 N·m
- Cam Length: Adjustable to panel requirements (Default: T = 4 mm)

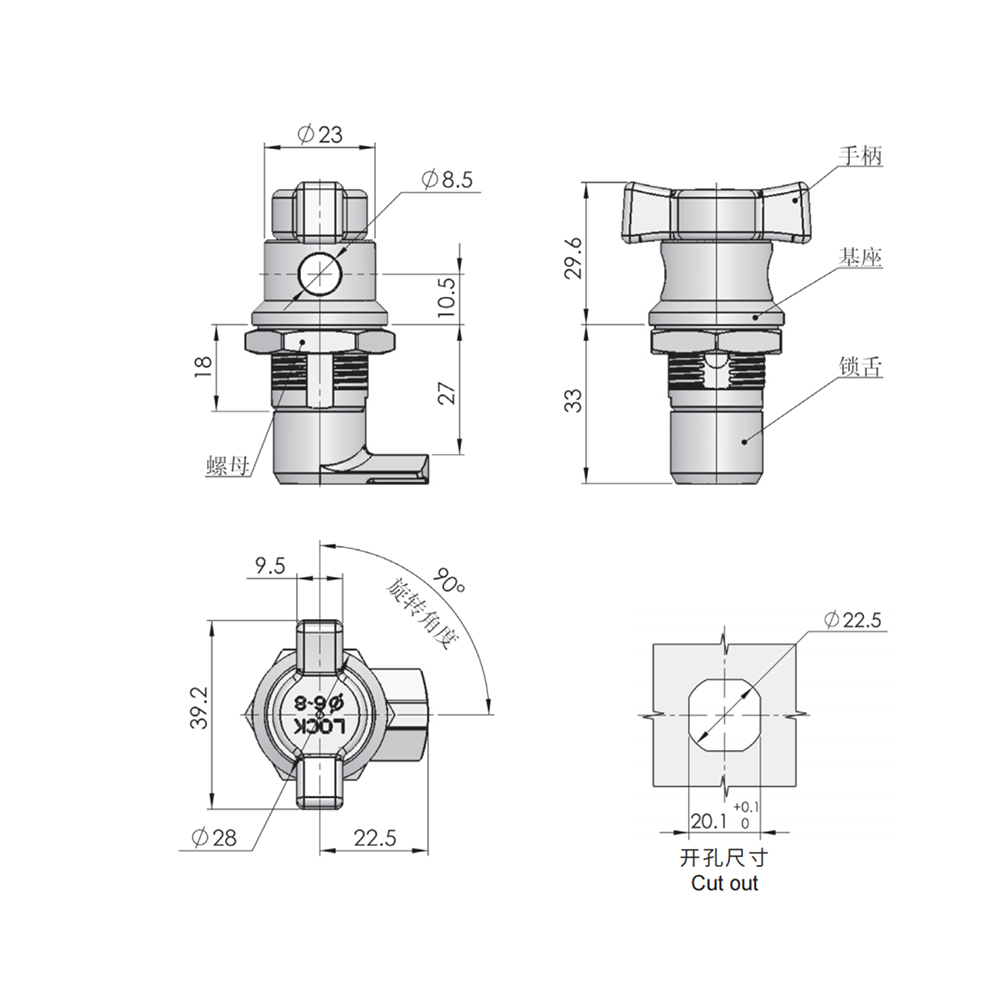

- Cut-Out Dimensions:
- Square: 20.1 x 20.1 mm
- Round: Ø22.5 mm
- Latch Dimensions:
- Handle Width: Ø28 mm
- Overall Height: 39.2 mm
Applications
- Ideal for industrial enclosures, electrical control cabinets, machinery housings, and heavy-duty storage solutions.
Keywords
MS772 latch, heavy-duty cam lock, spray-coated handle, durable locking solution, 90° rotational lock.
