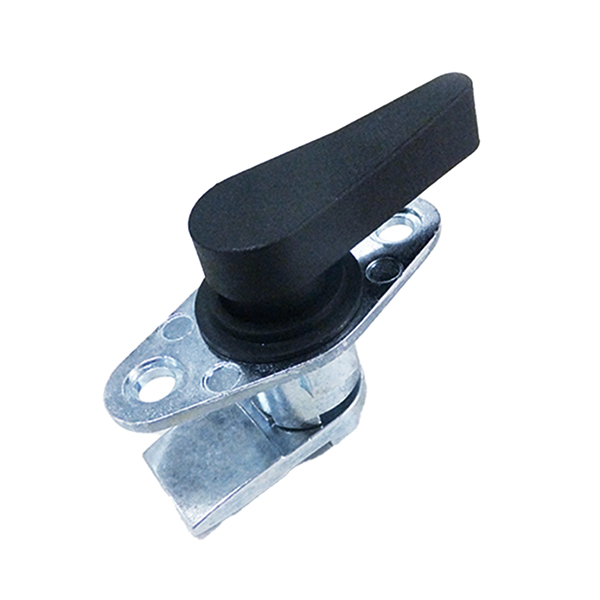

MS769-1/MS769-2 Zinc-Plated Steel Double-Ear Cam Lock – High Load Capacity for Industrial Applications
The MS769 series, including models MS769-1 and MS769-2, offers a robust and reliable cam lock solution. Designed with durable materials and high-quality surface finishes, this series is ideal for industrial equipment, electrical cabinets, vending machines, and more.
Materials and Finish:
- Base: Zinc alloy
- Lock cylinder: Stainless steel
- Steel cam and screws: Carbon steel, zinc-plated with white finish
Products Categories
Get A Free Quote
Key Features
- Double-ear mounting design for quick and secure installation
- 90° rotation for opening and closing, ensuring safe and dependable locking
- Suitable for thicker panels with a maximum static load capacity of 270N

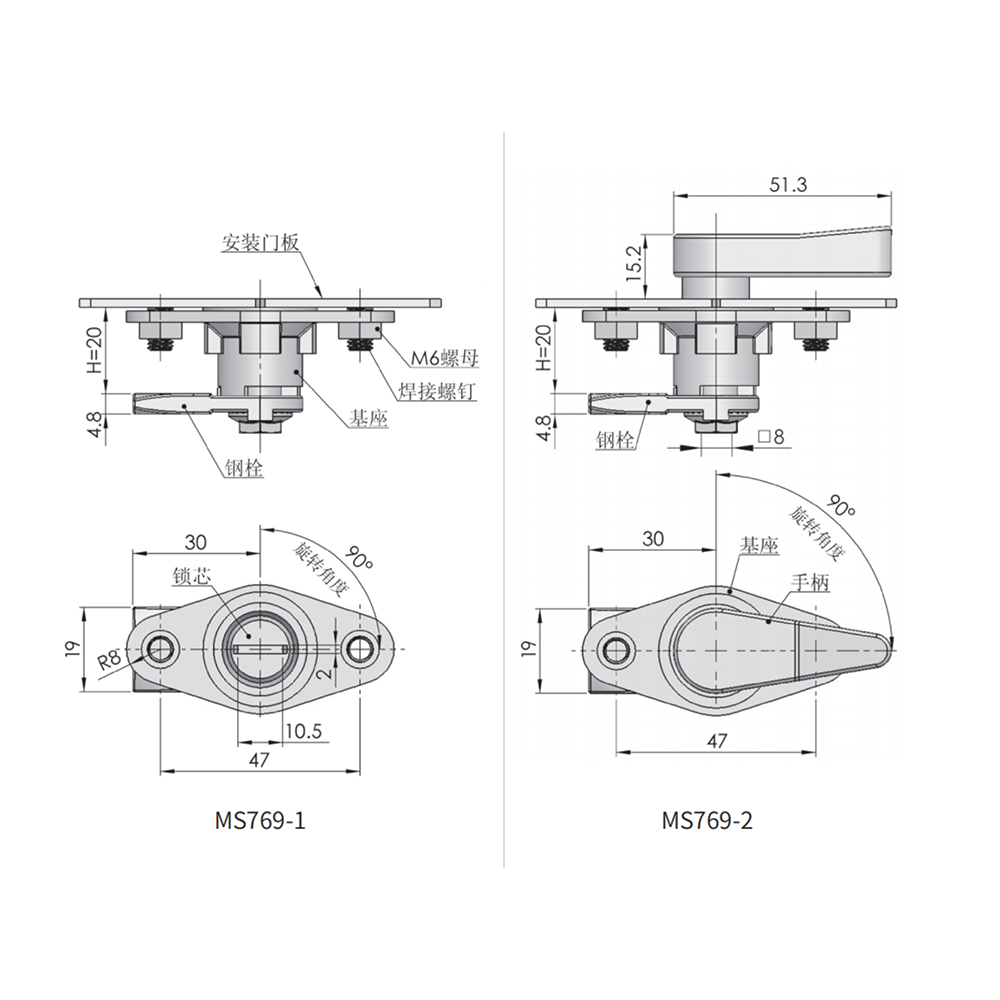

Technical Specifications
- Mounting Hole Size: Standard M6 nut fastening
- Maximum Static Load: 270N
- Recommended Torque: 20N.m
- Overall Dimensions: 47mm x 30mm
Applications
- Industrial equipment panels
- Vending machines
- Electrical enclosures and control cabinets
Keywords
MS769-1, MS769-2, cam lock, zinc-plated steel lock, industrial cabinet lock, high-load lock
