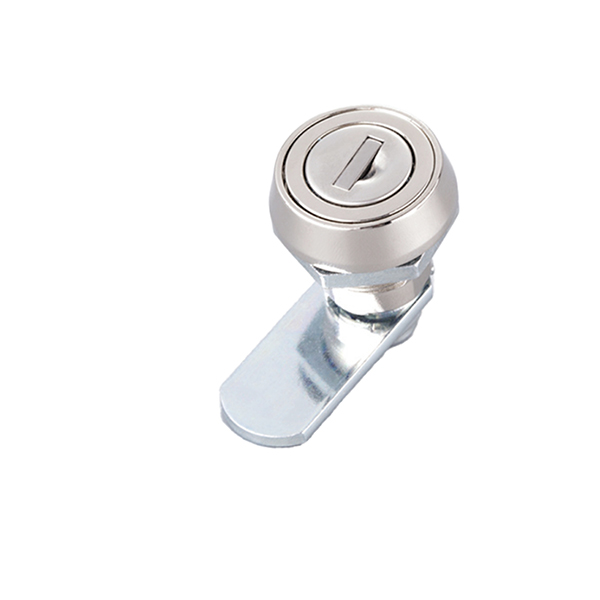

MS760 Cam Lock, 90° Rotation, Zinc Alloy Construction, 230N Load Capacity
The MS760 cam lock features a secure 90° rotation mechanism for efficient locking and unlocking. With a robust zinc alloy base and a corrosion-resistant zinc-plated steel cam, this lock ensures reliable performance in demanding environments. The MS760 series includes the MS760 and MS760-5A models, providing flexibility for different application needs:
- MS760: Features a polished chrome finish, suitable for general industrial and furniture applications.
- MS760-5A: Offers a stainless steel finish with additional durability for harsher environments.
Material:
- Base and Lock Cylinder: Zinc alloy.
- Cam Lever: Zinc-plated steel.
-
Surface Finish and Color:
- MS760: Polished bright chrome finish for durability and aesthetic appeal.
- MS760-5A: Stainless steel finish for added corrosion resistance and durability.
Products Categories
Get A Free Quote
Key Features
- 90° rotation for secure locking and unlocking.
- Suitable for a wide range of industrial, furniture, and electrical panel applications.
- Static load capacity of 230N.
- Smooth operation with a recommended tightening torque of 20N·m.
- Compatible with K160 series keys (default configuration).

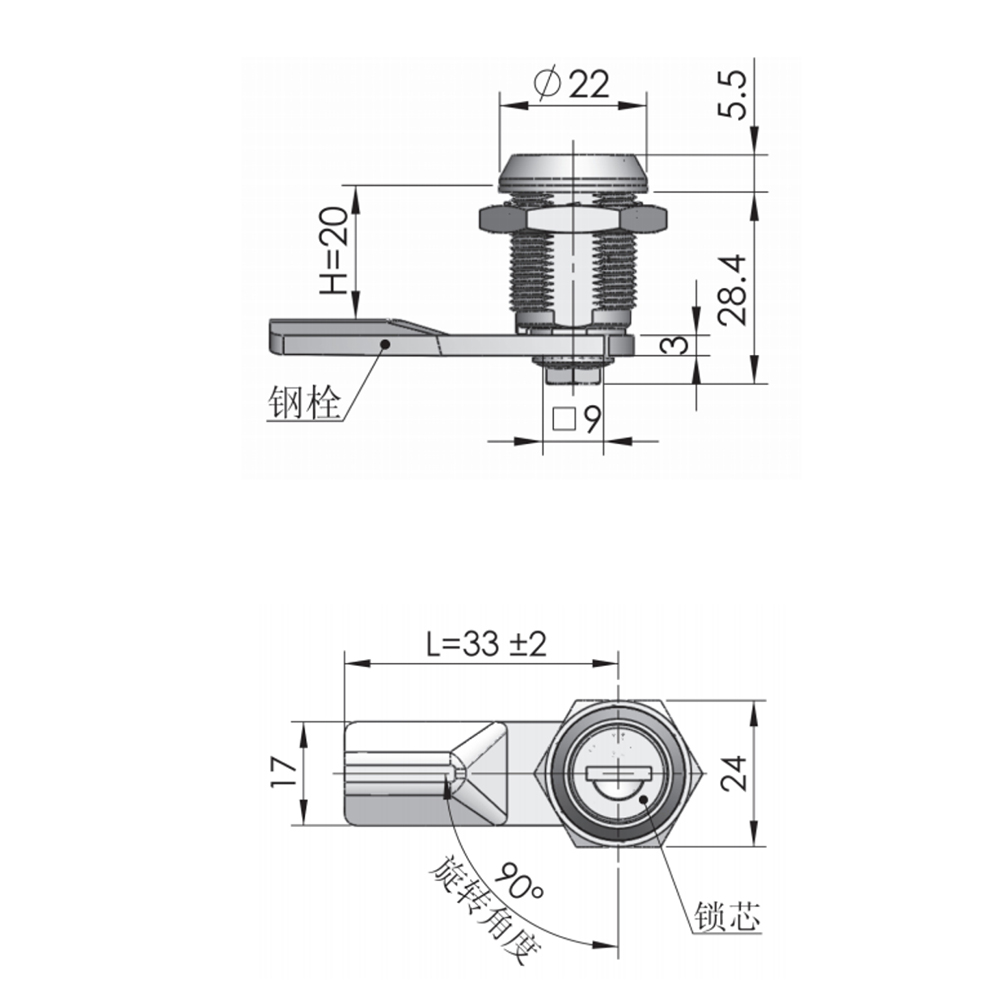

Technical Specifications
- Static Load Capacity: 230N.
- Maximum Input Torque: 9N·m.
- Recommended Nut Tightening Torque: 20N·m.
- Cutout Dimensions: Ø22.5mm diameter x 20.1mm square.
- Body Height (H): 28.4mm.
- Cam Lever Length (L): 33mm ± 2mm.
Typical Applications
- MS760: Ideal for general industrial equipment, furniture locks, and electrical panel enclosures.
- MS760-5A: Suitable for environments requiring extra durability and corrosion resistance, such as outdoor or industrial settings.
Keywords
MS760, MS760-5A, cam lock, 90° rotation lock, industrial lock, furniture lock, secure enclosure lock, zinc alloy cam lock, stainless steel cam lock.
