MS755 Zinc Alloy 90-Degree Cam Lock for Panel and Cabinet Security
The MS755 cam lock is a compact and efficient locking solution, designed for secure panel and cabinet applications. With a 90-degree rotation mechanism, it provides easy and reliable locking or unlocking for industrial enclosures. This durable and corrosion-resistant lock is well-suited for environments requiring robust security.
Materials and Finish
- Lock Body: Zinc alloy for lightweight durability.
- Base: Zinc alloy with a black matte finish for enhanced corrosion resistance.
- Shaft: Carbon steel for structural integrity.
Surface Finish and Appearance
- Black matte finish on the lock and base for an anti-corrosive, sleek appearance.
Products Categories
Get A Free Quote
Key Features
- 90-degree rotational mechanism for smooth locking and unlocking.
- High-strength zinc alloy construction for durability and reliability.
- Compact design for easy integration into various panel and cabinet systems.
Technical Specifications
- Maximum Static Load: 200N
- Maximum Input Torque: 9Nm
- Recommended Screw Torque: 20Nm

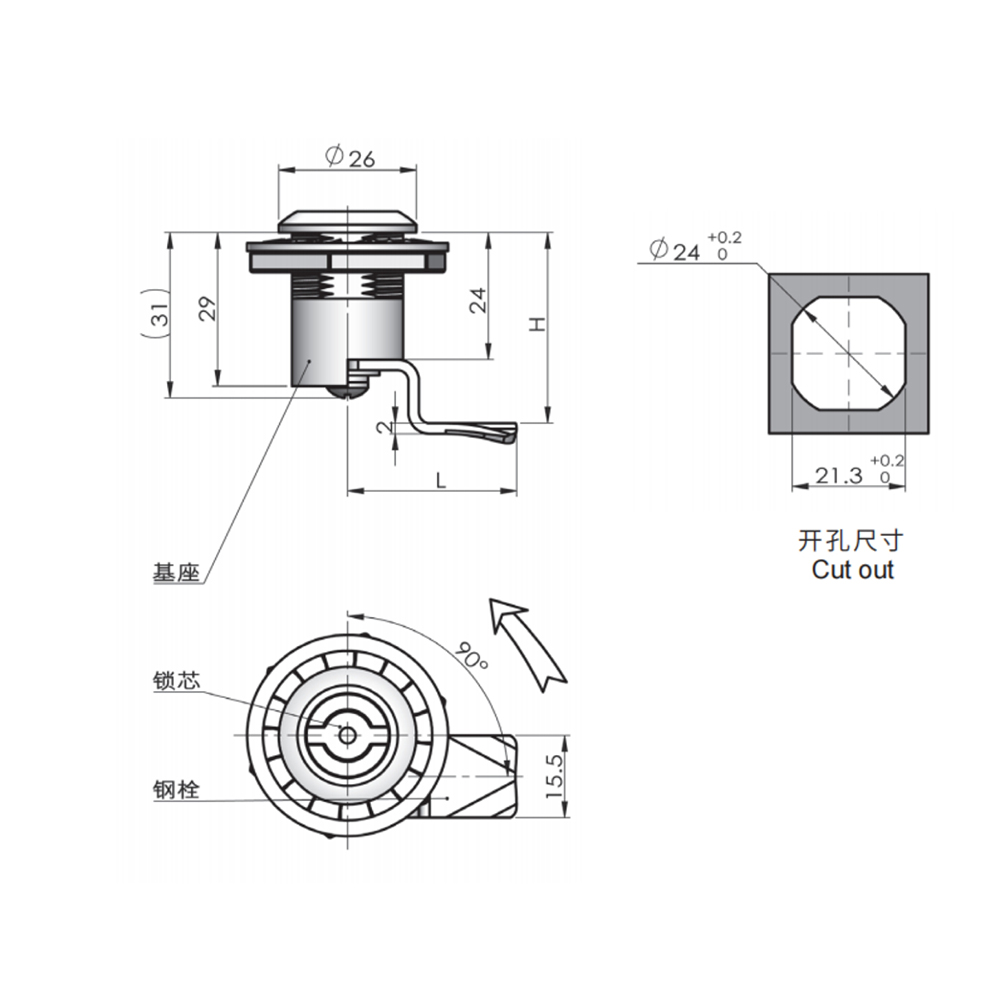

- Dimensions:
- Cutout size: 21.3mm ± 0.2mm square, Ø24mm circular
- Base diameter: Ø26mm
- Available lengths (L): 32mm and 34mm
- Available heights (H): 36mm and 43mm
Applications
- Industrial control panels
- Electrical enclosures
- Machinery cabinets
- Toolboxes and storage compartments
Available Models
- Model 1:
- Height (H): 36mm
- Length (L): 32mm
- Shaft Model: S1A32Y12001
- Assembly Part Number: MS755Z1BT01005
- Model 2:
- Height (H): 43mm
- Length (L): 34mm
- Shaft Model: S1A34Y19001
- Assembly Part Number: MS755Z1BT01006
Keywords
MS755 cam lock, 90-degree cam lock, zinc alloy lock, panel security lock, industrial enclosure lock
