MS745-4 Quarter-Turn Lock with Plastic Base, 90° Rotation, and Optional Pull Handle
The MS745-4 quarter-turn lock is designed with an ergonomic plastic base and a 90° rotation mechanism for efficient and reliable locking. Featuring an internal positioning structure and optional pull handle, this lock offers enhanced usability and versatility. It is ideal for use in industrial enclosures, machinery panels, and equipment doors.
Material:
- Base: Plastic (PA).
- Lock Cylinder and Stop Ring: Stainless steel.
- Screw Nut and Screws: Steel.
-
Surface Finish and Color:
- Base: Matte black finish for a modern appearance.
- Lock Cylinder: Brushed steel finish for corrosion resistance and a polished look.
Products Categories
Get A Free Quote
Key Features
- 90° rotation for secure locking and unlocking.
- Internal positioning mechanism providing tactile resistance for stability.
- Ergonomic plastic base ensures ease of use and a lightweight design.
- Compatible with K170 keys (default configuration).
- Optional pull handle (HP003) available for enhanced functionality.

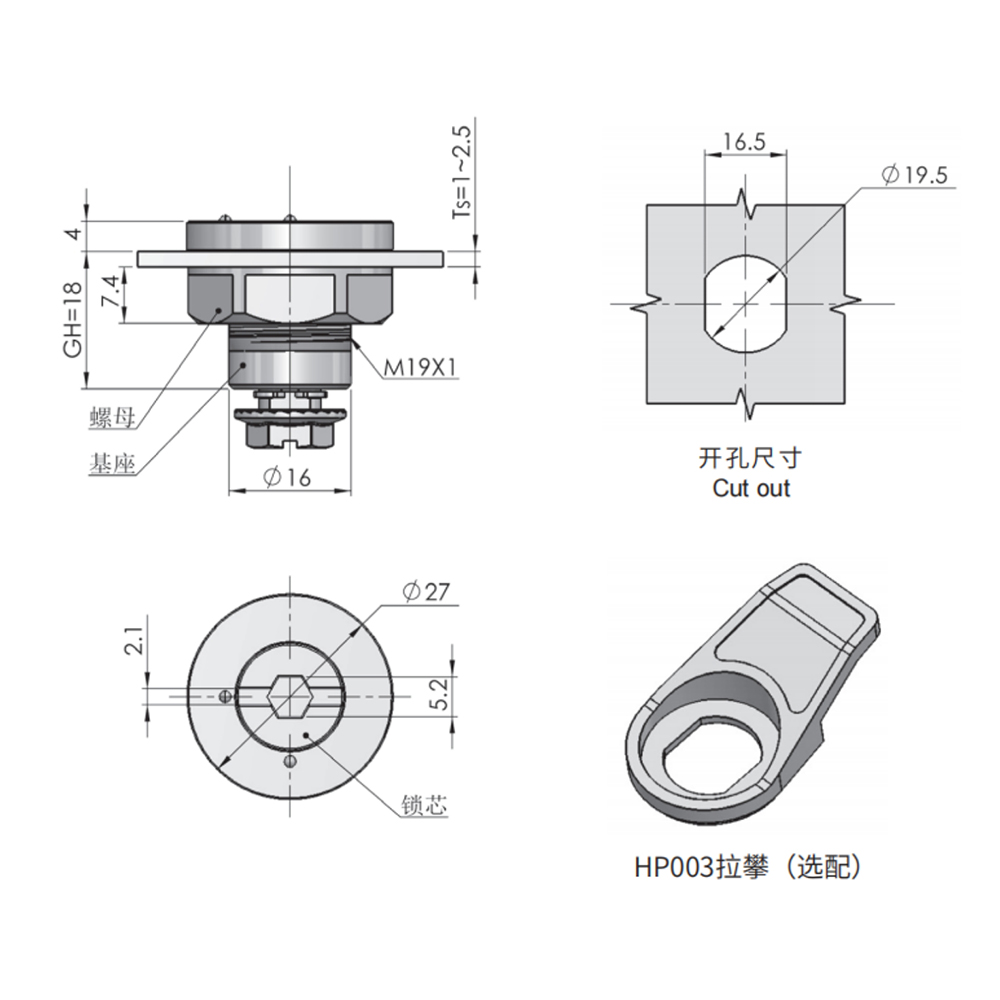

Specifications
- Static Load Capacity: 100N.
- Recommended Nut Tightening Torque: 20N·m.
- Cutout Dimensions: 19.5mm diameter x 16.5mm square.
- Thread Size (TS): M19 × 1.
- Base Diameter: 27mm.
Typical Applications
- Industrial machinery and equipment enclosures.
- Electrical and electronic panel locks.
- Furniture locking systems for cabinets and doors.
- Vehicle or marine storage compartments requiring secure closure.
