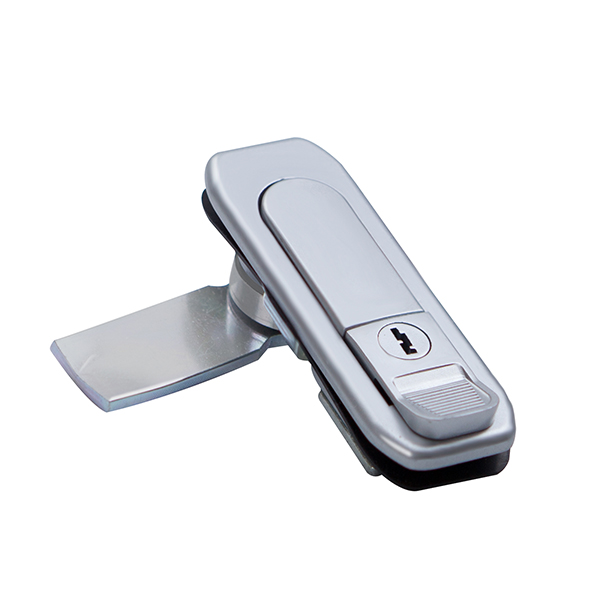

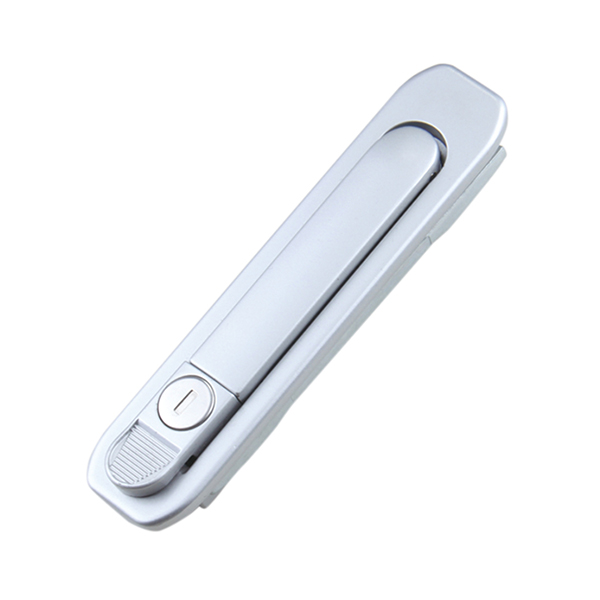

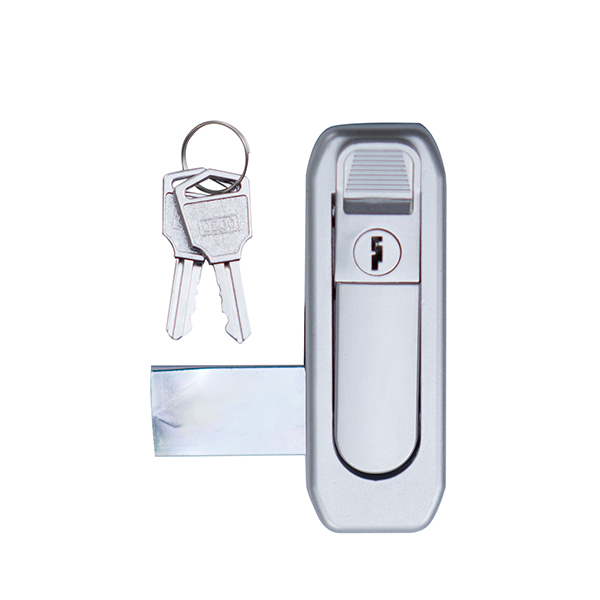

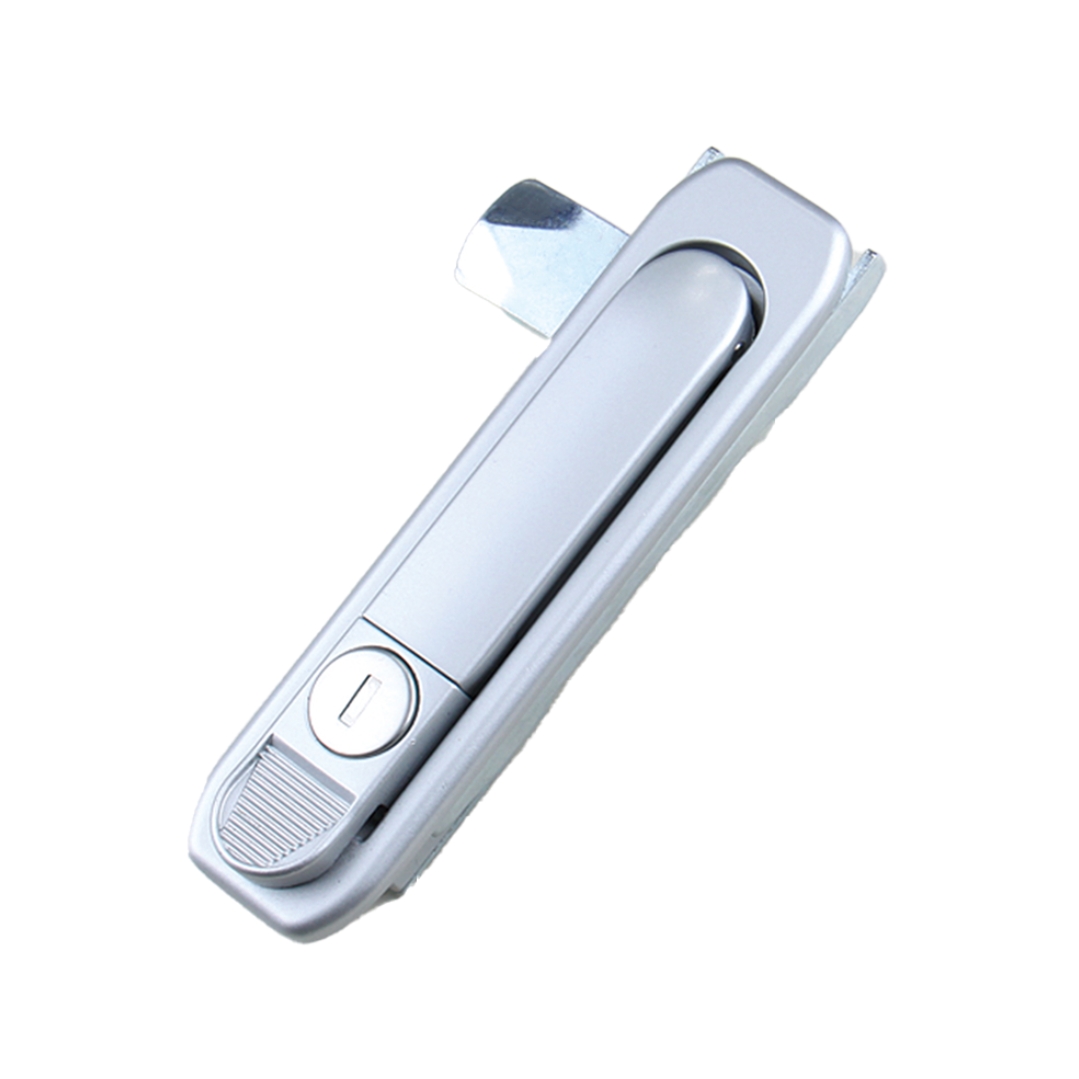

MS738 Swinghandle Latch, Quick-Release, Key Locking, Single or Multi-Point Locking, Zinc Alloy, Nano-Matte Finish, Adjustable for 1-3 Point Locking
The MS738 swinghandle latch series is engineered for efficient, secure access in industrial and utility enclosures. These quick-release latches are designed with a high-quality swinghandle mechanism, offering single or multi-point locking options for enhanced security. Made from durable zinc alloy with a nano-matte finish, the MS738 series provides reliable performance in a variety of settings. These latches are available in both keyed and non-keyed versions, catering to specific security requirements. The adaptable design supports both single-point and multi-point locking configurations, providing customizable access solutions.
Material:
Zinc alloy base and handle, carbon steel latch plate, steel pin
Surface Finish:
Nano-matte finish, with optional black or silver spray coating
Color/Appearance:
Standard finish in silver; optional customization in black
Key Features
- Quick-release swinghandle design for convenient and secure access
- Versatile locking options, with both single-point and multi-point configurations
- High-strength zinc alloy construction for durability and corrosion resistance
- Available with or without key lock, offering adaptable security solutions
Specifications
- IP Rating: IP54 (dust and water-resistant, non-sealed)

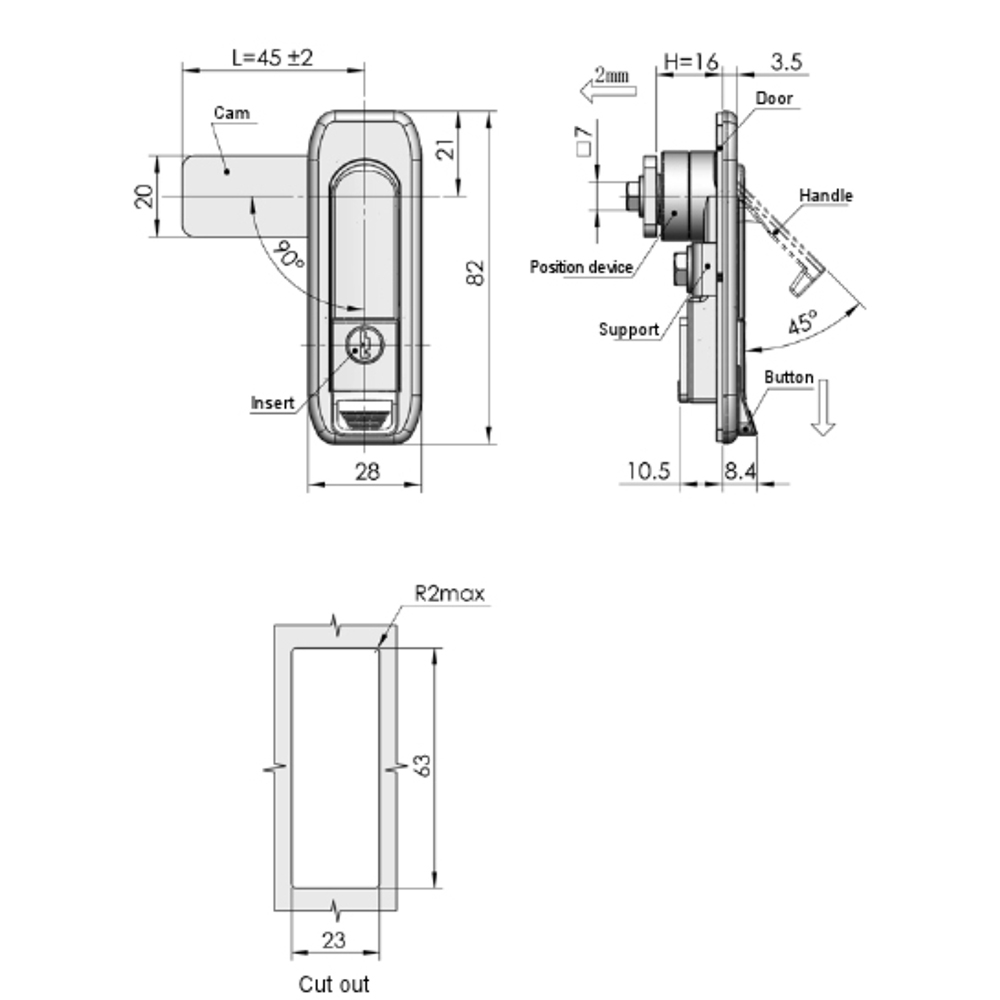

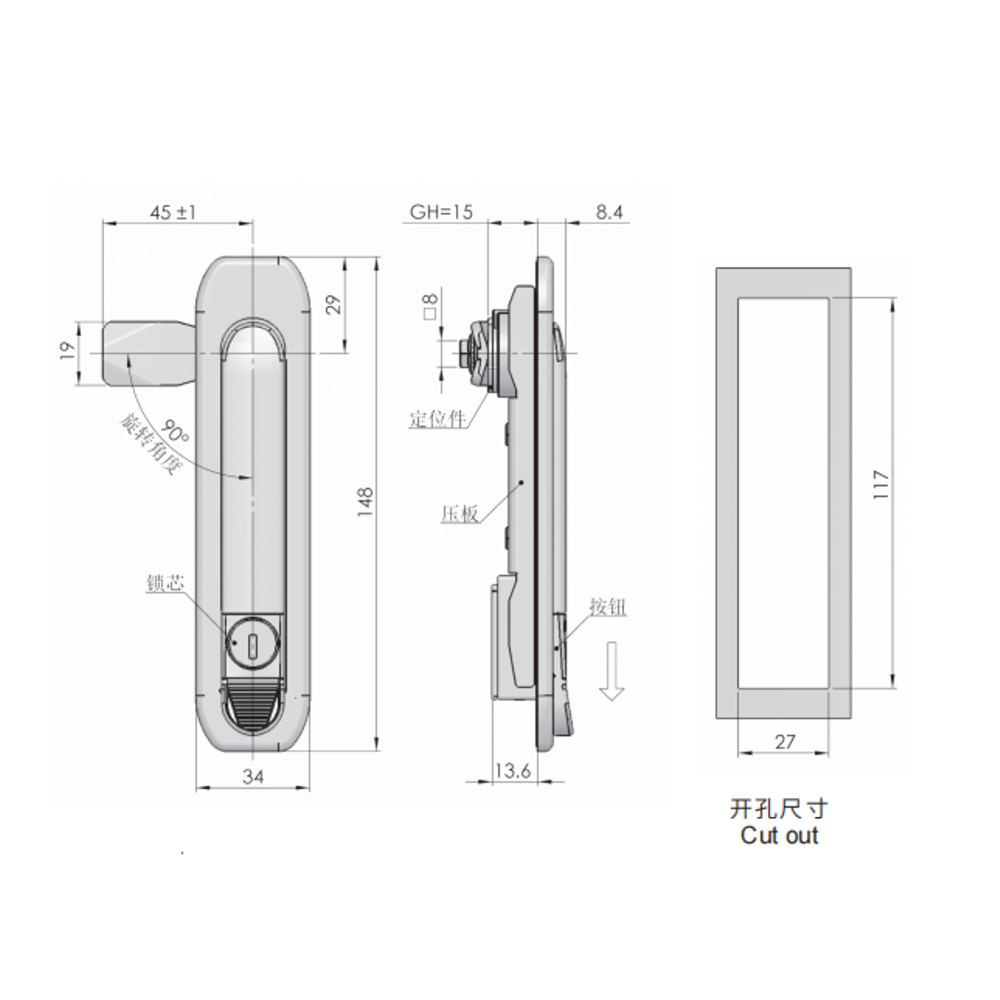

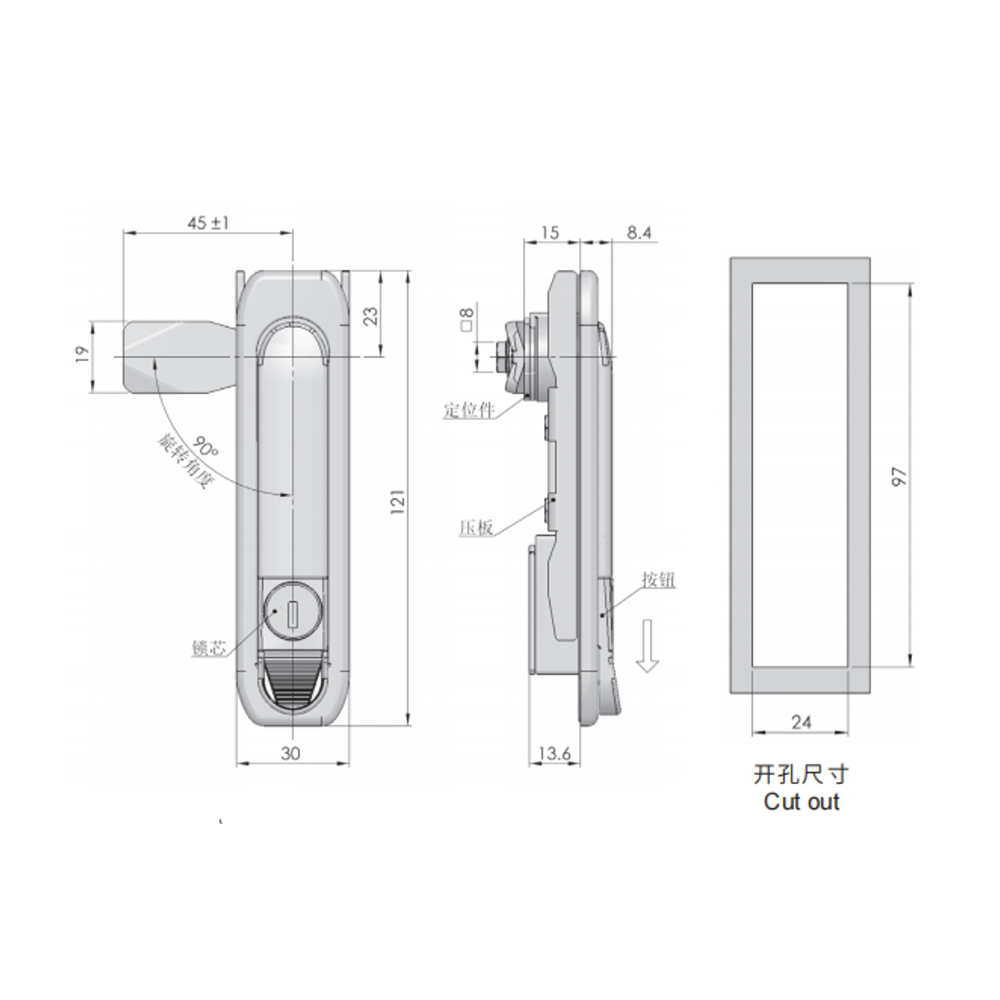

- Dimensions:
- Handle Length: 130mm (MS738-1A), 120mm (MS738-2A)
- Adjustable range: Accommodates door thickness from 1-5mm
- Compatible Door Thickness: 1-5mm
- Load Capacity:
- Tensile strength: ≤250N for MS738
- Torque capacity: ≤14N·m
- Maximum Static Load: 270N
Applications
- Industrial cabinets
- Utility enclosures
- Control panels requiring secure, adjustable access
