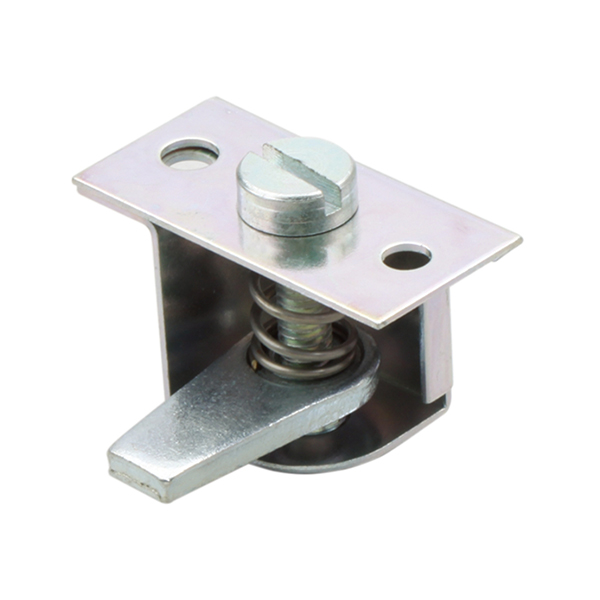

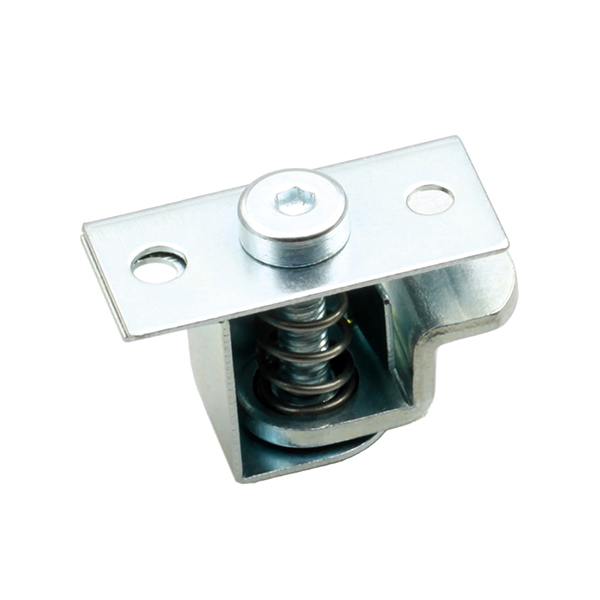

The MS735 Series Adjustable Quarter-Turn Latch provides a secure and flexible locking solution for panel doors, cabinets, and enclosures. Engineered with a spring-loaded mechanism, it allows for 90-degree rotation to enable easy opening and closing, combined with a secure locking function. This latch is ideal for environments demanding reliable performance and compact design.

Material:

Constructed from high-quality carbon steel, ensuring robust durability.

Surface Finish and Appearance:

The latch features a zinc-plated surface treatment, offering enhanced corrosion resistance and a sleek silver finish for a professional appearance.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Key Features

  • 90-Degree Rotation: Smooth operation for secure locking and unlocking.
  • Spring-Loaded Mechanism: Ensures consistent pressure for reliable functionality.
  • Compact Design: Saves space, making it suitable for various industrial and residential applications.
  • Easy Installation: Two mounting holes for quick and stable attachment.

Technical Specifications

MS735 Series Adjustable Quarter-Turn Latch with Spring-Loaded Design MS735 Series Adjustable Quarter-Turn Latch with Spring-Loaded Design MS735 Series Adjustable Quarter-Turn Latch with Spring-Loaded Design



  • Maximum Static Load Capacity: 160 N
  • Maximum Torque Input: 11 Nm

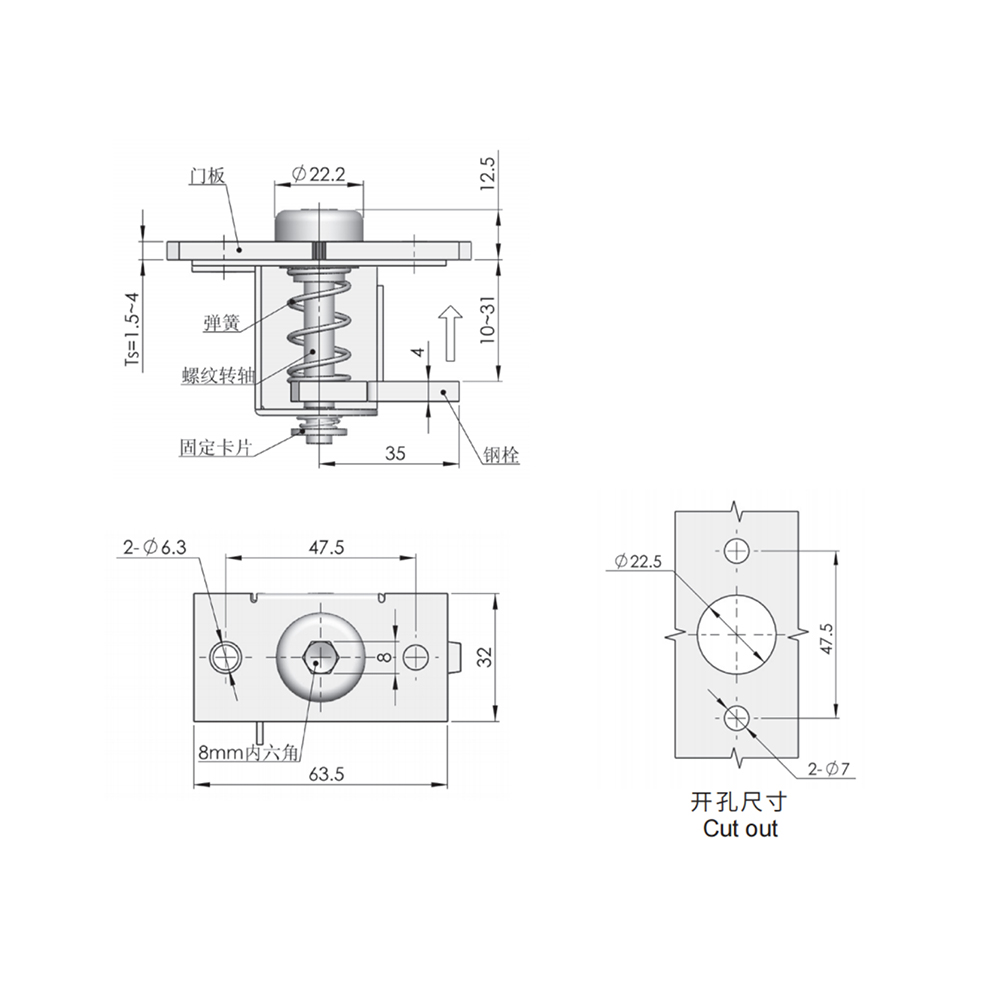

  • Dimensions:
    • Mounting Plate: 63.5 mm x 32 mm
    • Cut-Out Hole Diameter: 22.5 mm
    • Total Height (including latch): 35 mm

Applications

  • Electrical enclosures
  • HVAC access panels
  • Industrial equipment cabinets
  • Storage compartments

Keywords

Adjustable spring latch, MS735 quarter-turn latch, panel locking system, industrial cabinet latch, spring-loaded carbon steel latch, MS735-2, MS735-4, MS735F3D000002.
