MS734 Cam Lock – Zinc Alloy with Chrome Finish, High Strength, 270N Load Capacity
The MS734 cam lock features a robust construction designed for secure locking solutions. This lock operates through a 90° rotational mechanism, ensuring efficient opening and closing functionality. Its durable structure and sleek chrome-plated finish make it suitable for a wide range of applications requiring high performance and reliability.
Material:
- Base Material: Zinc alloy with integrated steel components
- Finish: Bright chrome-plated surface for corrosion resistance and aesthetic appeal
- Lock Cylinder: Carbon steel (Material Code: S1B45Y00002)
Surface Finish and Color/Appearance:
- Surface Finish: Electroplated bright chrome
- Color: Metallic silver with a polished appearance
Products Categories
Get A Free Quote
Key Features
- High-strength zinc alloy body for enhanced durability
- 90° rotational operation for effective locking/unlocking
- Static load rating of 270N, ensuring robust performance
- Maximum torque resistance: 8N·m
- Steel cylinder material for secure and precise engagement
- Compatible with K15-10 style keys for versatile locking solutions

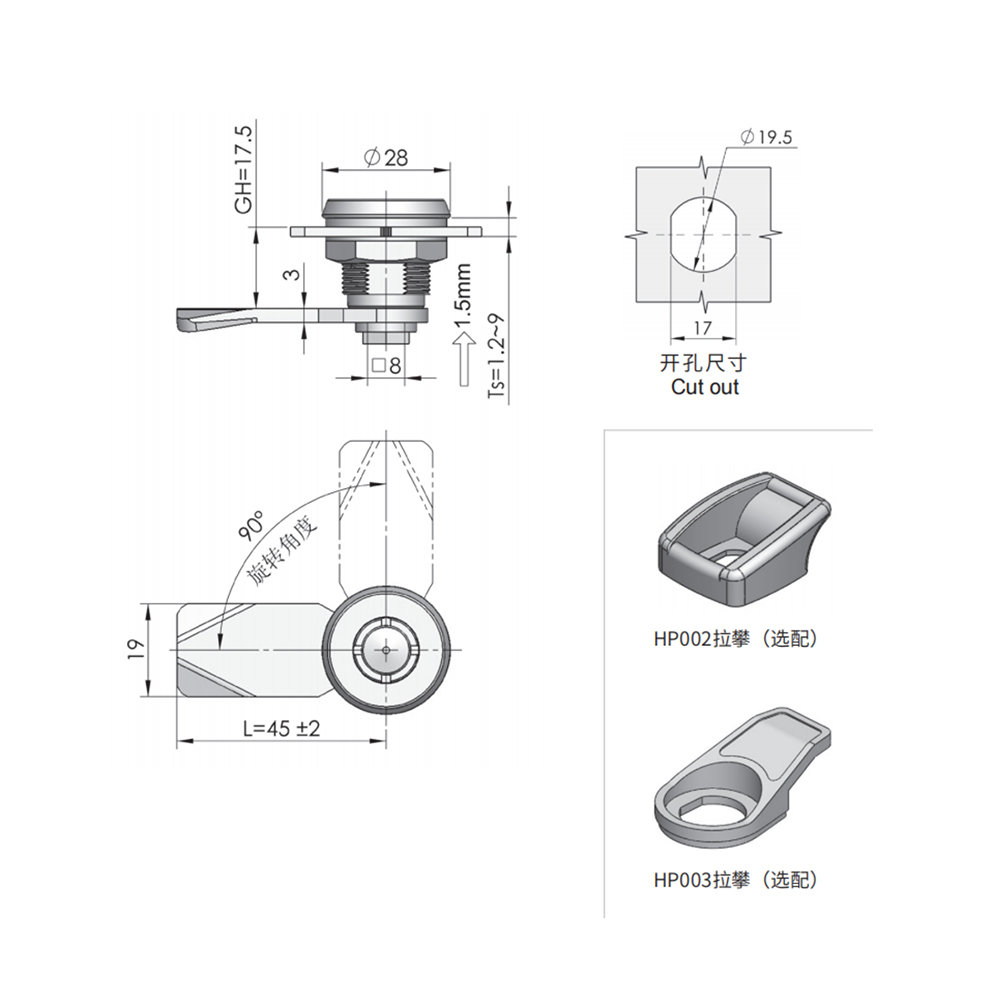

Specifications
- Dimensions:
- Lock housing diameter: Ø28 mm
- Length: 45 ± 2 mm
- Cutout size: Ø19.5 mm with square mounting
- Panel thickness range: 1.2–9 mm
- Recommended tightening torque for fixed nuts: 20N·m
- Rotational locking angle: 90°
Applications
- Industrial enclosures
- Cabinet doors and panels
- Storage compartments in automotive or electronic systems
- Equipment housings requiring high torque and reliable locking
Keywords
MS734 cam lock, zinc alloy cam lock, 90-degree lock, chrome-plated lock, high torque cam lock, cabinet lock, enclosure locking mechanism, industrial cam locks.
