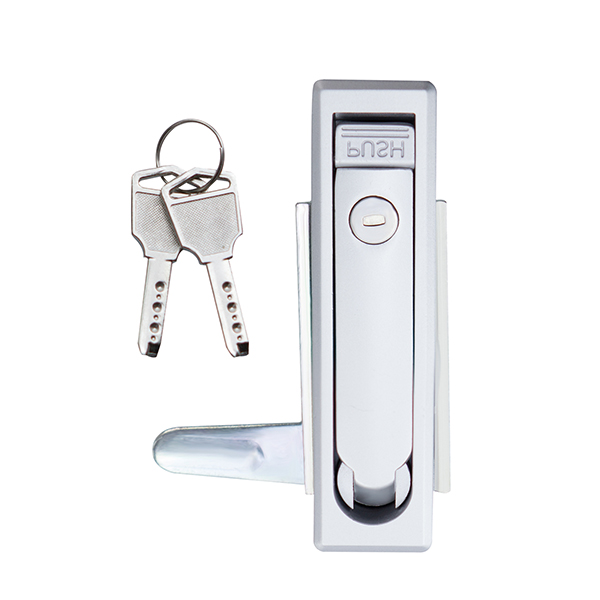

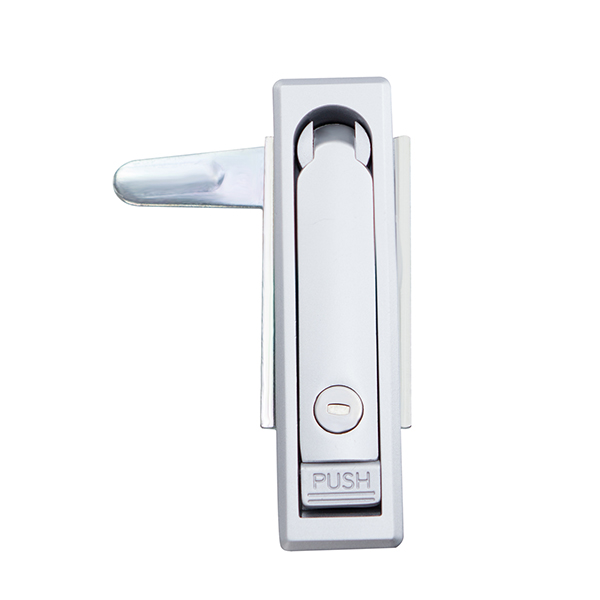

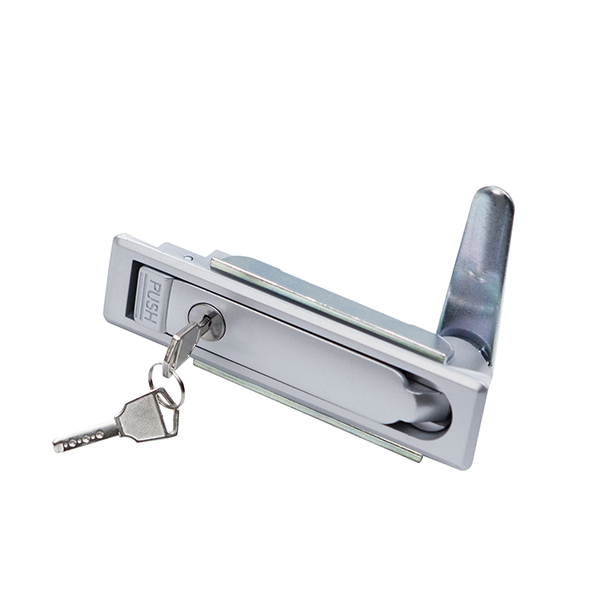

MS712 & MS713 Compression Lever Latch, Swinghandle, Key Locking, Adjustable for 1-12mm Panel, High-Security with Single and Three-Point Locking Options, Zinc Alloy, Chrome-Plated Finish
- The MS712 and MS713 compression lever latches are designed for secure, high-performance access solutions in industrial applications. These latches feature a swinghandle design with quick-release functionality for ease of access and installation. With adjustable mounting capabilities, both models can accommodate door thicknesses from 1 to 12mm and are suitable for single-point and three-point locking configurations by replacing the locking rods. Constructed from durable zinc alloy with a corrosion-resistant chrome-plated finish, these latches are ideal for applications requiring reliable and robust access control.
Material:
- Zinc alloy base, handle, lock core, carbon steel plate, steel rod
Surface Finish:
- Chrome-plated base and handle, with optional electroplating
Color/Appearance:
- Chrome finish
Products Categories
Get A Free Quote
Key Features
- Quick-release swinghandle for easy and secure access
- Available in single-point and three-point locking configurations
- Durable zinc alloy construction with corrosion-resistant chrome-plated finish
- Adjustable to fit panel thickness from 1-12mm
- IP54 rated for dust and water resistance
Specifications
- IP Rating: IP54 for dust and water-resistant performance

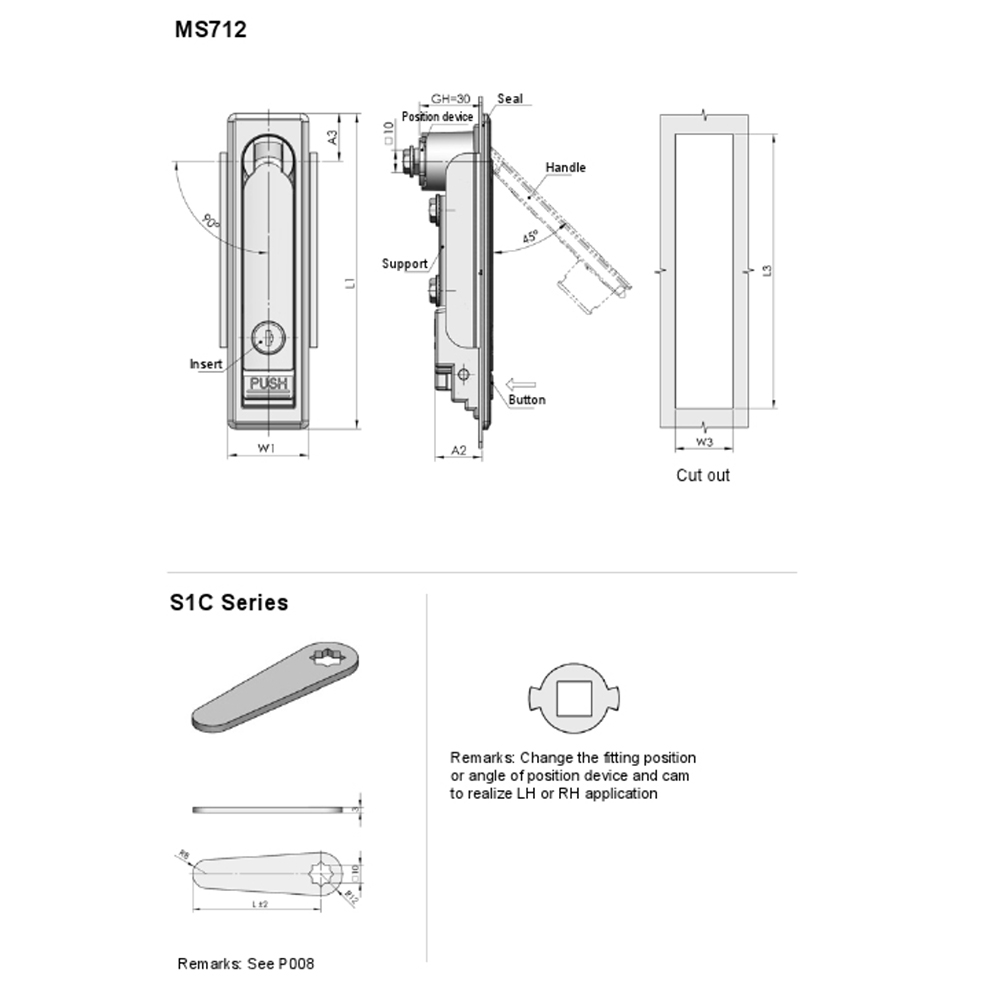

- Dimensions:
- MS712:
- Handle Length (L1): 149mm
- Handle Depth (L2): 72mm
- Mounting Hole Length (L3): 139.5mm
- Width (W1): 38mm
- Mounting Hole Width (W3): 29.5mm
- MS713:
- Handle Length (L1): 110mm
- Handle Depth (L2): 63mm
- Mounting Hole Length (L3): 102mm
- Width (W1): 33.5mm
- Mounting Hole Width (W3): 27mm
- MS712:
- Grip Height (GH): 30mm
- Mounting Hole Sizes (A2 and A3): A2 – 22mm, A3 – 22.5mm for MS712; A3 – 17mm for MS713
Applications
- Industrial cabinets
- Utility enclosures
- Control panels requiring secure, adjustable, and high-security access
Keywords
- Compression lever latch, swinghandle latch, MS712, MS713, zinc alloy latch, high-security latch, adjustable door latch, IP54 latch, chrome-plated latch, industrial latch, single-point latch, three-point latch
