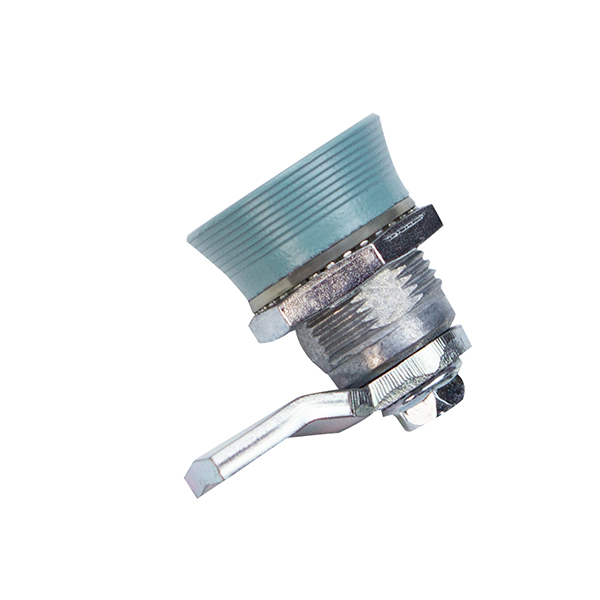

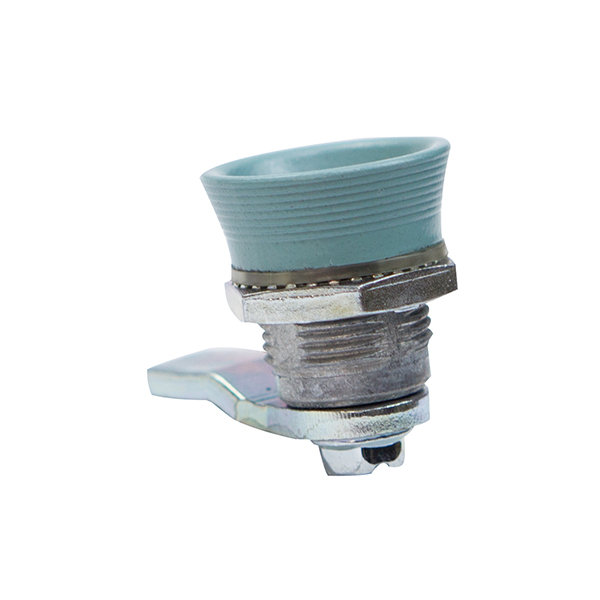

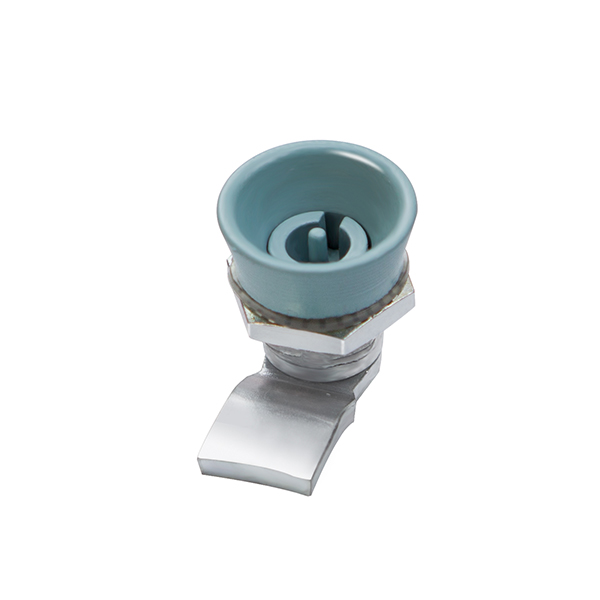

MS705-K Cam Lock, Zinc Alloy, 90° Rotation, Customizable Peacock Green Finish
The MS705-K Cam Lock combines aesthetic appeal and functional security, featuring a unique peacock green sprayed finish on its zinc alloy handle and base. Designed for secure access control with a 90° turn mechanism, this cam lock is ideal for various applications, ensuring reliability and durability in demanding environments. With a white zinc-plated carbon steel cam, the MS705-K offers enhanced corrosion resistance and is compatible with the optional K15-1 key for added security.
Material and Finish:
- Base Material: Zinc alloy for handle and base
- Steel Cam: Carbon steel, white zinc-plated for corrosion resistance
- Finish: Sprayed peacock green handle, base, and lock core
Functionality:
- 90° Rotation Mechanism: Ensures simple and secure locking and unlocking operations.
- Customizable Key Option: Compatible with K15-1 key for secure access control.
Products Categories
Get A Free Quote
Key Features
- Aesthetic Peacock Green Finish: Unique appearance with functional corrosion resistance.
- High Durability: Zinc alloy construction combined with white zinc-plated carbon steel cam.
- Versatile 90° Operation: Simple and effective locking mechanism.

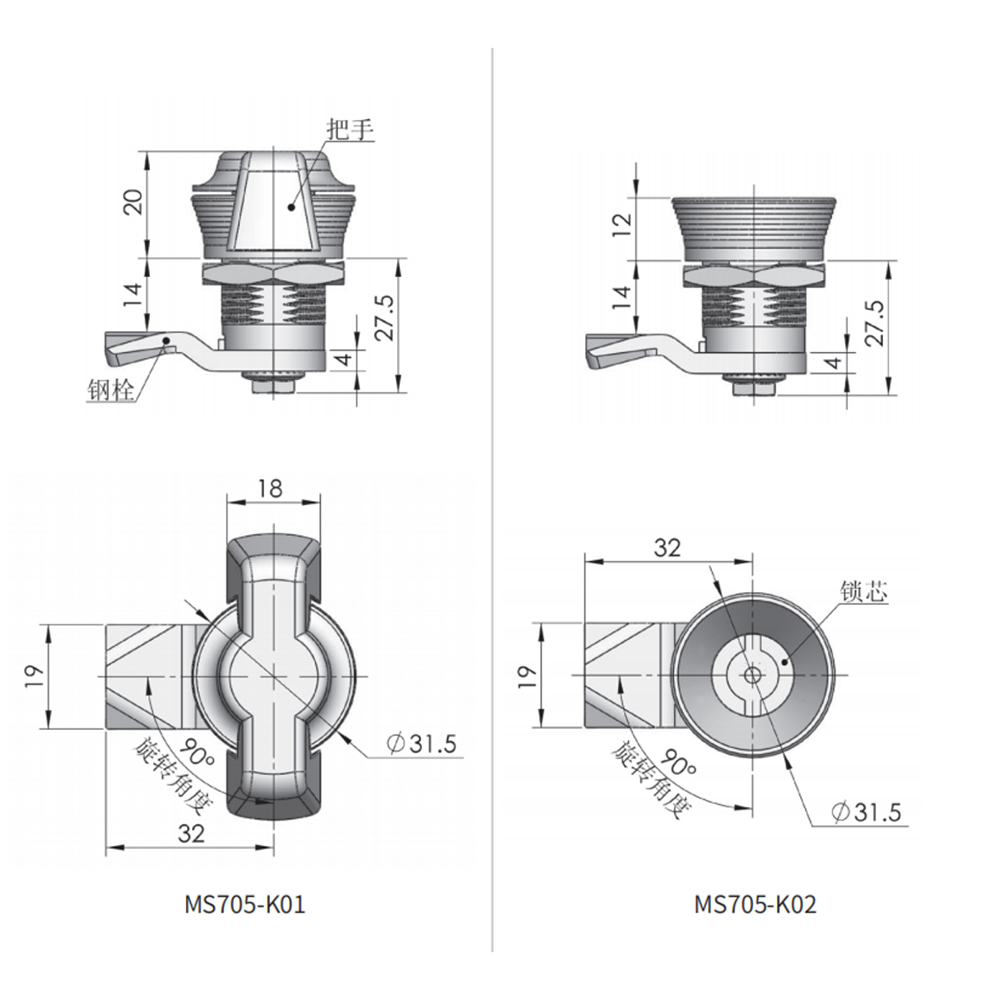

Technical Specifications
- Maximum Static Load: 210 N
- Maximum Input Torque: 15 N·m
- Recommended Torque for Fixing Nut: 20 N·m
- Cam Part Number: S1B32N 04002
Applications
- Industrial enclosures
- Access panels
- Control cabinets
- Equipment doors requiring reliable and secure latching
