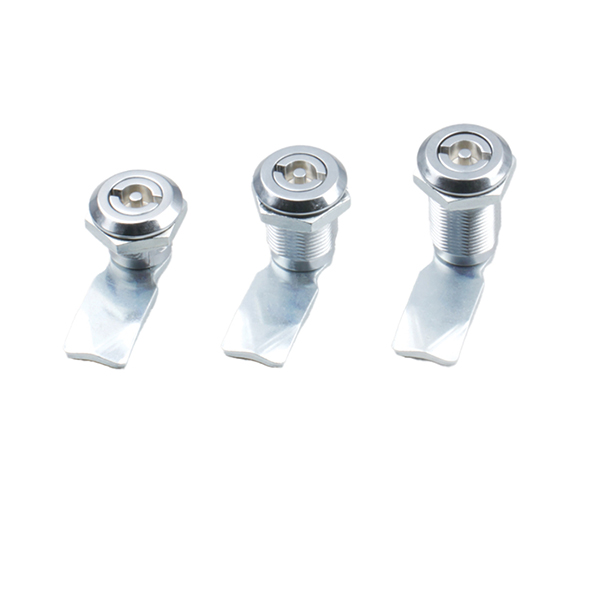

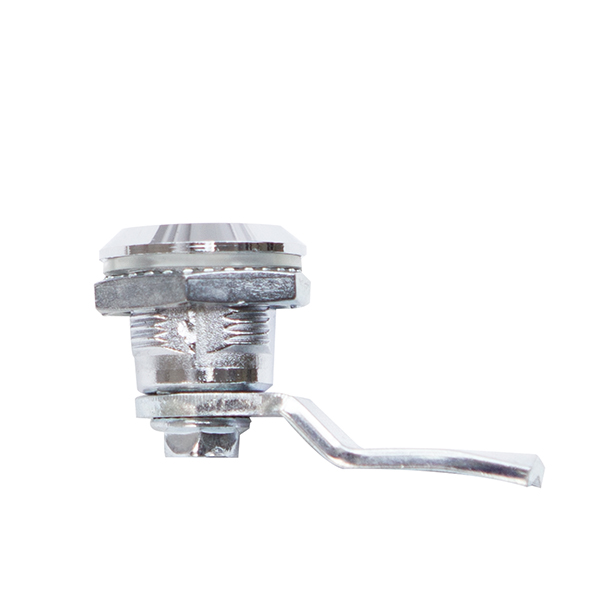

MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated
MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated
MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated
MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated
MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated
MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated
MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated
MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated

MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated

The MS705 Cam Lock is designed for versatile applications, offering a 90° rotational locking mechanism that ensures secure access for various enclosure and cabinet applications. Built with customizable features, it supports different lock core shapes and variable body heights, allowing precise tailoring to meet specific requirements. This lock features an IP54 rating, providing basic protection against dust and water ingress, making it suitable for indoor and semi-outdoor environments. The MS705 combines flexibility with reliability, catering to industrial and commercial needs where security and adaptability are paramount.

  • Lock Body Material: Zinc Alloy
  • Finish: Glossy chrome plating for enhanced corrosion resistance
  • 90° Rotational Mechanism: Ensures easy locking and unlocking functionality
  • Customizable Lock Core and Body Height: Supports multiple lock core designs (e.g., key slot, triangle, square, hexagon) and adjustable body height options to fit various panel thicknesses or design needs
Products Categories
Get A Free Quote
Contact Form Demo (#3)

Key Features

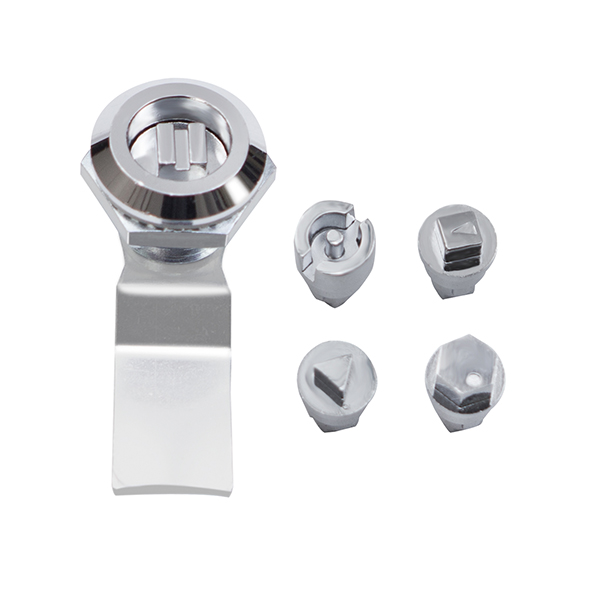

  • Flexible Lock Core Options: Choose from multiple lock core shapes including standard key slot, triangle, square, and hexagonal configurations for tailored security solutions.
  • Customizable Body Height: Available in adjustable heights (H=18/28/36/42 mm), providing compatibility with different panel or enclosure depths.
  • 90° Rotation for Ease of Use: Smooth and reliable 90° rotation for secure closure.
  • IP54 Rating: Ensures protection against dust ingress and splashes, suitable for diverse industrial environments.

Technical Specifications

MS705 Cam Lock, 90° Rotation, Customizable Lock Core and Body Height, IP54 Rated

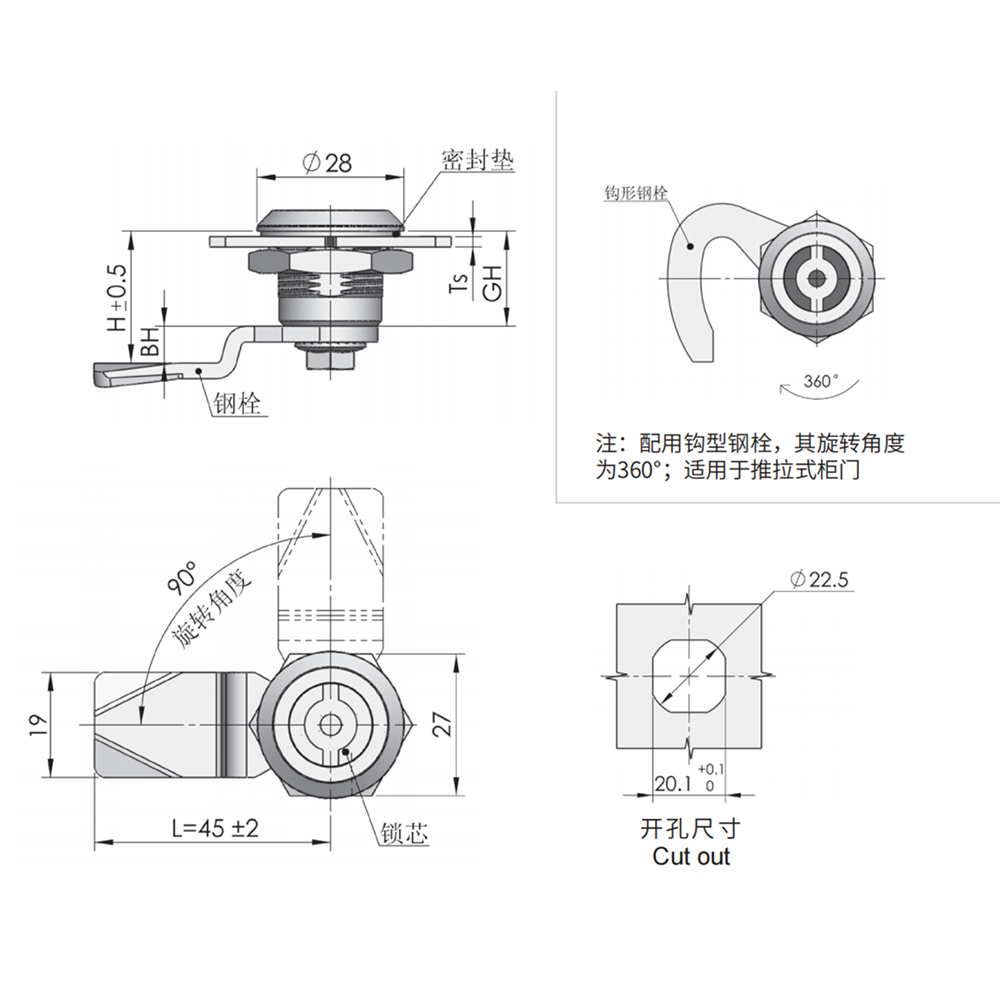

  • Mounting Hole Dimensions: Ø22.5 mm with 20.1 mm square opening for precise installation
  • Lock Core Options: Multiple shapes including key slot, triangle, and square
  • Available Heights: H=18, 28, 36, 42 mm to match various application needs

Applications

  • Electrical and industrial enclosures
  • Cabinet and locker systems
  • Control panels
  • Storage compartments requiring customizable security options
