MS705-3D Zinc Alloy 90-Degree Locking Cam Latch for Industrial Applications
The MS705-3D cam latch is a robust and ergonomic locking solution designed for industrial panels, enclosures, and machinery. Its 90-degree rotational mechanism ensures efficient locking and unlocking, providing security and convenience. With its zinc alloy construction and durable black powder-coated finish, this cam latch offers high strength and corrosion resistance, making it suitable for demanding environments.
Materials and Finish
- Base and Lock Core: Zinc alloy for durability and corrosion resistance.
- Cam: Carbon steel (model: S1B45Y07002) for high structural integrity.
- Surface Treatment: Black powder coating for enhanced wear resistance and a sleek aesthetic.
Surface Finish and Appearance
- Matte black finish on the base and lock core for a modern and professional appearance.
Products Categories
Get A Free Quote
Key Features
- 90-degree rotational operation for easy locking and unlocking.
- Compatible with K15-1A key cores for versatile applications.
- Durable construction for long-term use in industrial settings.
Technical Specifications
- Maximum Static Load: 270N
- Maximum Input Torque: 9Nm
- Recommended Screw Torque: 20Nm

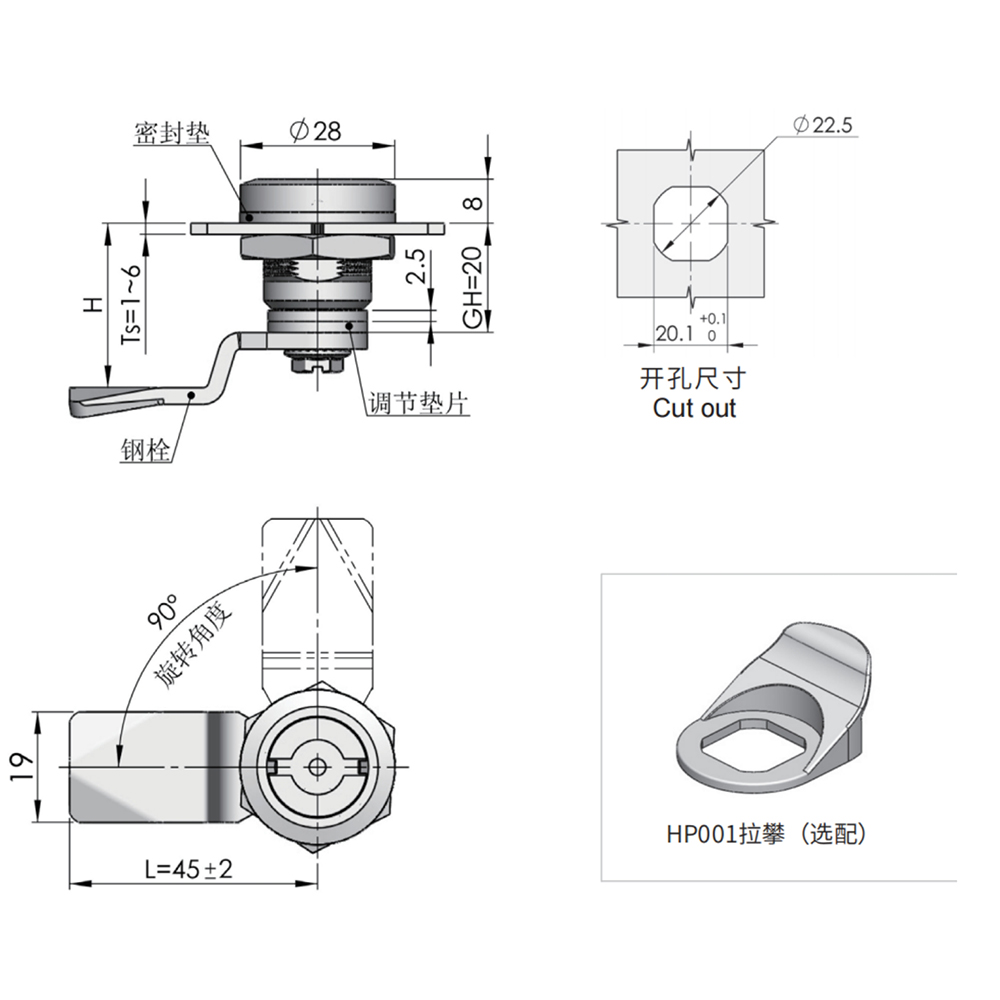

- Dimensions:
- Cutout size: 20.1mm square, Ø22.5mm circular
- Cam length (L): 45mm ± 2mm
- Grip height (GH): 20mm
Applications
- Electrical panels and enclosures
- Machinery cabinets
- Industrial control panels
Keywords
MS705-3D, locking cam latch, zinc alloy cam latch, 90-degree cam latch, black powder-coated latch, industrial locking solution
