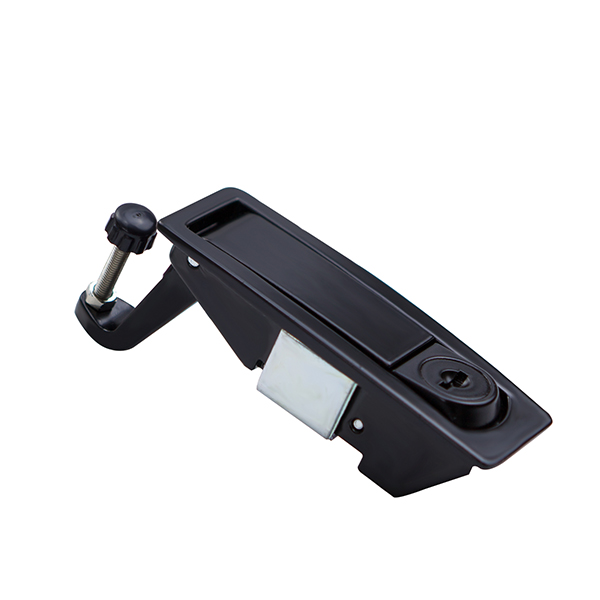

MS606 Lever Compression Latch, Key Locking, Zinc Alloy, Black Powder Coat
The MS606 Lever Compression Latch is a versatile and durable locking solution for industrial and commercial applications. Available in keyed (CH751) and non-keyed variants, it supports panel thicknesses from 1-5mm and grip lengths from 1-24mm. The MS606 can be customized to meet specific project requirements and offers various surface finishes.
Products Categories
Get A Free Quote
MS606 Lever Compression Latch Product Features

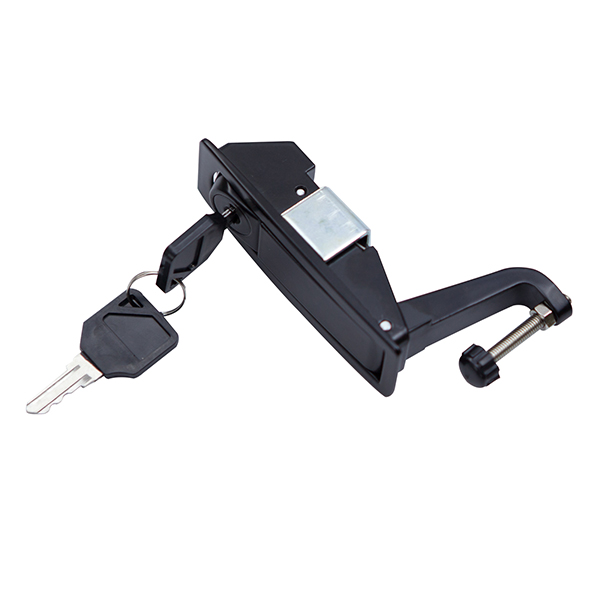

- Keyed and Non-Keyed Options: Available with CH751 keyed locking or non-locking options.
- Robust Build: Made from high-strength zinc alloy for enhanced durability.
- Multiple Grip Lengths: Grip range of 1-24mm to suit various installation scenarios.
- Surface Finish Options: Choose from black powder coat or bright chrome finish for corrosion resistance and a professional appearance.
- Customizable: Custom grip lengths and configurations are available upon request.

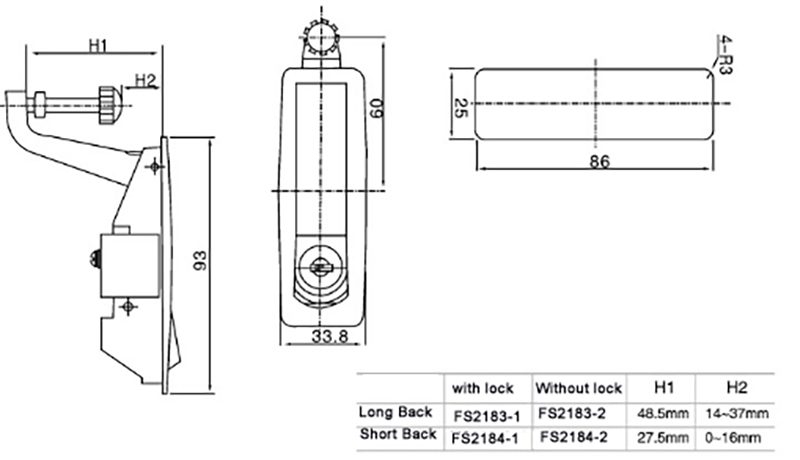

MS606 Lever Compression Latch Technical Specifications
| Parameter | Details |
| Material | Zamak DIN-EN 1774-ZnAl4Cu1 (Zinc Alloy) |
| Surface Finish | Black Powder Coat or Bright Chrome |
| Panel Thickness Compatibility | 1-5mm |
| Grip Range | 1-24mm |
| Protection Rating | IP40 |
| Handle Bearing Tension | ≤500N |
| Maximum Static Load | 200N |
| Lock Type | Keyed (CH751) or Non-Keyed |
| Sealing Ring | EPDM Foam |
MS606 Lever Compression Latch Applications
The MS606 Lever Compression Latch is ideal for industrial cabinets, enclosures, transportation equipment, and other applications requiring secure closure and compression. It is perfect for environments where vibration resistance and secure latching are critical.
Customization Options
- Custom grip lengths available upon request.
- Available in both keyed and non-keyed versions.
- Multiple surface finishes to suit aesthetic and functional requirements.
Hidden Search Keywords
- C2-32 latch
- C2-32-25 compression latch
- Keyed compression latch
- Lever latch
- Industrial latch

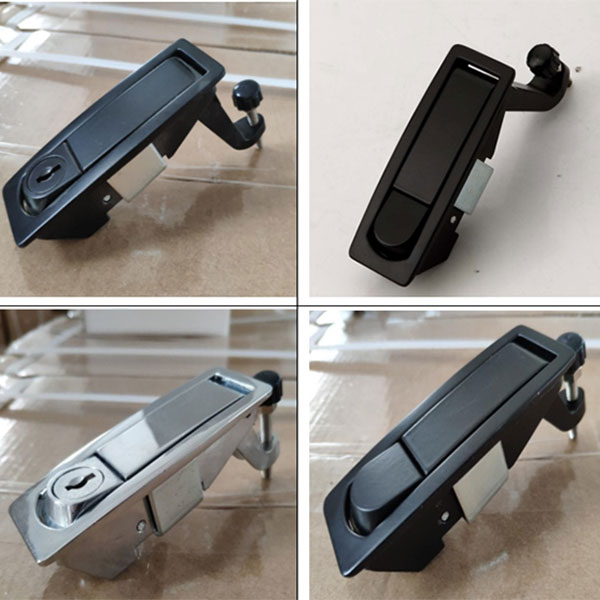

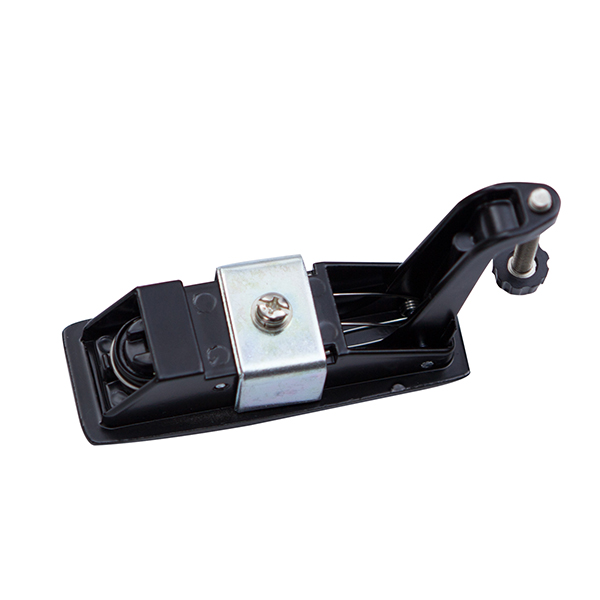

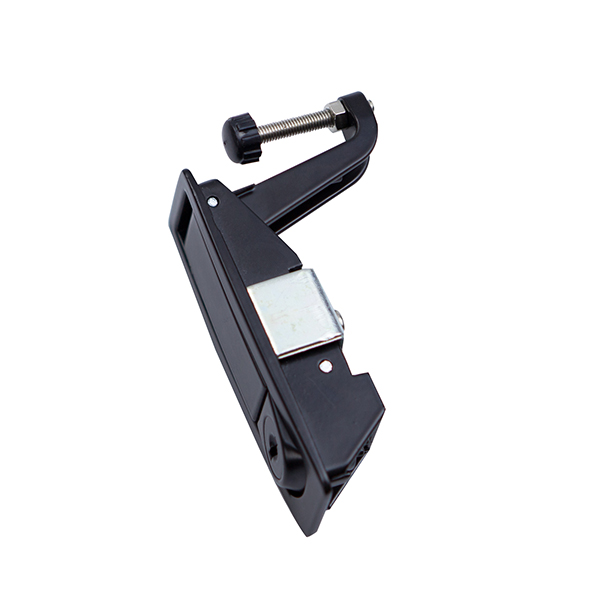

MS606 Lever Compression Latch Detail Display
