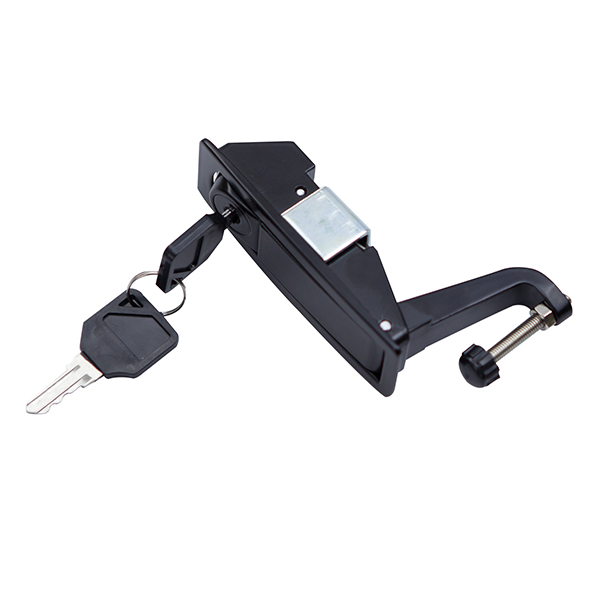

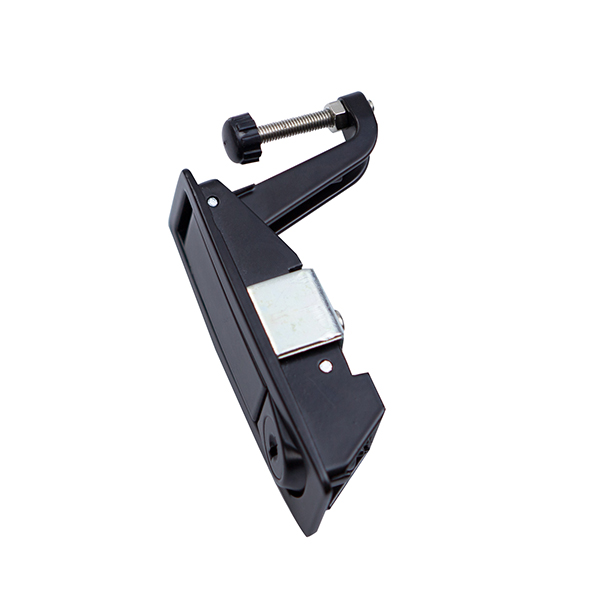

MS606 Compression Lever Latch, Swinghandle, Key Locking, 1-5mm Panel, 14-37mm Grip, Not Sealed, Zinc Alloy, Black Powder Coat
- The MS606 compression lever latch with swinghandle is designed for secure and adaptable access in industrial and utility enclosures. Featuring a quick-release swinghandle and adjustable screw mechanism, it provides flexibility in various frame depths and can accommodate door thicknesses from 1-5mm. This model is available with or without a key lock, offering customizable security for different application requirements. Constructed from durable zinc alloy with a corrosion-resistant black powder coat, the MS606 is suitable for environments needing reliable, non-sealed closures.
Material:
- Zinc alloy lock body, steel backplate, latch plate
Surface Finish:
- Black powder coat, optional chrome plating
Color/Appearance:
- Black finish
Products Categories
Get A Free Quote
Key Features
- Quick-release swinghandle for easy access and secure latching
- Adjustable mounting screws for different grip ranges
- Available with or without key lock for tailored security needs
- Durable zinc alloy construction with corrosion-resistant finish
Specifications
- IP Rating: IP54 (dust and water-resistant, non-sealed)

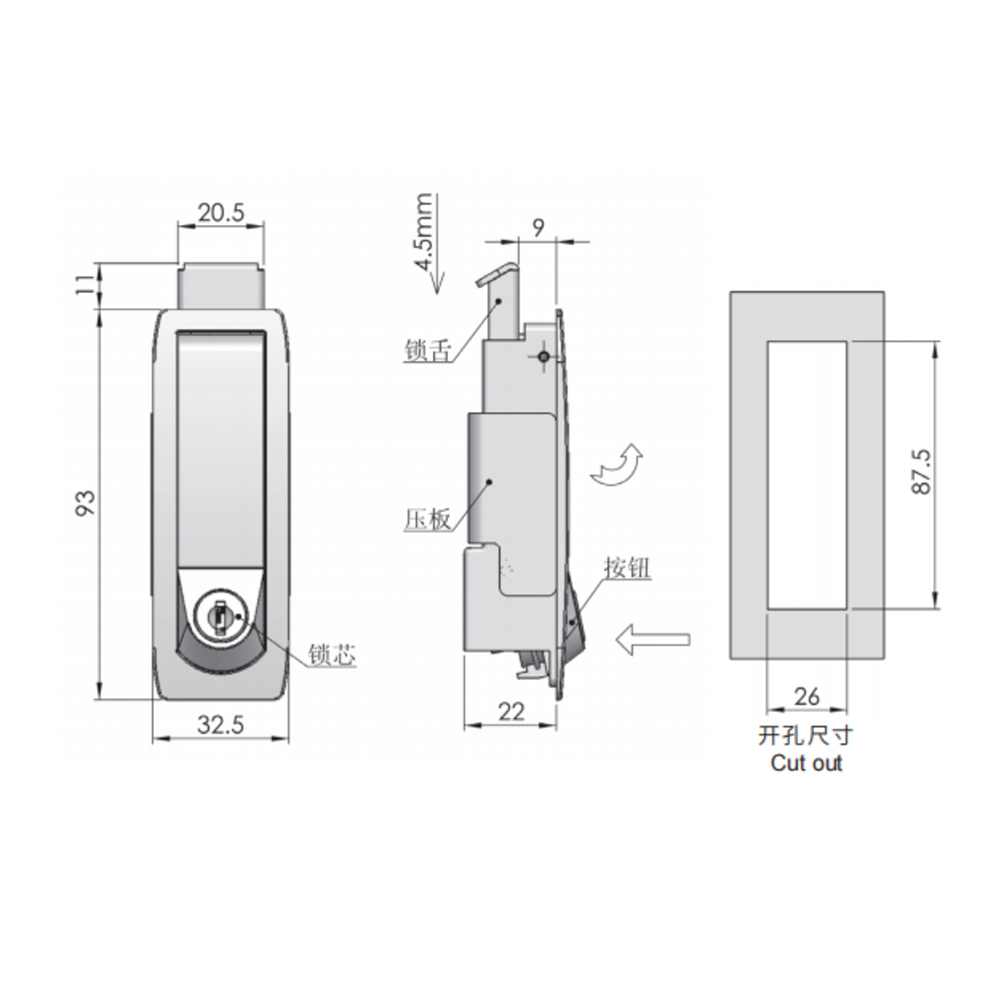

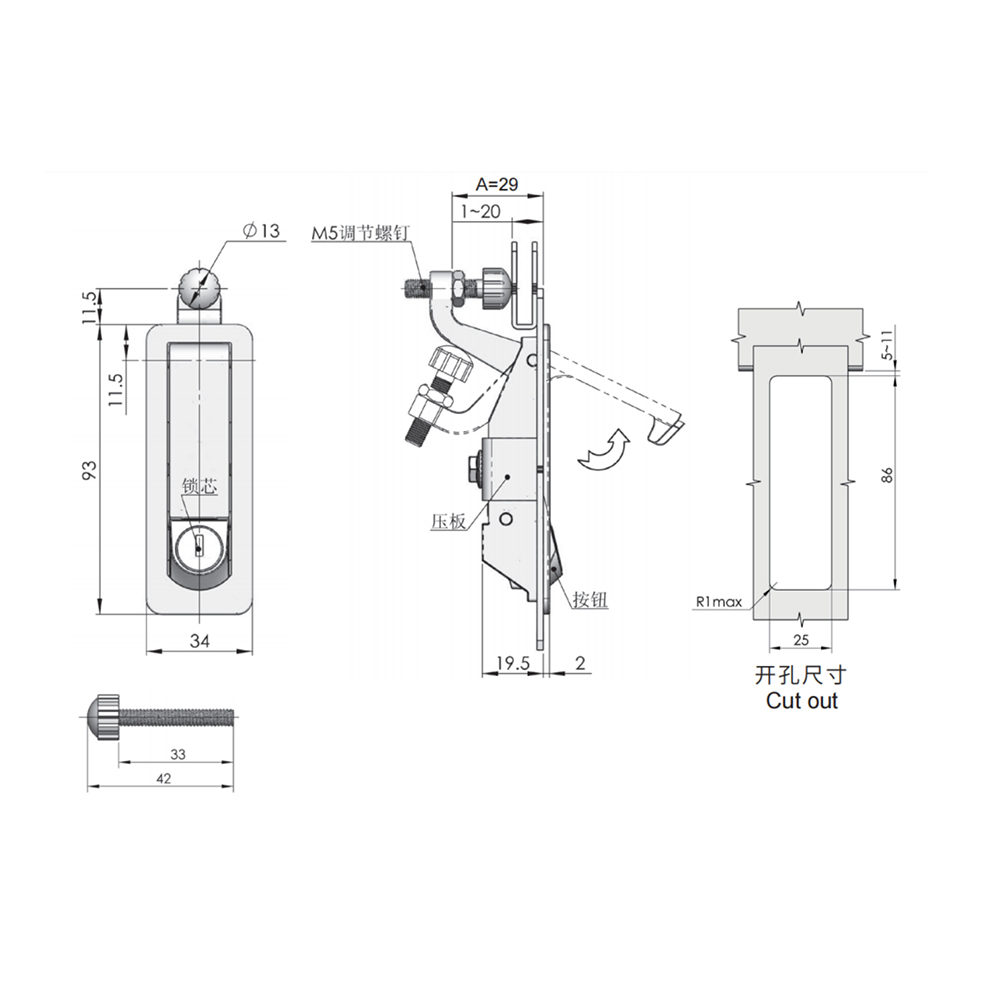

- Dimensions:
- Handle Height (H1): 48.5mm with lock, 27.5mm without lock
- Adjustable Range (H2): 14-37mm with lock, 0-16mm without lock
- Compatible Door Thickness: 1-5mm
Applications
- Industrial cabinets
- Utility enclosures
- Control panels requiring secure, adjustable access
Keywords
- Compression lever latch, swinghandle latch, MS606, zinc alloy latch, high-security lock, adjustable door latch, IP54 latch, black powder coat latch, C2-32-25 alternative, lever latch
