MS324 Lever Handle Cam Latch Lock with Zinc Alloy Handle and Steel Cam
The MS324 Lever Handle Cam Latch Lock provides a secure and ergonomic locking solution for industrial cabinets, machinery, and enclosures. Featuring a sleek lever handle and robust construction, this cam latch ensures smooth 90° rotational locking and unlocking for reliable access control.
Material
- Handle and Base: Zinc alloy for enhanced strength and durability.
- Cam: Carbon steel with a zinc-plated finish for rust and wear resistance.
Surface Finish and Appearance
- Satin finish on the zinc alloy handle for a modern and professional look.
- Bright zinc plating on the carbon steel cam for improved corrosion protection.
Products Categories
Get A Free Quote
Key Features
- Ergonomic lever handle design for easy operation.
- 90° rotational mechanism to enable secure locking or unlocking.
- Configurable options available:
- Standard MS324 (with lock core).
- Optional configurations without lock core available.
- Default pairing with K140 key.
- Steel cam material code: S1B45Y07002.
Specifications
- Maximum static load: 230N.
- Maximum input torque: 20N.m.
- Recommended tightening torque for mounting nut: 20N.m.

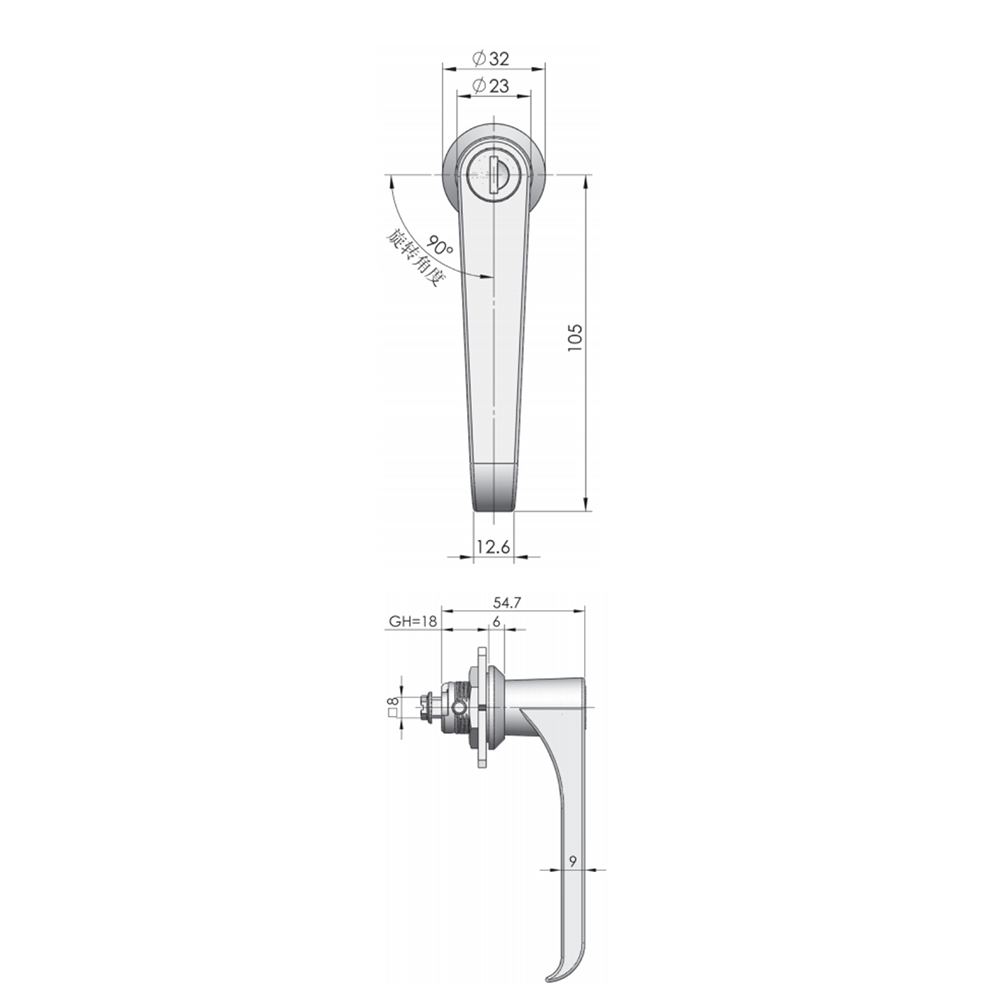

- Dimensions:
- Handle length: 105mm.
- Cut-out size: 32mm diameter.
- Mounting depth: 54.7mm (overall handle thickness).
Applications
- Industrial cabinets and enclosures.
- Machinery access panels.
- Telecommunications and electrical enclosures.
Keywords
MS324 lever cam latch, zinc alloy lever handle lock, industrial latch solution, steel cam lock, ergonomic access latch, secure industrial locking handle.
