MS324-3 Lever Handle Cam Latch Lock with Zinc Alloy Handle and Steel Cam
MS324-3 Lever Handle Cam Latch Lock with Zinc Alloy Handle and Steel Cam

MS324-3 Lever Handle Cam Latch Lock with Zinc Alloy Handle and Steel Cam

The MS324-3 Lever Handle Cam Latch Lock combines modern aesthetics with robust functionality. Designed for secure access control, it features a durable zinc alloy handle and a 360° rotational mechanism for enhanced flexibility in industrial cabinets, enclosures, and machinery. The handle springs back automatically for added convenience.

Material

  • Handle and Base: Zinc alloy for high strength and durability.
  • Cam and Rotational Shaft: Steel (material code: S1C7200) with anti-corrosion treatment.
  • Lock Components: Chrome-plated for a polished and professional appearance.

Surface Finish and Appearance

  • Black sprayed finish on the handle and base for a sleek, matte look.
  • Bright chrome-plated lock components to ensure long-lasting performance and visual appeal.
Products Categories
Get A Free Quote
Contact Form Demo (#3)

Key Features

  • 180° lock core rotation for reliable opening and locking.
  • Automatic spring reset ensures the handle returns to the starting position after use.
  • Handle can rotate 360°, providing flexible operation for different use cases.
  • Configured with K58-3 default key for security.

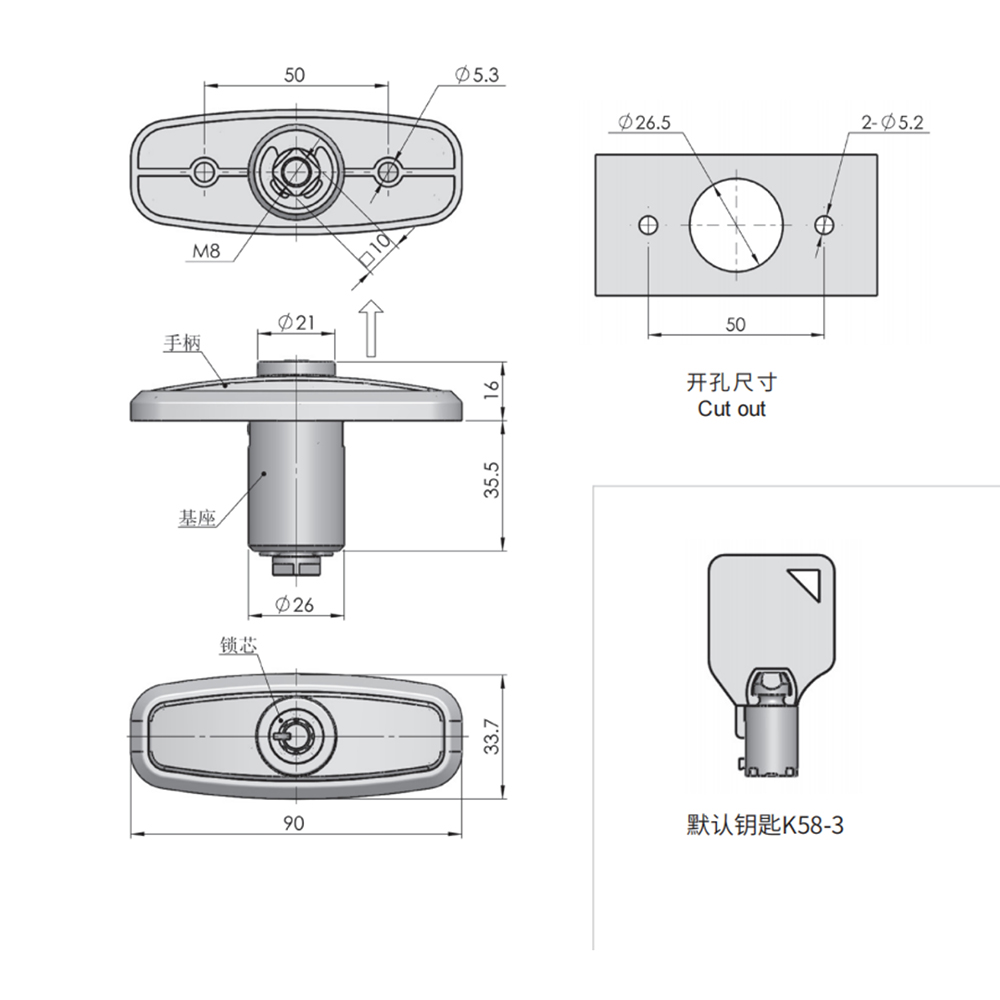

Specifications



MS324-3 Lever Handle Cam Latch Lock with Zinc Alloy Handle and Steel Cam

  • Maximum static load: 270N.
  • Maximum input torque: 20N.m.
  • Dimensions:
    • Handle length: 90mm.
    • Handle width: 33.7mm.
    • Cut-out size: 26.5mm diameter.
    • Mounting depth: 35.5mm.

Applications

  • Industrial cabinets and enclosures.
  • Machinery access doors.
  • Electrical and telecommunications panels.

Keywords

MS324-3 lever handle latch, zinc alloy cam latch, 180° rotational lock, industrial access latch, ergonomic spring-reset handle, secure locking solution.
