MS323 Wing Handle Cam Latch with PA6+30%GF Handle and Steel Shaft
MS323 Wing Handle Cam Latch with PA6+30%GF Handle and Steel Shaft

MS323 Wing Handle Cam Latch with PA6+30%GF Handle and Steel Shaft

The MS323 Wing Handle Cam Latch is a durable and lightweight locking solution ideal for industrial and commercial applications. Its ergonomic wing handle design, constructed from reinforced polyamide (PA6+30%GF), provides ease of use while maintaining strength and longevity. The latch features a 90° rotational locking mechanism, ensuring secure operation for cabinets, enclosures, and machinery access doors.

Material

  • Handle: PA6 (polyamide) reinforced with 30% glass fiber for high strength and lightweight performance.
  • Base: Sturdy construction with corrosion-resistant properties.
  • Shaft: Steel with anti-corrosion treatment for extended durability.
  • Lock Components: Zinc alloy/K14 brass cylinder and die-cast zinc lock core (L2D0143).

Surface Finish and Appearance

  • Matte black finish on the handle for a modern and professional appearance.
  • Zinc and brass components with polished finishes for enhanced aesthetics and durability.
Products Categories
Get A Free Quote
Contact Form Demo (#3)

Key Features

  • Ergonomic wing handle design for comfortable operation.
  • 90° rotational mechanism ensures reliable locking and unlocking.
  • Available with L2D0143 lock core for keyed access (includes K14 brass cylinder and die-cast zinc components).
  • High load-bearing capacity with optimized material construction.

Specifications



MS323 Wing Handle Cam Latch with PA6+30%GF Handle and Steel Shaft

  • Handle load capacity: 1750N.
  • Maximum input torque: 15N.m.

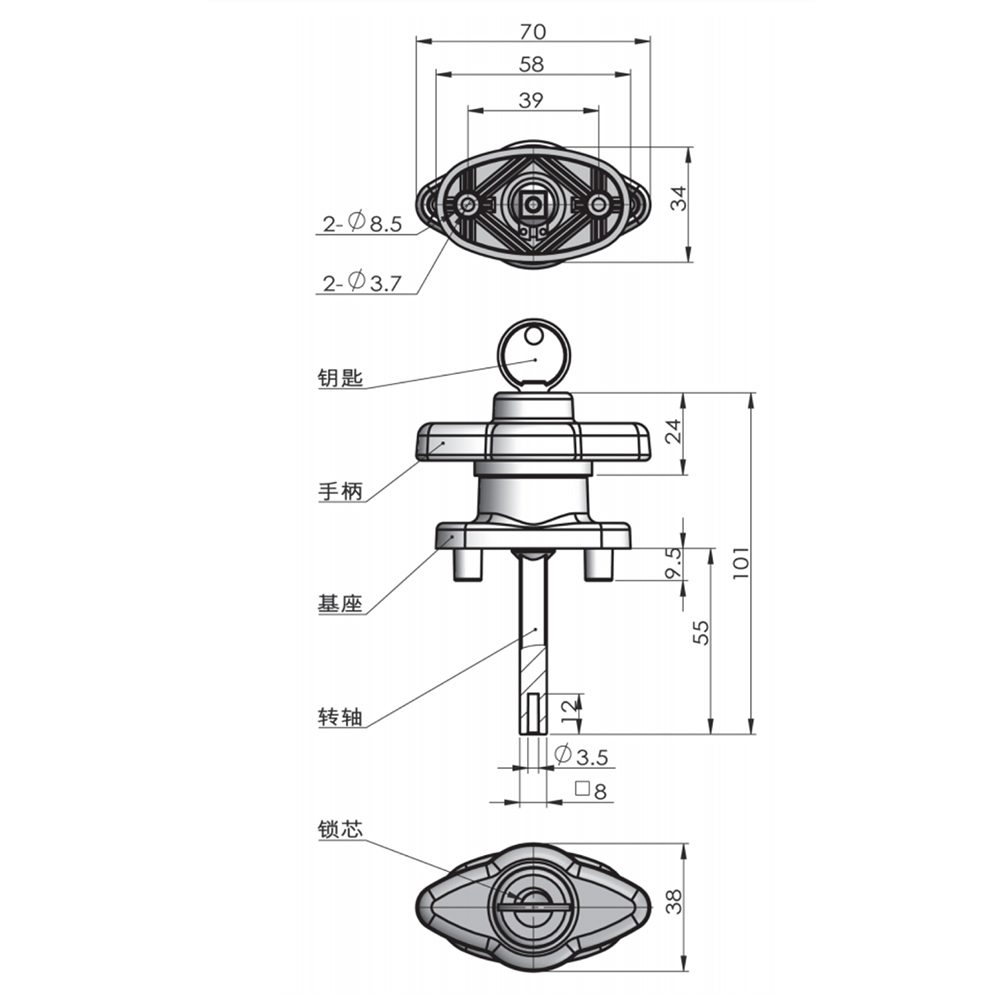

  • Dimensions:
    • Handle width: 70mm.
    • Handle height: 24mm.
    • Mounting depth: 101mm.
    • Cut-out size: 38mm x 34mm.

Applications

  • Industrial enclosures and cabinets.
  • Machinery access doors.
  • Electrical and telecommunications panels requiring secure locking solutions.

Keywords

MS323 wing handle latch, industrial cam latch, PA6 reinforced handle, keyed locking latch, ergonomic cam latch, high-strength industrial latch, 90-degree rotation latch.
