MS312 Lever Handle Lock with Zinc Alloy Handle and Carbon Steel Shaft
The MS312 Lever Handle Lock is an elegant and robust locking solution ideal for industrial cabinets, enclosures, and doors. With a 90° rotational locking mechanism, this lock offers smooth operation and reliable performance. Its polished chrome finish enhances its aesthetic appeal, making it suitable for both functional and decorative applications.
Material
- Handle and Base: Zinc alloy for strength and durability.
- Rotational Shaft: Carbon steel with a zinc-plated finish for corrosion resistance.
- Lock Plate: Stainless steel for additional strength and longevity.
Surface Finish and Appearance
- Polished chrome finish on the handle and base for a sleek and reflective appearance.
- Zinc plating on the rotational shaft for enhanced corrosion protection.
Products Categories
Get A Free Quote
Key Features
- Ergonomic lever handle design for easy grip and operation.
- 90° rotational mechanism for secure locking and unlocking.
- Multiple configurations available:
- MS312-1: With lock core.
- MS312-2: Without lock core.
- MS312-2A-Y: With hanging lock assembly for right-opening doors.
- MS312-2A-Z: With hanging lock assembly for left-opening doors.
- Default pairing with K280 key for security.
- Optional steel cam (S1B6800X) available for specific applications.
Specifications
- Handle load capacity: 300N.
- Maximum input torque: 15N.m.
- Recommended tightening torque for mounting nut: 20N.m.

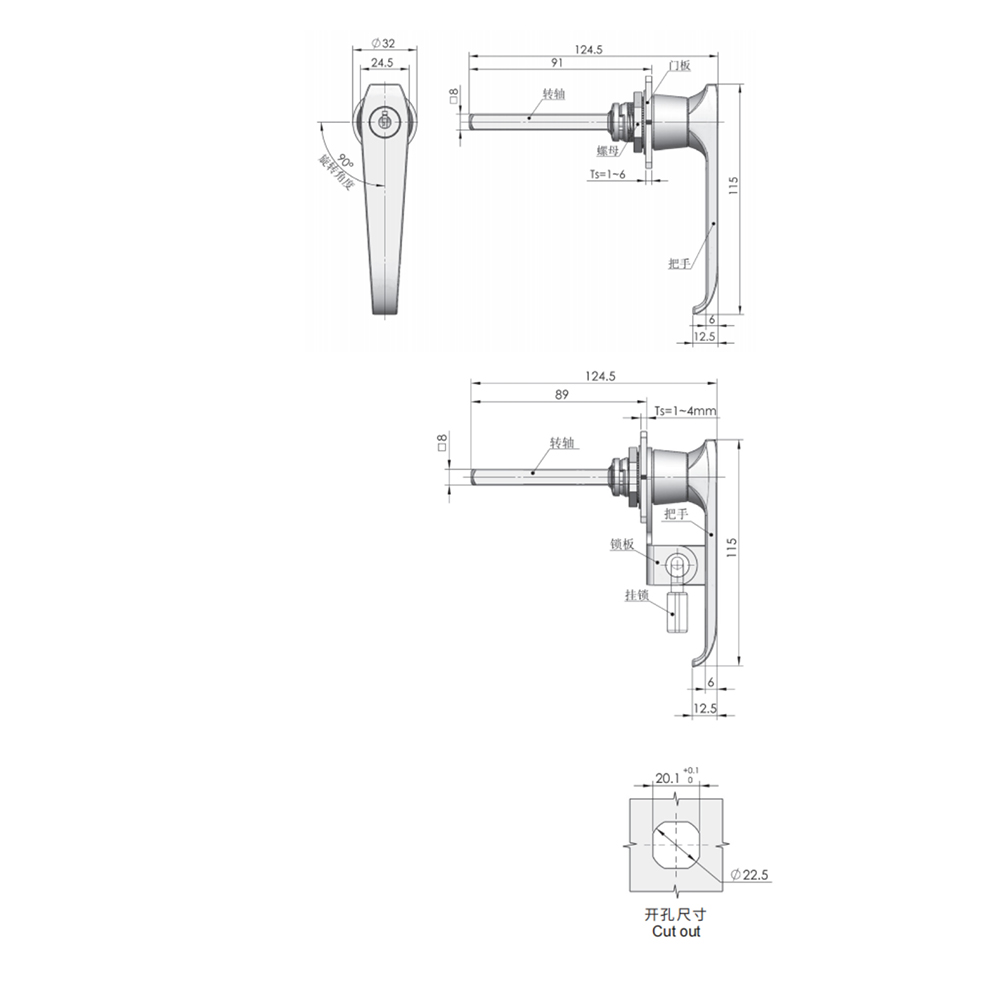

- Dimensions:
- Handle length: 124.5mm.
- Handle width: 24.5mm.
- Cut-out size: 22.5mm diameter.
- Mounting depth: 115mm.
Applications
- Industrial cabinets and enclosures.
- Electrical and telecommunications panels.
- Access doors for machinery and storage units.
Keywords
MS312 lever handle lock, zinc alloy lock, polished chrome finish, industrial cabinet lock, ergonomic lever lock, 90-degree rotation lock, carbon steel shaft.
