MS308-2 Zinc Alloy Latching Handle with Bright Chrome Finish for 90° Rotation Applications
The MS308-2 Zinc Alloy Latching Handle offers a durable and sleek solution for secure latching applications. Designed with a 90° rotation mechanism, this handle allows for smooth operation to lock or unlock systems efficiently. Its bright chrome-plated finish enhances both aesthetic appeal and corrosion resistance, making it suitable for a variety of environments.
Material:
- Handle: Zinc alloy
- Base: Carbon steel
- Cam: Carbon steel with a chrome-plated finish
Surface Finish and Color/Appearance:
- Handle and base: Bright chrome plating, providing a polished, reflective appearance and added corrosion resistance.
Products Categories
Get A Free Quote
Key Features
- 90° rotation for simple locking and unlocking operations.
- Compact design with robust construction to handle a maximum static load of 220N.
- Smooth and ergonomic design for user comfort and easy operation.
- Compatible with standard cutout dimensions identical to MS308
Technical Specifications
- Maximum static load: 220N
- Recommended tightening torque for fixing nuts: 20N·m
- Maximum input torque: 15N·m

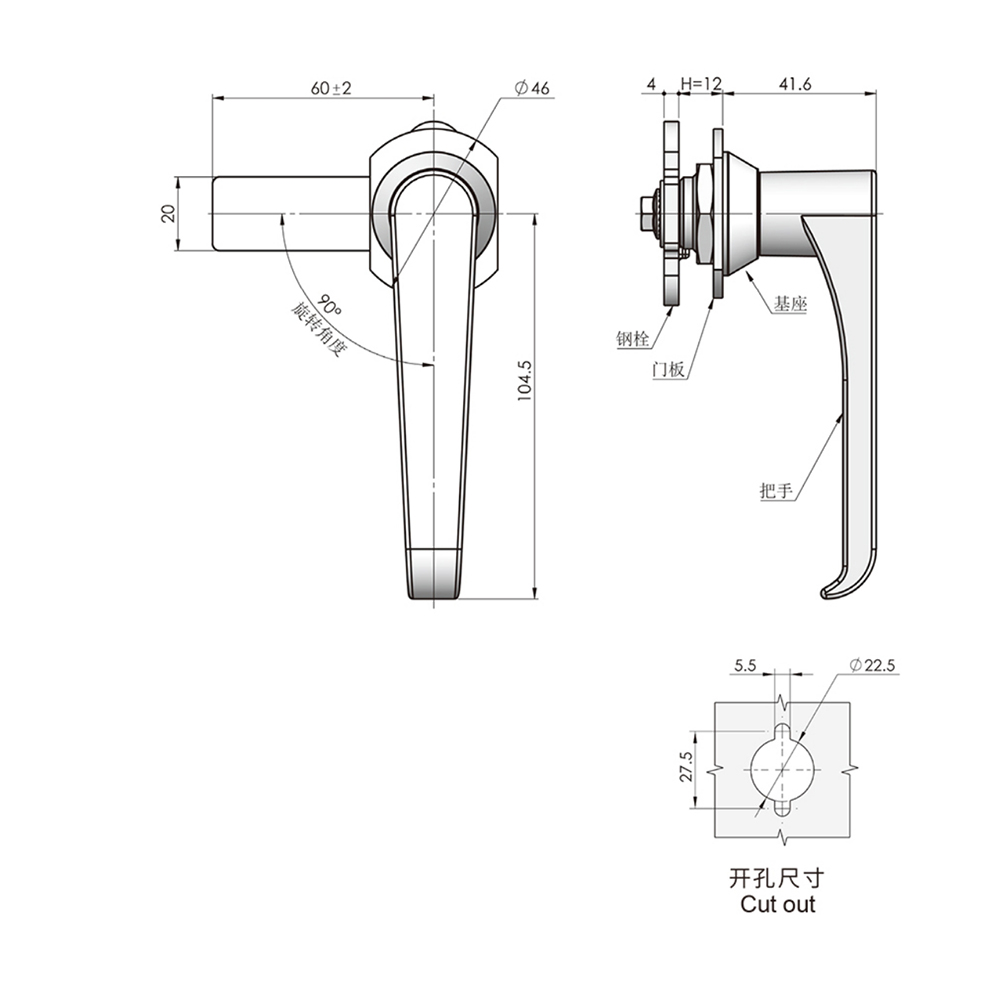

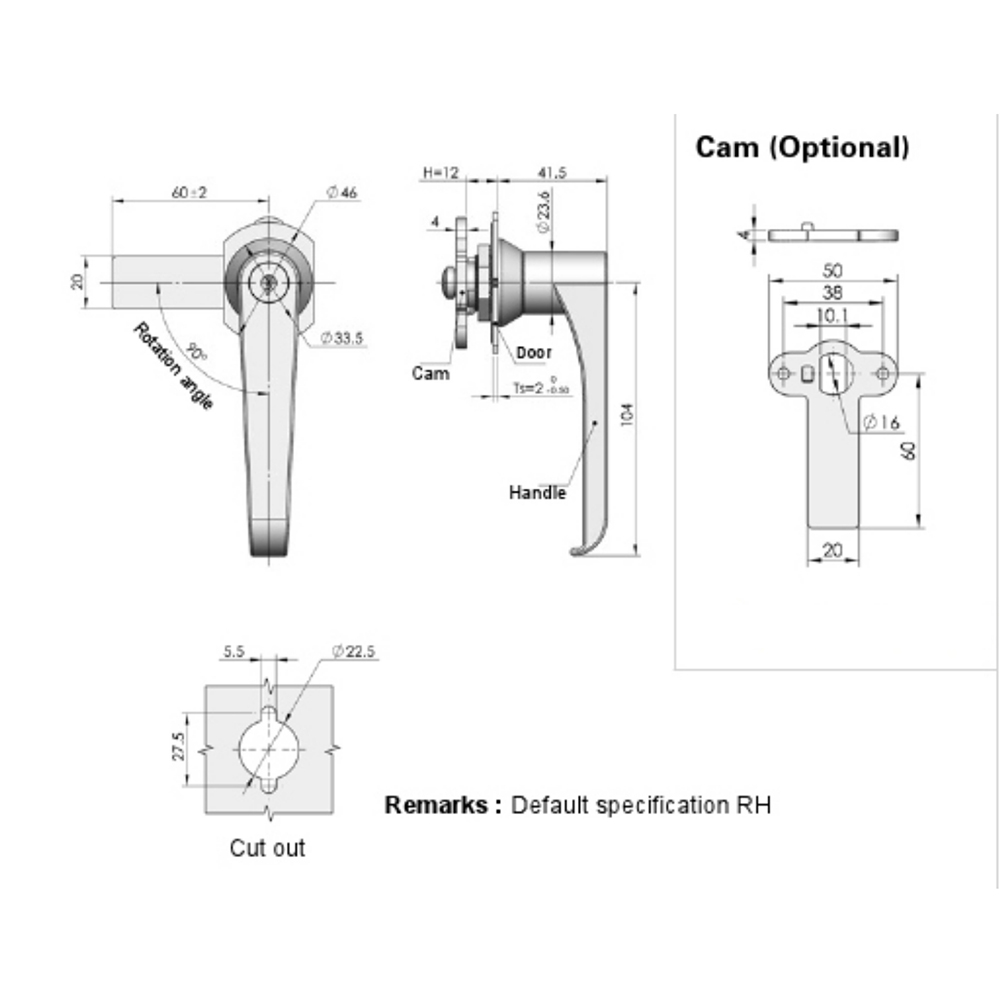

- Dimensions: Handle length of 104.5mm, base diameter of Ø46mm, compatible with cutout size Ø22.5mm x 27.5mm.
Applications
- Commonly used in industrial enclosures, cabinets, and machinery access points where secure latching is essential.
- Suitable for applications requiring robust locking with space-efficient designs.
Keywords
Latching handle, MS308-2, zinc alloy handle, chrome-plated latch, 90-degree rotation latch, industrial cabinet handle, locking handle.
