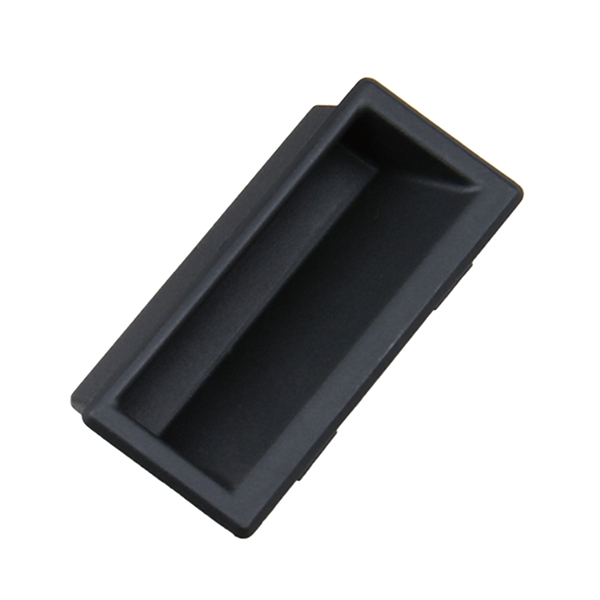

LS537-2 Flush Pull Handle, Nylon Material, Textured Matte Finish
The LS537-2 Flush Pull Handle is an efficient and durable hardware solution designed for low-profile applications. Made of high-strength nylon, it features a textured matte finish that enhances both aesthetics and functionality. This handle is ideal for applications requiring a flush-mounted design, offering smooth installation and excellent reliability under various environmental conditions.
Material:
- Nylon (Black)
Surface Finish:
- Textured Matte Finish
Performance Specifications:
- Door Thickness Range: 0.75mm – 2.2mm
- Maximum Operating Temperature: -40°C to 120°C
- Static Load Capacity: Refer to detailed specifications.
Products Categories
Get A Free Quote
Key Features
- High-performance nylon with superior wear resistance.
- Textured finish for enhanced grip and appearance.
- Suitable for wide temperature ranges, including extreme cold and heat.
- Simple snap-in installation for a secure and reliable fit.

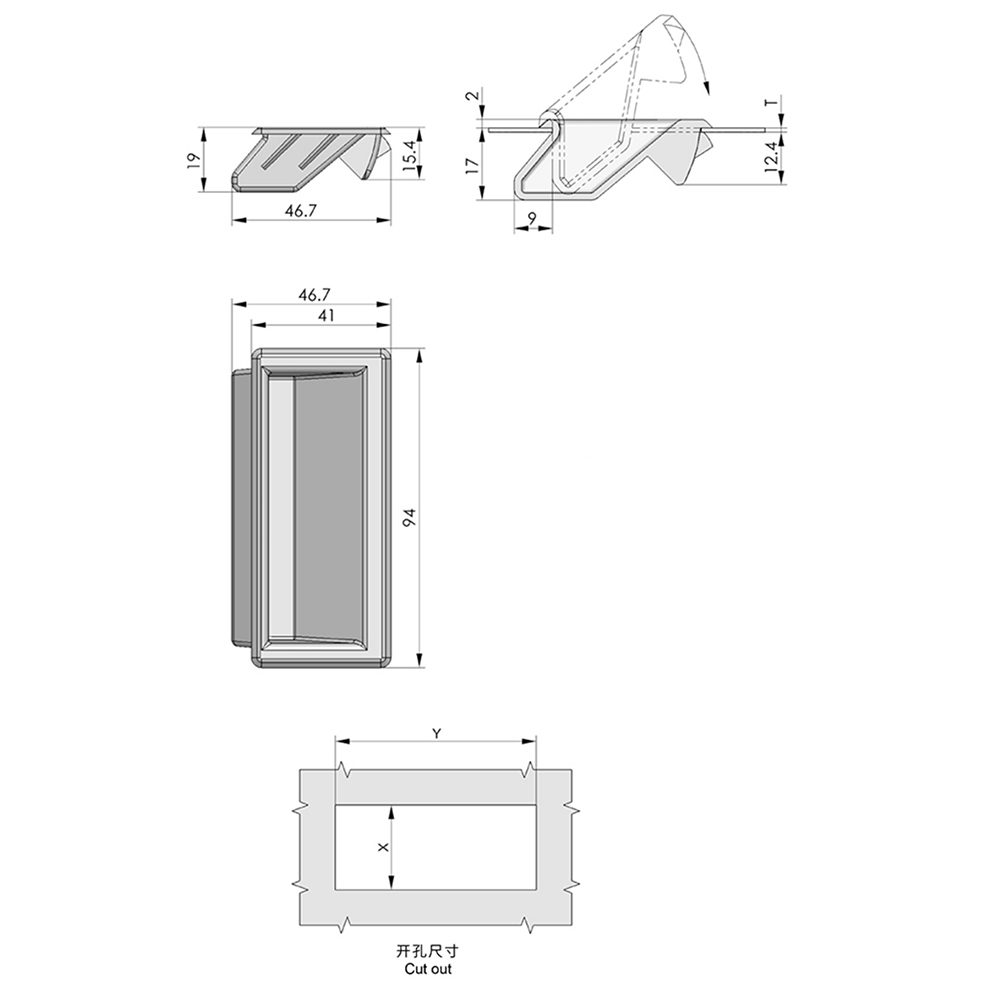

Specifications
- Door Panel Thickness (Ts): 0.75mm, 1.0mm, 1.5-2.2mm
- Panel Cutout X: 34.8±0.2mm, 35±0.2mm, 36±0.3mm
- Panel Cutout Y: 85±0.2mm
Applications
- Used in industrial cabinets, machinery covers, and other access panels requiring a sleek, recessed pull handle design.
Keywords
Flush Pull Handle, LS537-2, Nylon Pull Handle, Low-Profile Handle, Snap-In Handle, Textured Handle, Panel Access Hardware, LS537 Series, Black Nylon Flush Pull, Panel Handle.
