LS511 Grab Handle, Surface Mount, Multiple Length Options
The LS511 series grab handle is designed for high durability and versatile applications. With options in carbon steel, stainless steel, and zinc alloy, it meets diverse needs for strength and aesthetic appeal. Its ergonomic design and robust construction ensure reliable performance in demanding environments.
Material:
- Carbon Steel (Bright Polished)
- Stainless Steel (Polished or Matte)
- Zinc Alloy (Bright Polished)
Surface Finish and Color/Appearance:
- Polished Bright Finish
- Matte Finish (for stainless steel variants)
Products Categories
Get A Free Quote
Key Features
- Ergonomic design for comfortable handling
- High static load capacity of 1800N (specific to LS511-100)
- Wide range of material and finish options
- Available in multiple lengths to suit different applications

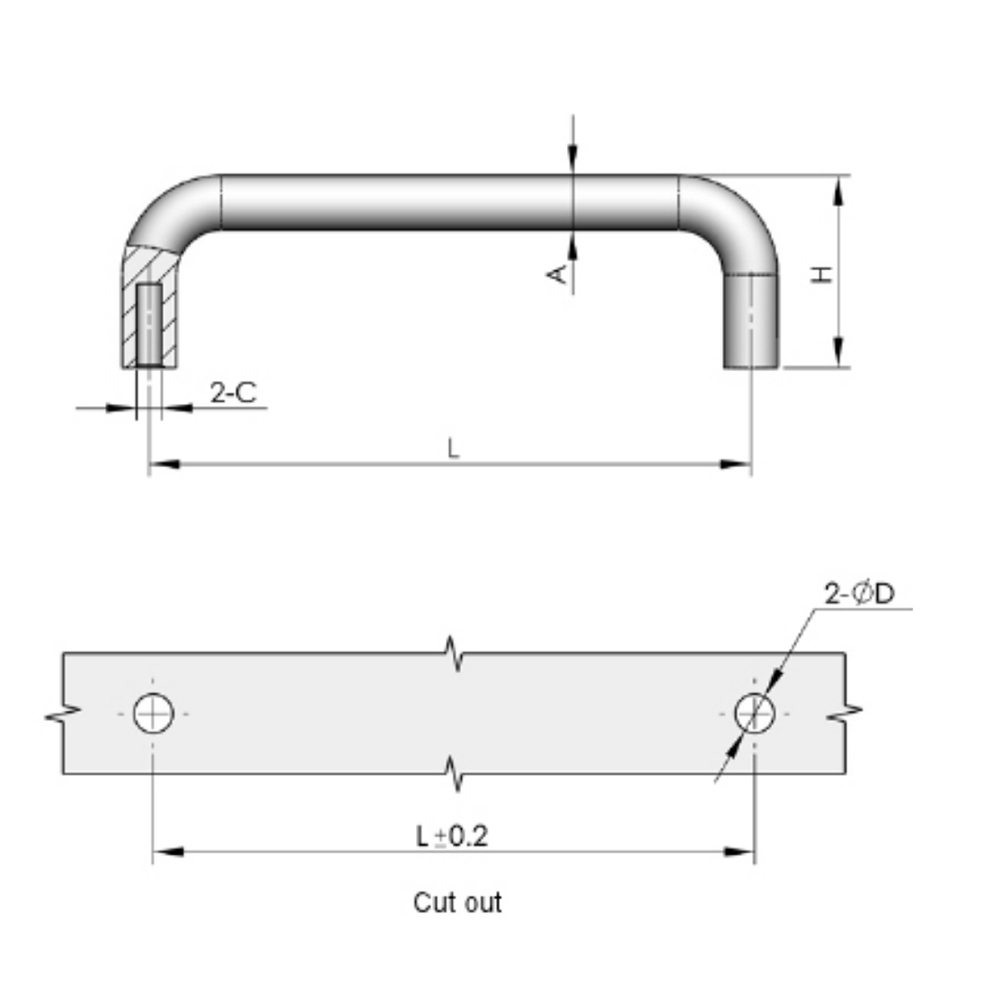

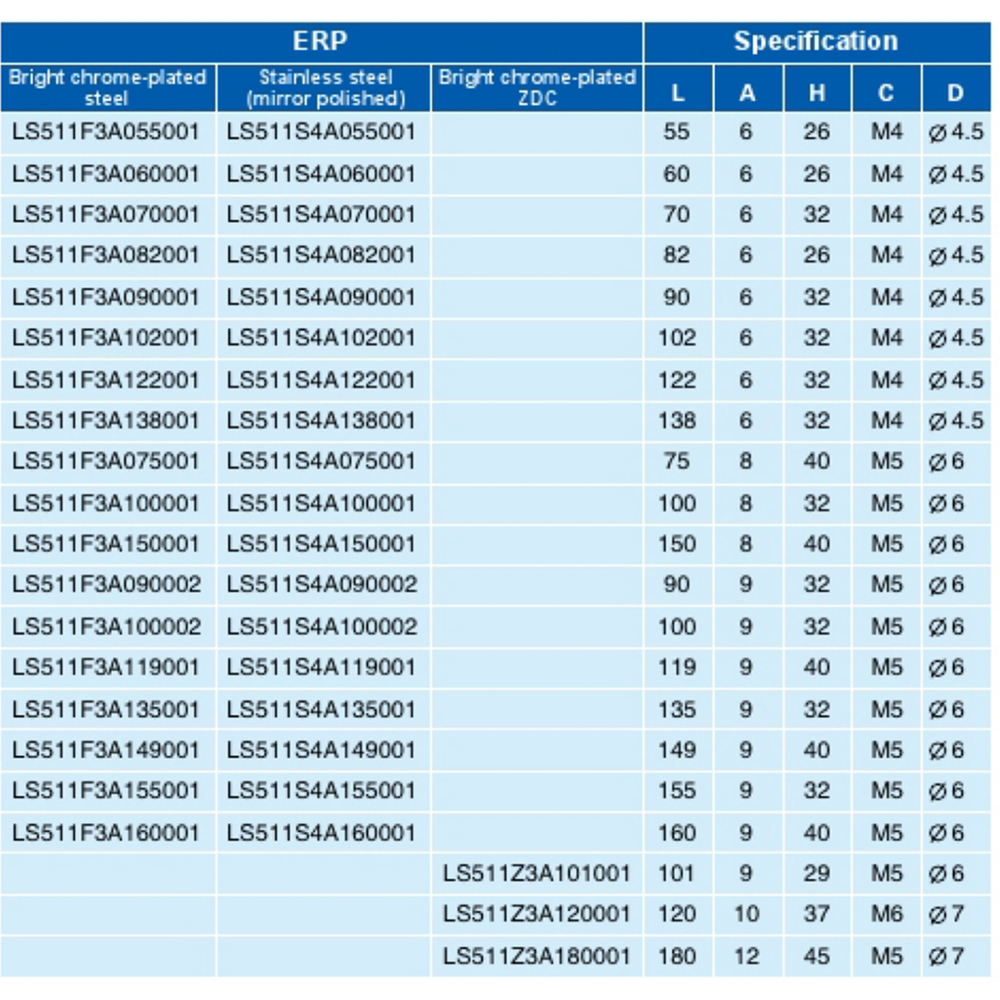

Specifications
- Length (L): 55mm to 180mm
- Diameter (d): 6mm to 12mm
- Height (H): 26mm to 45mm
- Hole Diameter (D): Ø4.5mm to Ø6mm
- Thread Size (d1): M4 to M6
Applications
Ideal for use in industrial equipment, transportation, enclosures, and control panels requiring a robust and visually appealing handle solution.
Keywords
LS511-B55, LS511-B60, LS511-B70, LS511-B90, LS511-B102, LS511-B122, LS511-B138, LS511-AS75, LS511-AS100, LS511-AS150, LS511-Z101, LS511-Z120, LS511-Z180
