DK725-1/DK725-2 Push-to-Close Slide Latch, Snap-In Design, ABS/PA Material
DK725-1/DK725-2 Push-to-Close Slide Latch, Snap-In Design, ABS/PA Material

DK725-1/DK725-2 Push-to-Close Slide Latch, Snap-In Design, ABS/PA Material

The DK725-1/DK725-2 Push-to-Close Slide Latch provides a compact and secure solution for light to medium-duty applications. Designed for seamless integration, the latch features a snap-in mechanism that simplifies installation and enhances operational efficiency.

Material:

  • Latch Body: High-quality ABS or PA material
  • Spring: Durable stainless steel
  • Surface Finish:
  • Precision-molded with a smooth, durable surface
  • Color/Appearance:
  • Available in Gray or Black
Products Categories
Get A Free Quote
Contact Form Demo (#3)

Key Features

  • Push-to-Close Mechanism: Easy and reliable operation for quick access.
  • Snap-In Installation: Quick and tool-free panel mounting.
  • Compact Design: Ideal for lightweight panels and tight spaces.
  • Durable Build: ABS/PA material offers impact resistance and long-term durability.
  • Wide Operating Range: Functional in temperatures ranging from -40°C to 60°C.

Specifications

DK725-1/DK725-2 Push-to-Close Slide Latch, Snap-In Design, ABS/PA Material



  • Maximum Static Load: 300N
  • Installation Cutout Dimensions:
    • Panel Thickness: 1.5mm to 2mm
    • Opening Dimensions: 47mm x 28mm

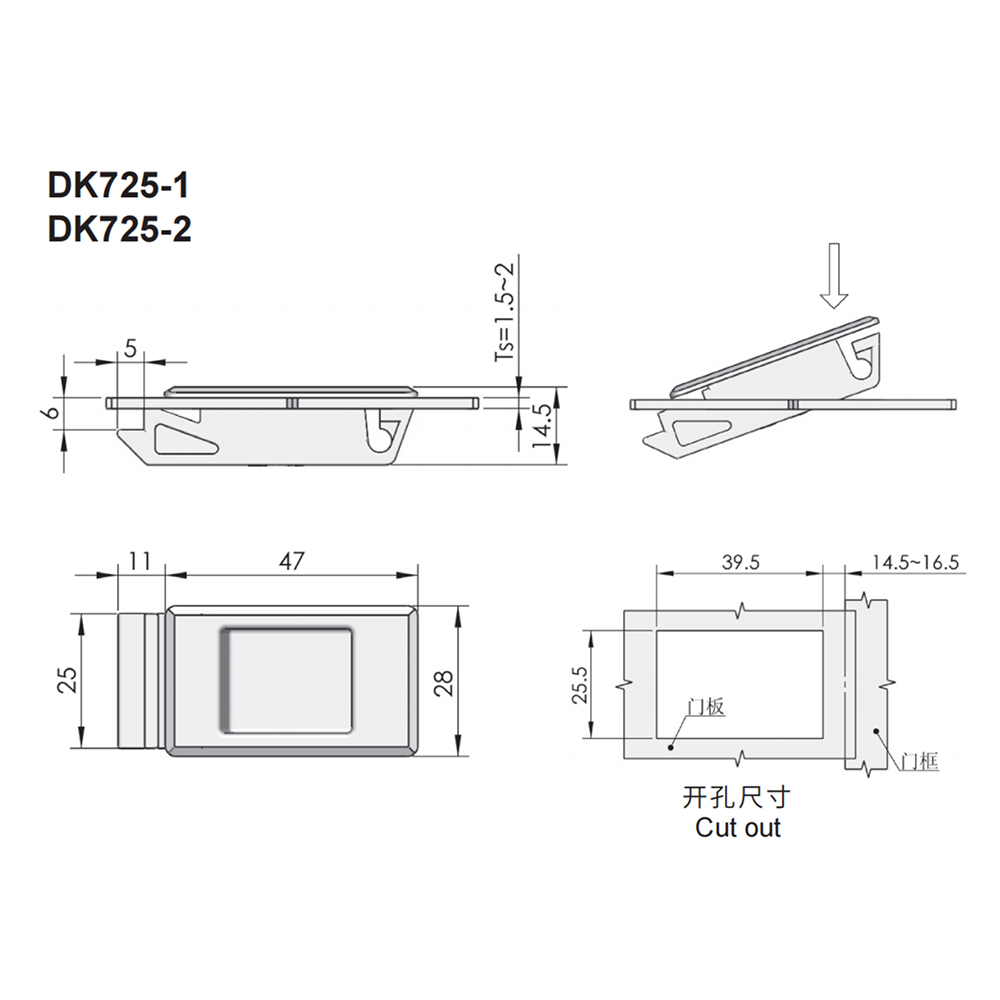

  • Overall Dimensions: Refer to the technical drawing for precise measurements.

Applications

  • Industrial Panels: Simplifies access to control and monitoring systems.
  • Electrical Enclosures: Ensures secure closure for safety-critical equipment.
  • Consumer Equipment: Suitable for lightweight doors and access panels.

Keywords

A3-40-625-12, A3-40-635-12, A3-20-410-11, A3-40-630-12, A3-50-730-22, DK725-1, DK725-2, Push-to-Close Latch, Snap-In Latch, ABS Slide Latch, PA Slide Latch, Push Latch, Compact Door Latch, Industrial Latch, Lightweight Panel Latch.
