DK634 Zinc-Plated Steel Bolt Latch, 250N Static Load Capacity
The DK634 bolt latch is a versatile and durable component, designed for applications requiring moderate static load capacity and secure closure. Constructed from high-quality carbon steel and treated with a white zinc finish, this latch provides enhanced corrosion resistance and a sleek appearance. The latch features a robust locking mechanism, making it suitable for a variety of industrial and commercial uses.
Material:
- Body and Bolt: Carbon Steel
- Surface Treatment: White Zinc Finish for corrosion resistance
- Performance Parameters:
- Maximum Static Load: 250N
Products Categories
Get A Free Quote
Key Features
- High Durability: Made from carbon steel to withstand repeated use in demanding environments.
- Corrosion Resistance: White zinc finish offers excellent protection against rust and environmental wear.
- Compact Design: Small yet robust construction suitable for various industrial applications.
- Easy Installation: Designed for straightforward mounting with M5 screws.
Applications
- Cabinet doors
- Industrial enclosures
- Toolboxes
- Storage compartments

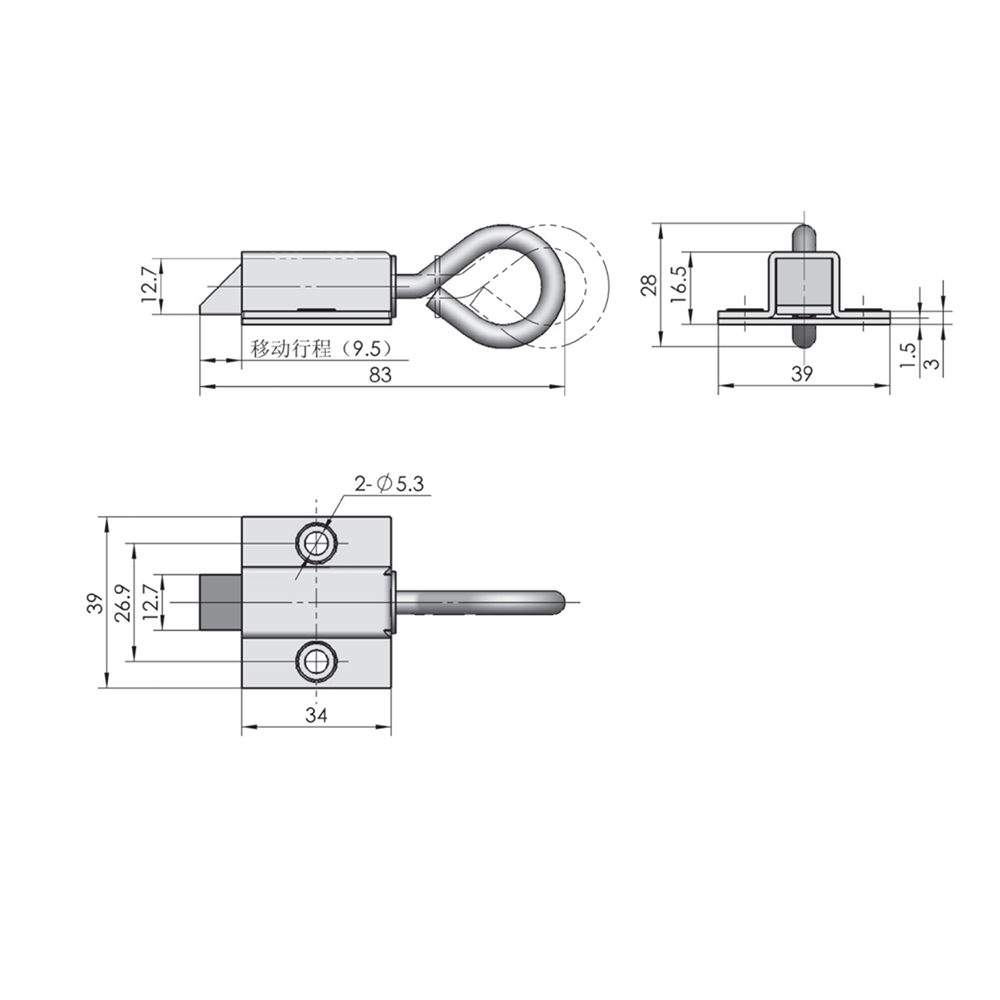

Specifications
- Overall Dimensions: 83mm length x 39mm width
- Bolt Stroke (Travel Distance): 9.5mm
- Mounting Hole Diameter: 5.3mm
- Mounting Hole Center Spacing: 34mm
