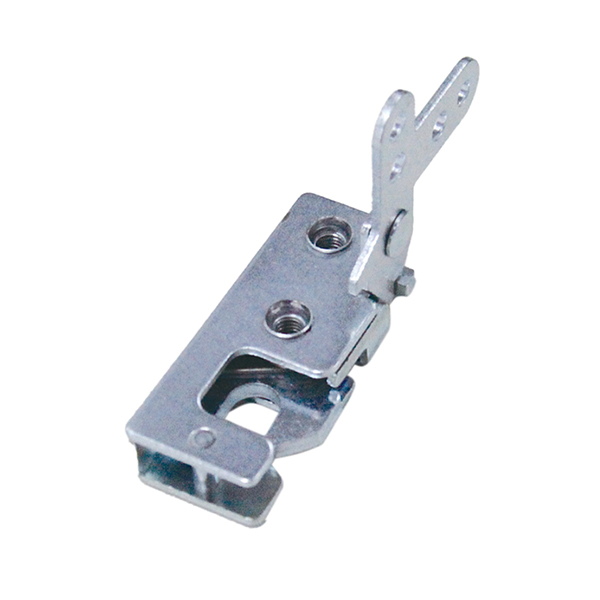

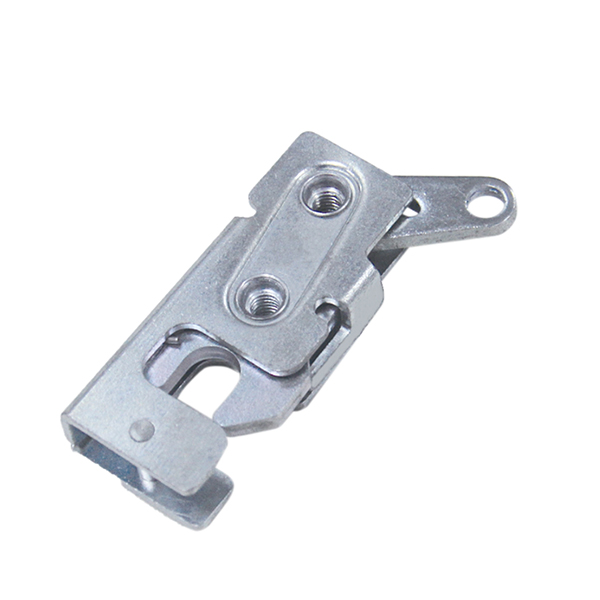

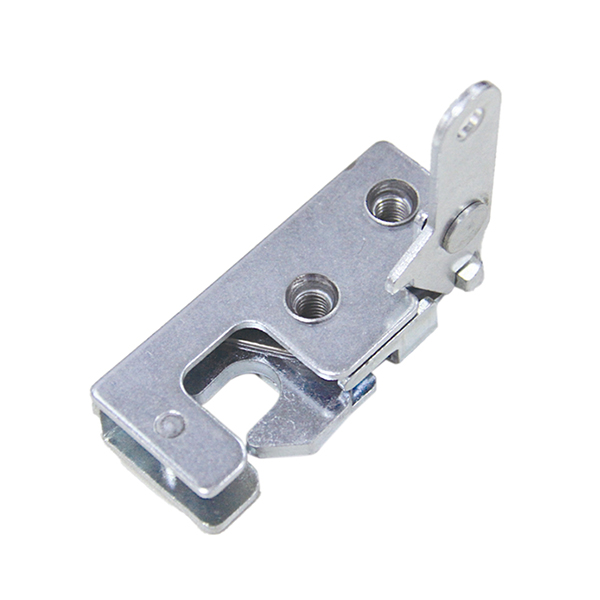

DK618-8 Heavy-Duty Single-Stage Rotary Latch with Trivalent White Zinc Plating
The DK618-8 rotary latch is a versatile, single-stage locking solution designed for medium-duty applications. Manufactured from durable carbon steel with a trivalent white zinc finish, this latch offers superior corrosion resistance and dependable performance. It supports both left-hand (DK618-8-Z) and right-hand (DK618-8-Y) configurations, making it suitable for various industrial and commercial uses.
Material:
- Base Material: Carbon Steel
- Surface Finish: Trivalent White Zinc Plating
-
Surface Finish and Color/Appearance:
- Bright, polished finish achieved with trivalent white zinc plating for enhanced durability and aesthetics.
Products Categories
Get A Free Quote
Key Features
- Single-Stage Locking Mechanism: Provides secure and reliable engagement.
- Corrosion Resistance: Zinc plating protects against rust and environmental wear.
- Versatile Orientation: Available in left-hand (DK618-8-Z) and right-hand (DK618-8-Y) configurations for flexible installations.
- Compact Design: Ideal for limited-space applications.
- Durable Construction: High-strength carbon steel ensures longevity in demanding environments.
Specifications
- Maximum Static Load: 320N

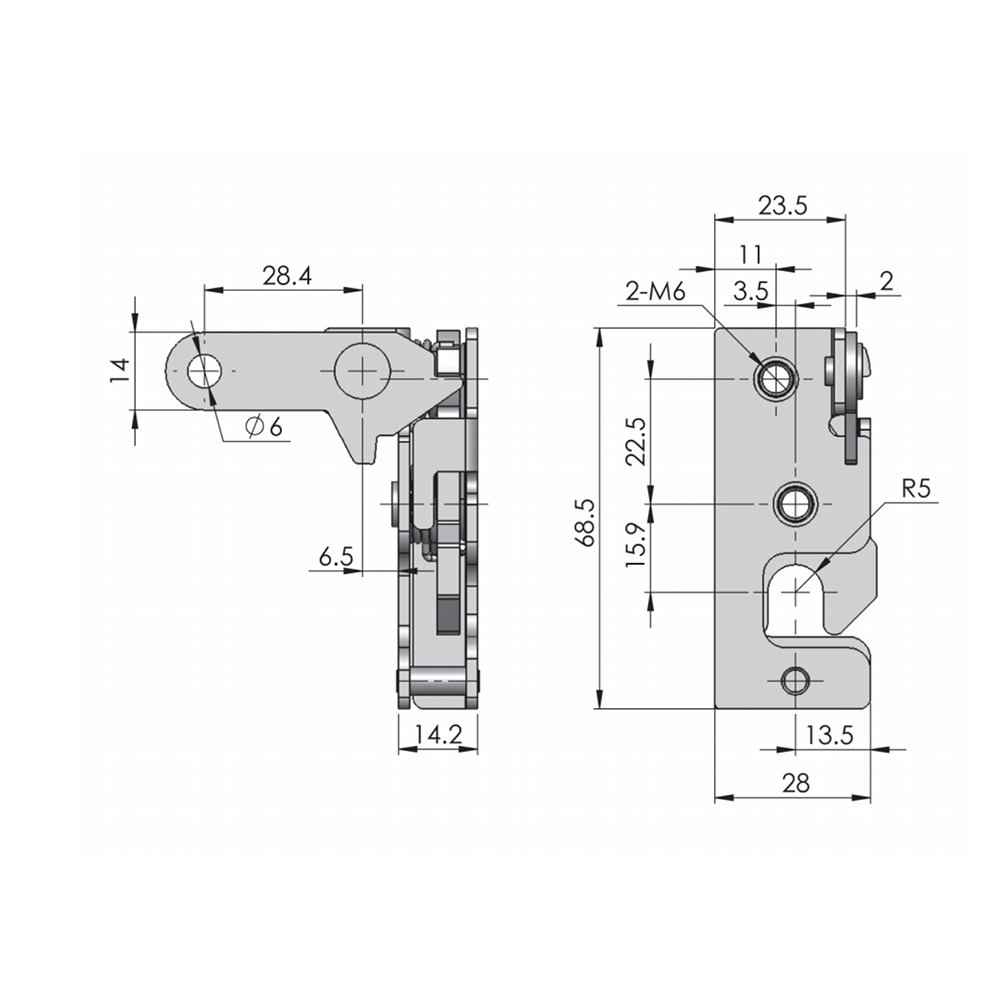

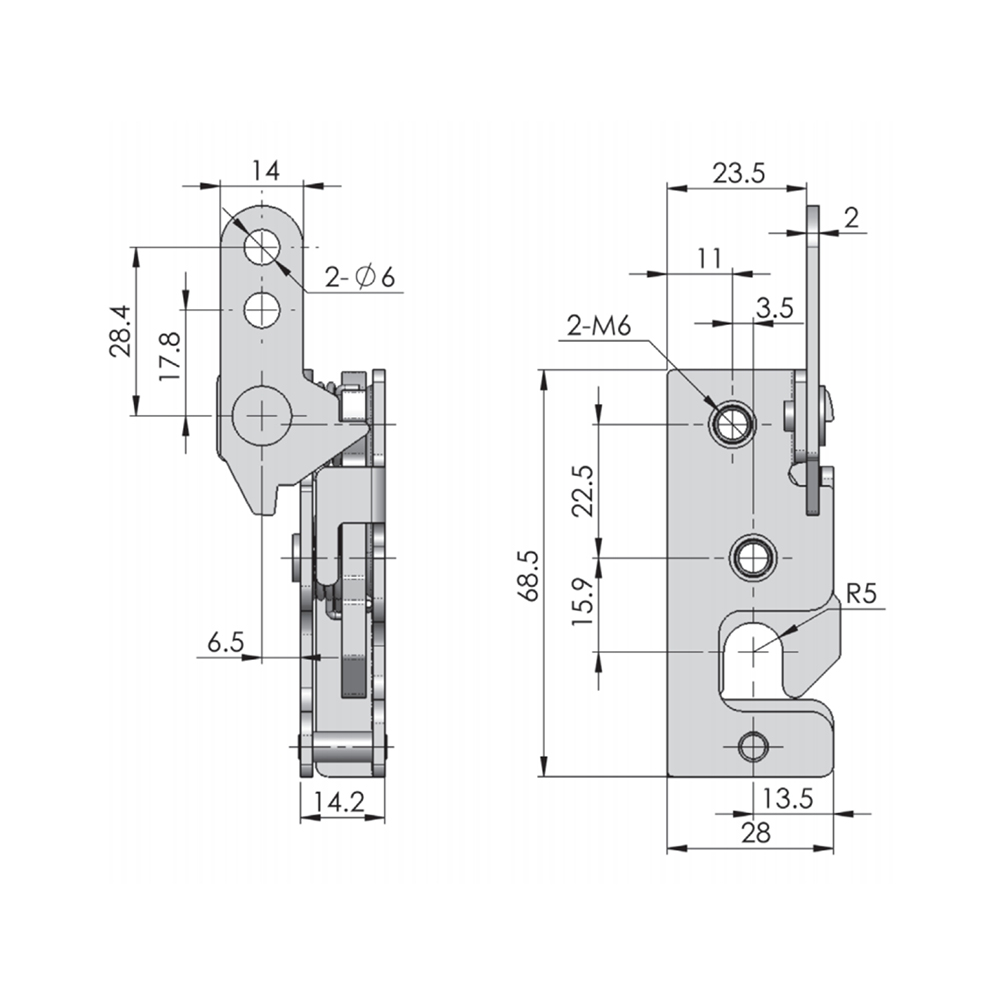

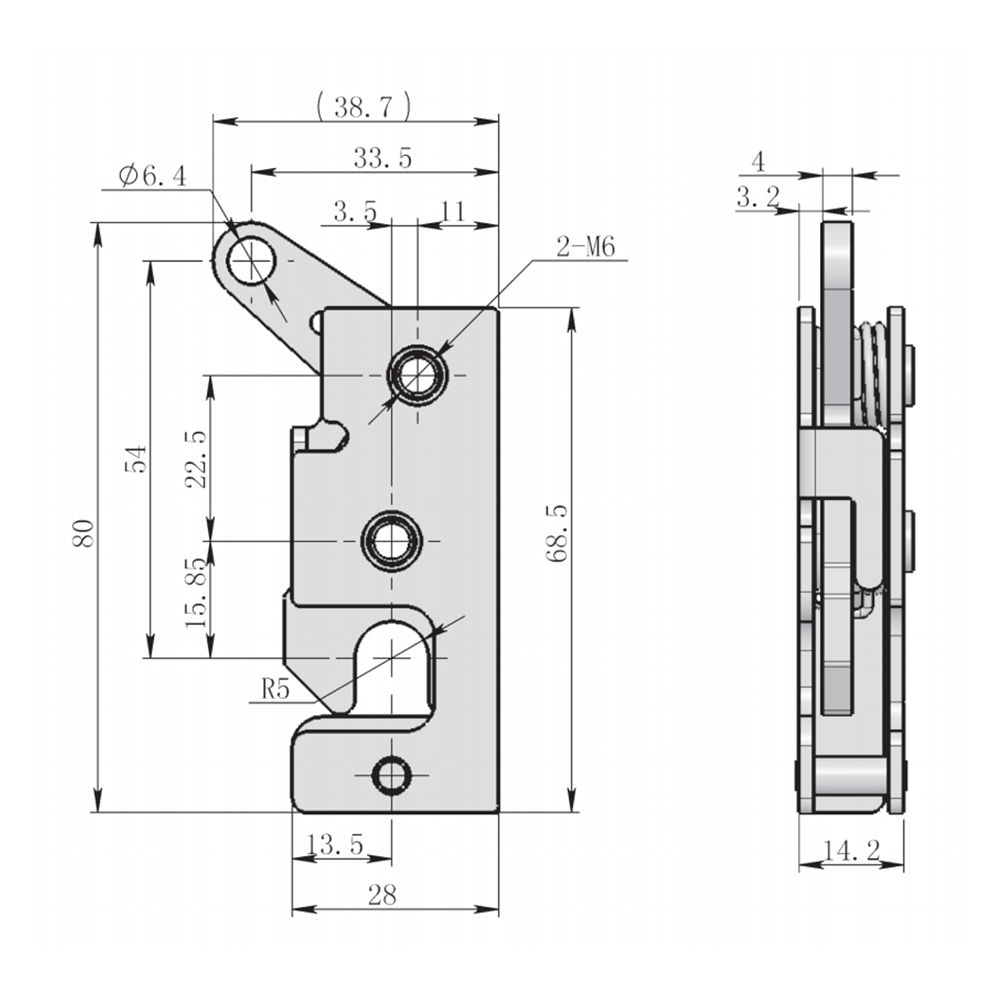

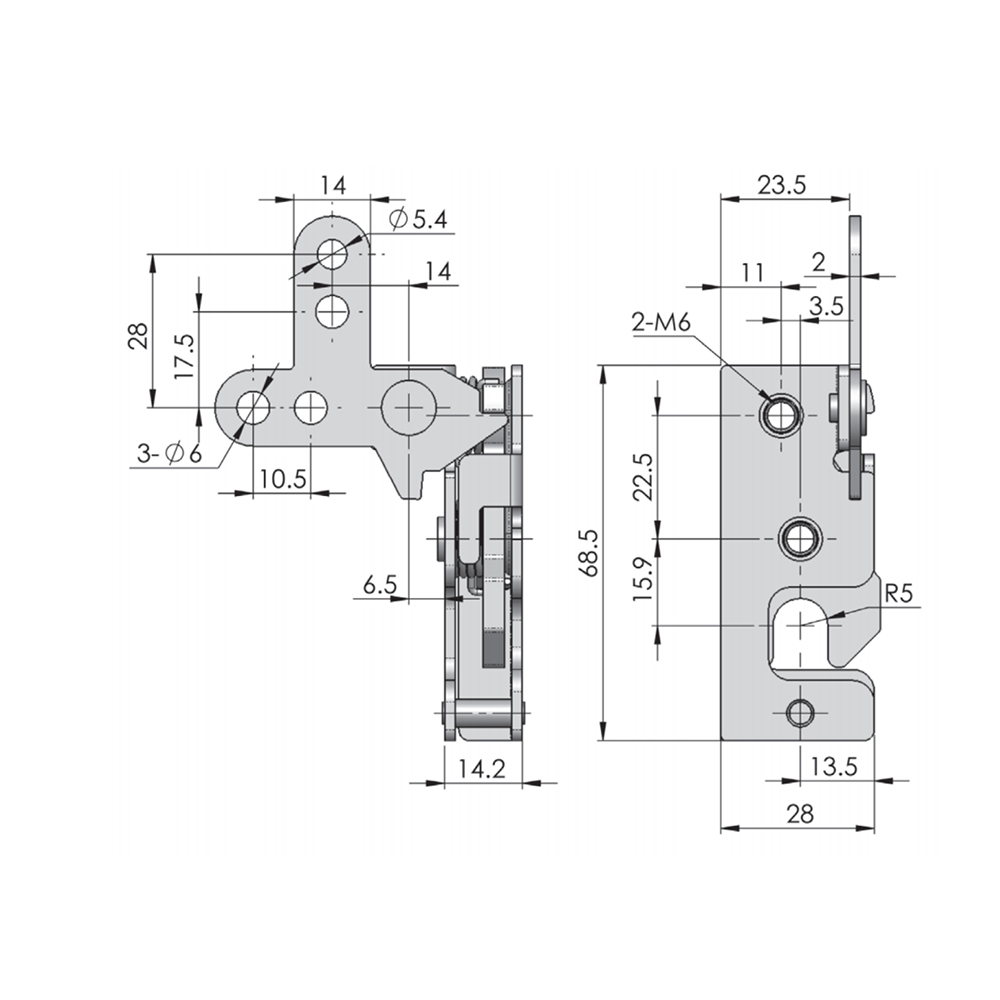

- Dimensions: Contact for detailed technical drawings.
- Mounting Options: Supports M6 threaded screws or rivets.
Applications
- Industrial machinery and enclosures
- Automotive and marine compartments
- Toolboxes and secure storage systems
- Commercial equipment panels
Keywords
- DK618-8 rotary latch DK618-9
- DK618-8
- DK618-7
- DK618-6
- DK618-8-Z left-hand latch
- DK618-8-Y right-hand latch
- Zinc-plated rotary latch
- R4-10-10-105-10 latch equivalent
- R4-10-10-115-20 latch equivalent
- Carbon steel latch
- Heavy-duty panel latch
