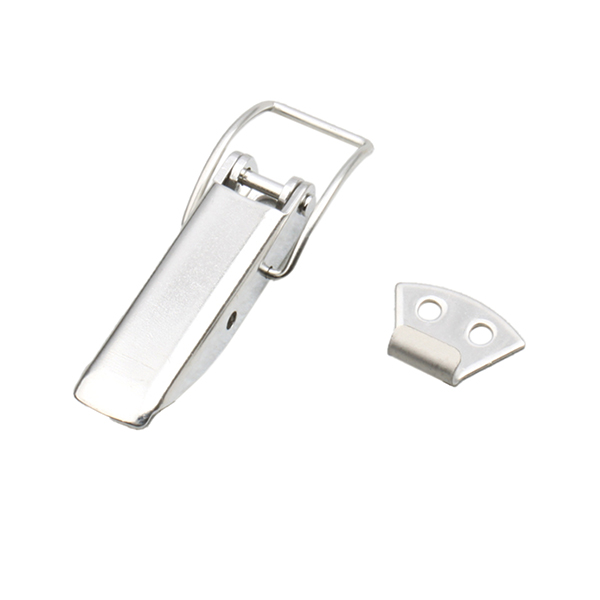

DK617 Stainless Steel Over-Center Latch with Wire Bail Handle
The DK617 over-center latch is a robust and compact solution for applications requiring consistent tension and secure closure. Designed with a stainless steel body and wire bail, it is ideal for industrial, marine, and automotive enclosures. With a polished finish, the DK617 delivers both performance and durability, making it suitable for vibration-prone environments.
Material:
- Base and Handle: Stainless Steel
-
Surface Finish and Color/Appearance:
- Polished stainless steel finish for corrosion resistance and a professional appearance.
Products Categories
Get A Free Quote
Key Features
- High Tension Capability: Rated for a static load of 320N, ensuring reliable performance in demanding applications.
- Compact Design: Ideal for space-limited installations.
- Durable Construction: Stainless steel material provides exceptional strength and corrosion resistance.
- Versatile Mounting Options: Compatible with M4 screws or rivets for quick and secure installation.
- Over-Center Action: Ensures consistent tension and prevents accidental disengagement.

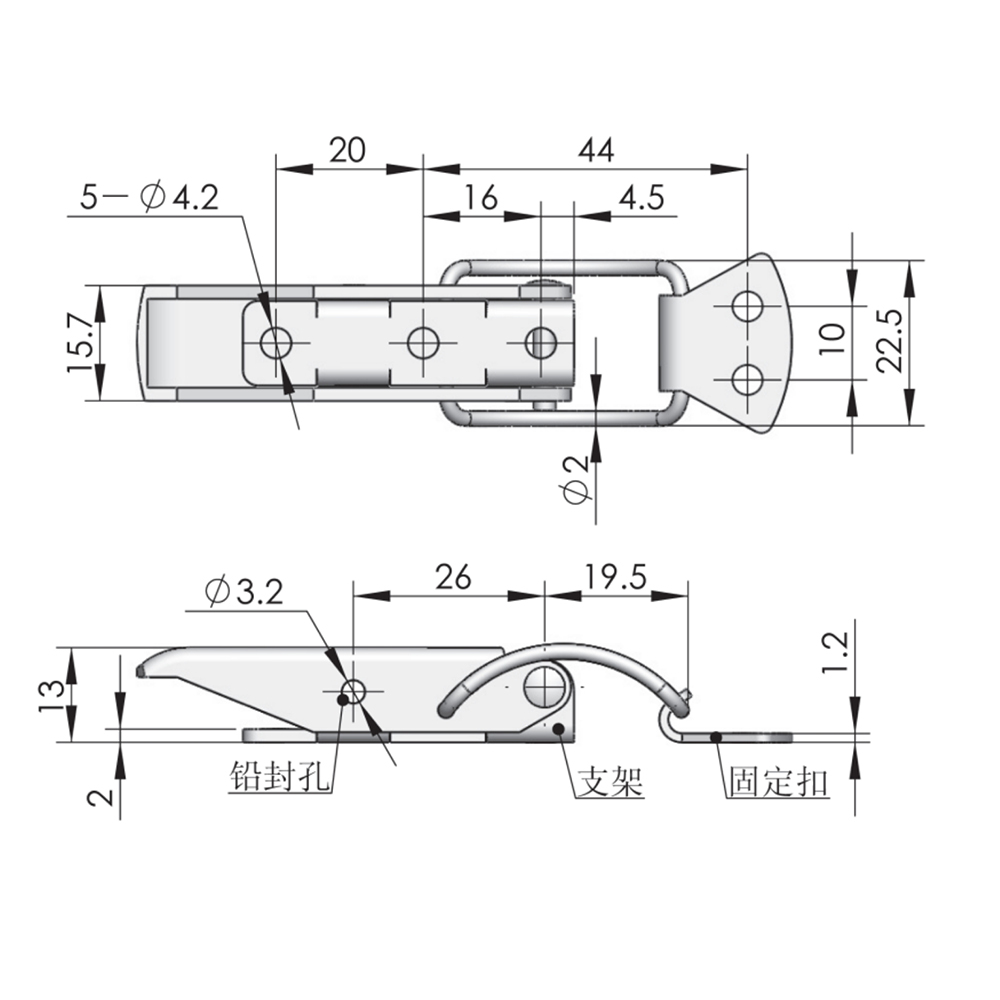

Specifications
- Maximum Static Load: 320N
- Dimensions:
- Length: 44mm
- Mounting Hole Diameter: Ø4.2mm
- Base Width: 22.5mm
- Installation: Compatible with M4 screws or Ø4.2mm rivets.
Applications
- Industrial machinery enclosures
- Marine compartments and cabinets
- Automotive panels and toolboxes
- Refrigeration and cold storage units
Keywords and Comparable Part Numbers
- DK617 latchDK617-3
- DK617-2
- DK617-5
- DK617
- Stainless steel draw latch
- Wire bail over-center latch
- 320N tension latch
- Comparable part numbers: TL-20-101, TL-40-101, TL-20-201
