DK610 Stainless Steel Sliding Bolt Latch with Electrolytic Finish, 765N Load Capacity
The DK610 sliding bolt latch is a durable and secure fastening solution, designed for medium-duty applications requiring reliable performance and corrosion resistance. Constructed from high-grade stainless steel and featuring an electrolytic finish, it offers long-lasting durability in industrial and commercial environments.
Material:
- Body and Components: High-grade Stainless Steel
-
Surface Finish and Color/Appearance:
- Electrolytic Finish: Ensures a polished surface with enhanced resistance to corrosion and wear.
Products Categories
Get A Free Quote
Key Features
- High Load Capacity: Supports a maximum static load of 765N, making it ideal for medium-duty applications.
- Durable Construction: Stainless steel body ensures longevity and resistance to rust and environmental wear.
- Low Maintenance: Electrolytic finish minimizes surface deterioration and extends product life.
- Secure Sliding Bolt Mechanism: Provides a firm and reliable locking system for doors, panels, and enclosures.
- Easy Installation: Pre-configured mounting holes simplify setup using standard fasteners.
Specifications
- Maximum Static Load: 765N

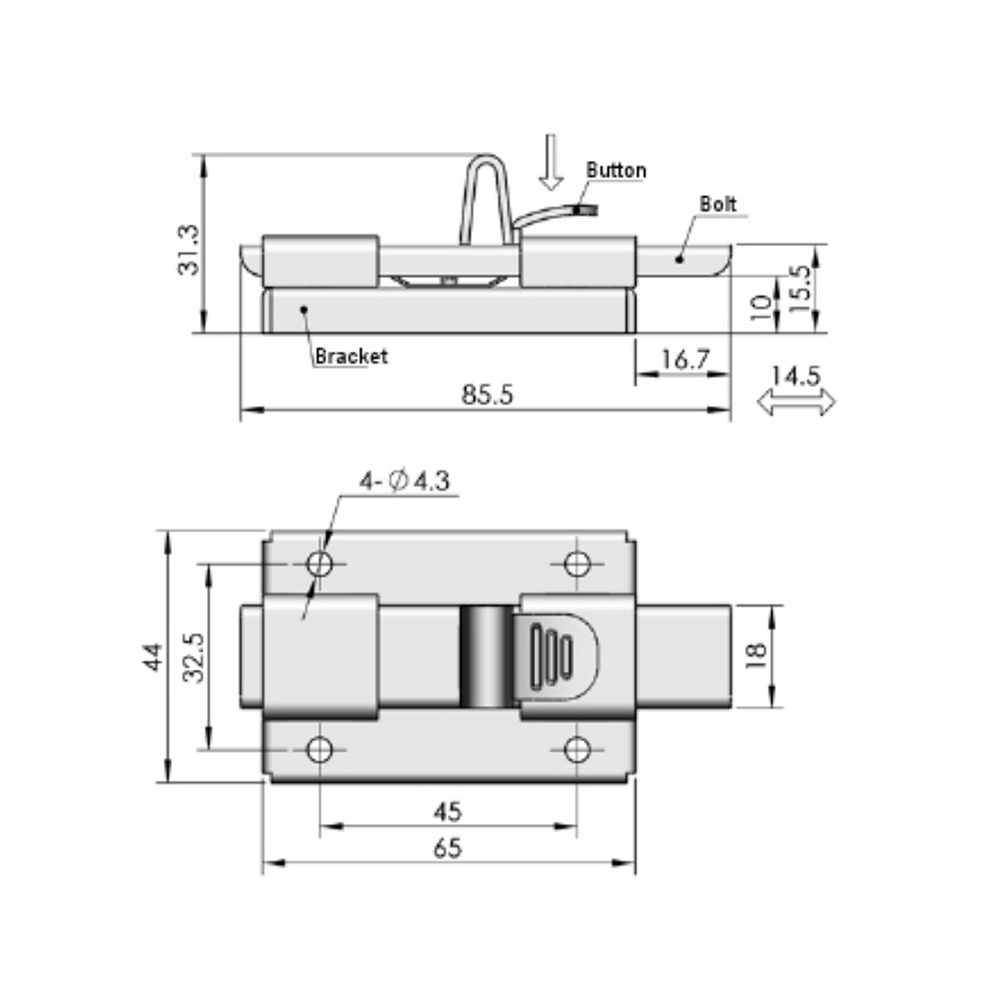

- Dimensions:
- Overall Length: 85.5mm
- Mounting Hole Diameter: Ø4.3mm
- Mounting Hole Spacing: 65mm (lengthwise), 32.5mm (widthwise)
- Installation: Supports Ø4.3mm screws or rivets for secure mounting.
Applications
- Industrial cabinets and enclosures
- Secure storage units
- Commercial panels and toolboxes
- Automotive and marine compartments
