DK609 Flexible Over-Center Rubber Handle Draw Latch, 45N Clamping Force

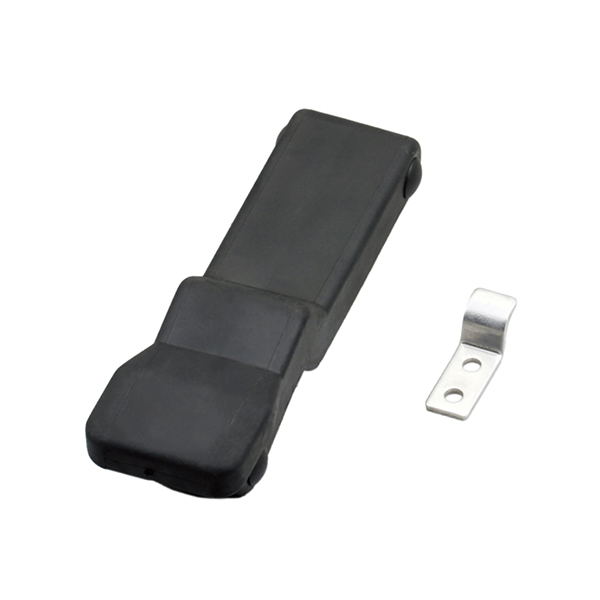

The DK609 draw latch is a lightweight and flexible fastening solution, designed for light-duty applications requiring impact cushioning and alignment adjustment. Constructed with a durable thermoplastic rubber handle and stainless steel components, it provides reliability, corrosion resistance, and ergonomic handling. Its compact, low-profile design is ideal for panels, enclosures, and light-duty closures.
Material:
- Latch Handle: Black Thermoplastic Rubber
- Bracket and Keeper: Stainless Steel
-
Surface Finish and Color/Appearance:
- Handle: Black Thermoplastic Rubber
- Metal Components: Polished Stainless Steel for a modern, corrosion-resistant finish.
Products Categories
Get A Free Quote
Key Features
- Low Clamping Force: Rated for a maximum clamping force of 45N, suitable for small enclosures and lightweight applications.
- Flexible Design: Over-center latch design accommodates minor misalignments while providing secure fastening.
- Impact Cushioning: Rubber handle absorbs impact and reduces vibration during operation.
- Ergonomic and Compact: Easy-to-grip handle in a low-profile form factor saves space.
- Corrosion Resistance: Stainless steel components ensure durability in harsh environments.
Specifications
- Maximum Static Load: 45N

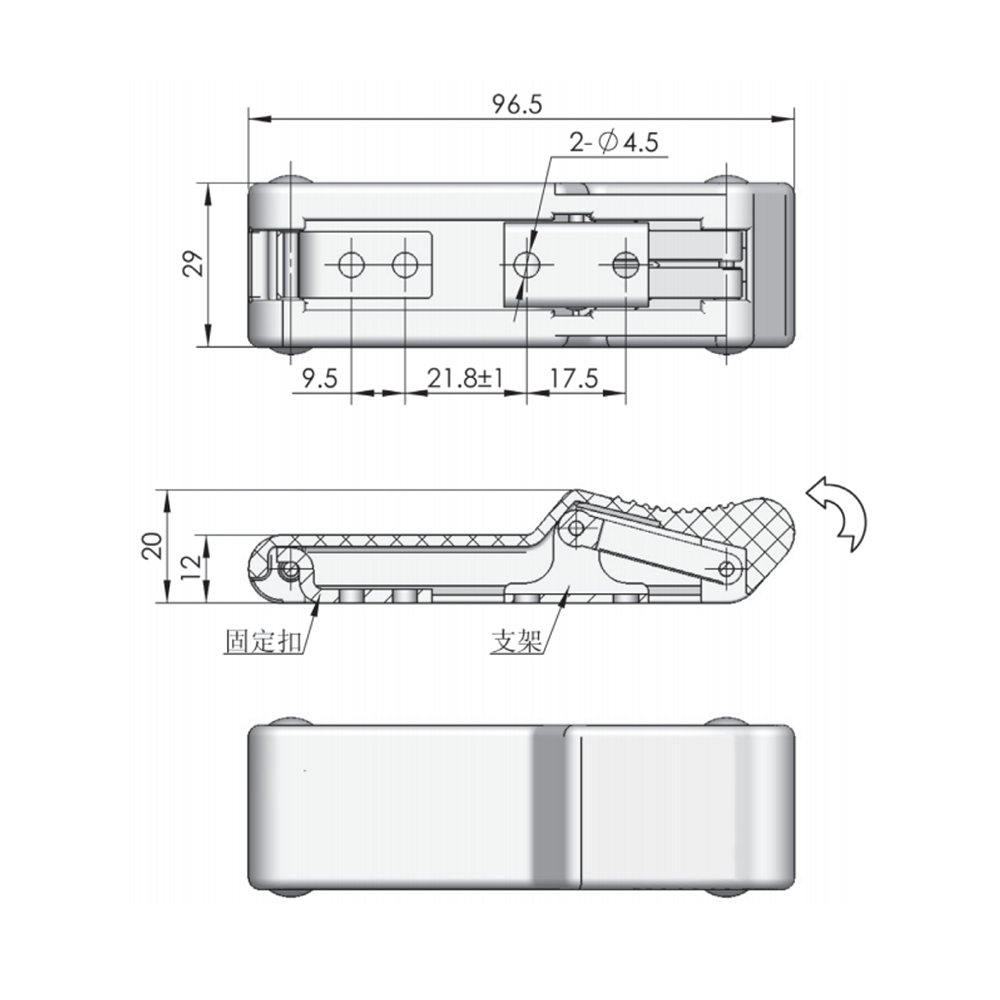

- Dimensions:
- Total Length: 96.5mm
- Mounting Hole Diameter: Ø4.5mm
- Mounting Hole Spacing: 21.8 ±1mm
- Installation: Compatible with Ø4.5mm screws or rivets for secure mounting.
Applications
- Lightweight panels and enclosures
- Electrical and industrial cabinets
- Toolboxes
- Marine and automotive compartments
Comparable Part Numbers for Keywords
- C7-10
- C7-12
- C7-20
Keywords
- DK609 latch DK609-1
- Flexible draw latch 45N
- Compact rubber handle latch
- Stainless steel flexible latch
- Over-center latch C7-10 equivalent
