DK601 Heavy-Duty Zinc Alloy Draw Latch with Key Lock, 750N Load Capacity
The DK601 heavy-duty draw latch is a secure and versatile fastening solution, designed for industrial and commercial use. Made from durable zinc alloy with a robust stainless-steel support frame, it is capable of withstanding up to 750N static load. Its tamper-resistant construction and sleek design make it suitable for a wide range of applications.
Material:
- Base: Zinc Alloy
- Support Frame: Stainless Steel
- Keeper: Zinc Alloy
-
Surface Finish and Color/Appearance:
- Powder-coated finish in black (matte gloss) for corrosion resistance and modern aesthetics.
Products Categories
Get A Free Quote
Key Features
- High Load Capacity: Rated for up to 750N static load, providing reliable fastening strength.
- Locking Option: Compatible with K080 keys for additional security, ensuring safe and tamper-proof usage.
- Durable Design: Tamper-resistant construction made with premium materials, ideal for demanding environments.
- Customizable Finish: Available in a sleek black matte gloss finish to match diverse applications.
- Simple Installation: Features pre-configured mounting holes and ergonomic design for easy setup.
Specifications
- Maximum Static Load: 750N
- Optional Key: K080 (recommended for locking purposes)
- Dimensions:
- Height: 92mm
- Width: 36mm

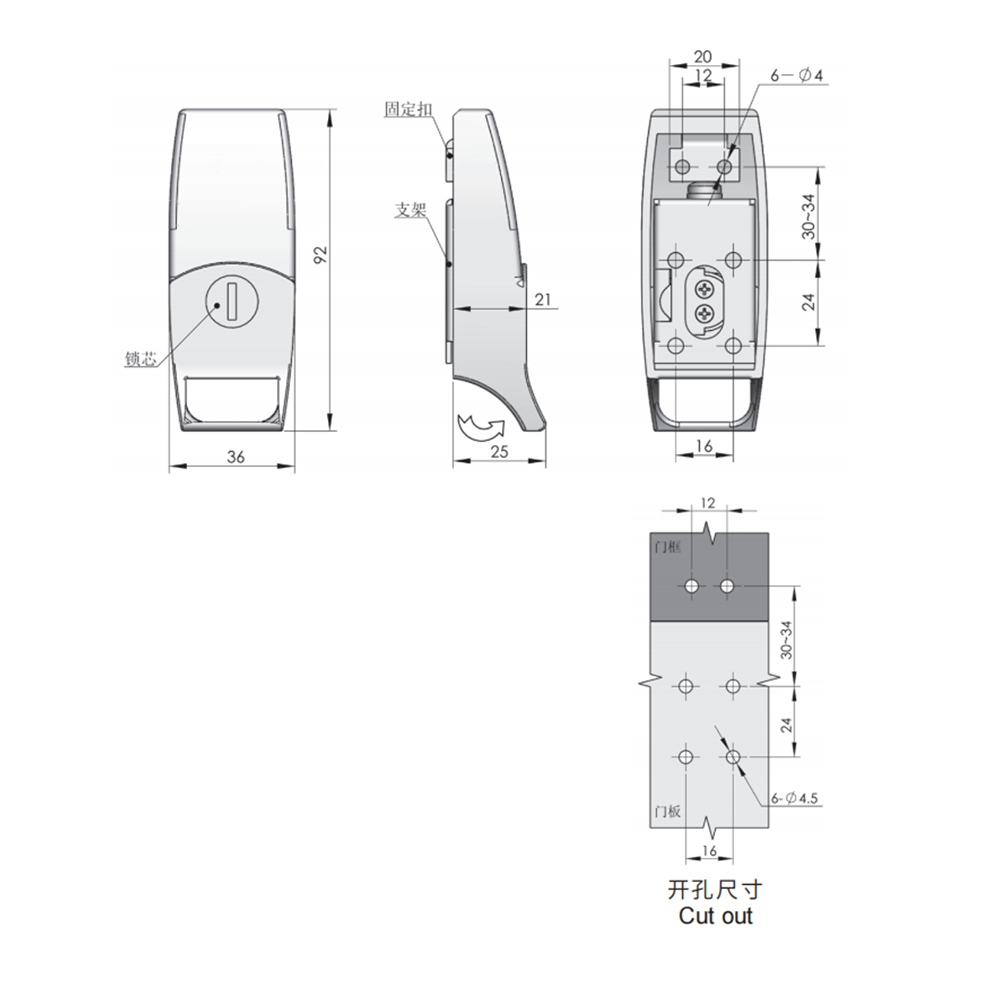

- Mounting Hole Dimensions: Ø4.5mm, with spacing as shown in the technical drawing.
- Installation: Supports M4 screws for both latch and keeper.
Applications
- Electrical and industrial enclosures
- Automotive compartments
- Marine storage units
- Heavy-duty toolboxes
- Secure cabinets and storage units
