CL295 Industrial Hinge – Black PA with Carbon Steel Pin, 180° Opening
The CL295 hinge is engineered for industrial applications requiring high load capacity and a full 180° opening range. Constructed from black PA (polyamide) with a robust carbon steel pin, it combines lightweight properties with exceptional strength. The zinc-plated finish on the pin ensures durability and resistance to wear, making this hinge ideal for demanding environments. Its compact design and reliable performance make it a versatile choice for industrial enclosures, machinery doors, and access panels.
Material and Finish:
- Material: Black PA (polyamide) body with carbon steel pin.
- Finish: Zinc plating on the pin for enhanced corrosion resistance.
Products Categories
Get A Free Quote
Key Features
- Full 180° Opening Angle: Allows complete access for easy maintenance and operation.
- High Load Capacity: Supports up to 1180N radial load and 1515N axial load.
- Durable Construction: PA body ensures lightweight yet sturdy performance, while the carbon steel pin provides excellent strength.
- Corrosion Resistance: Zinc-plated pin protects against wear and environmental factors.
- Precision Design: Features countersunk mounting holes for a secure and flush installation.
Technical Specifications
- Model Number: CL295
- ERP Code: CL295N00001

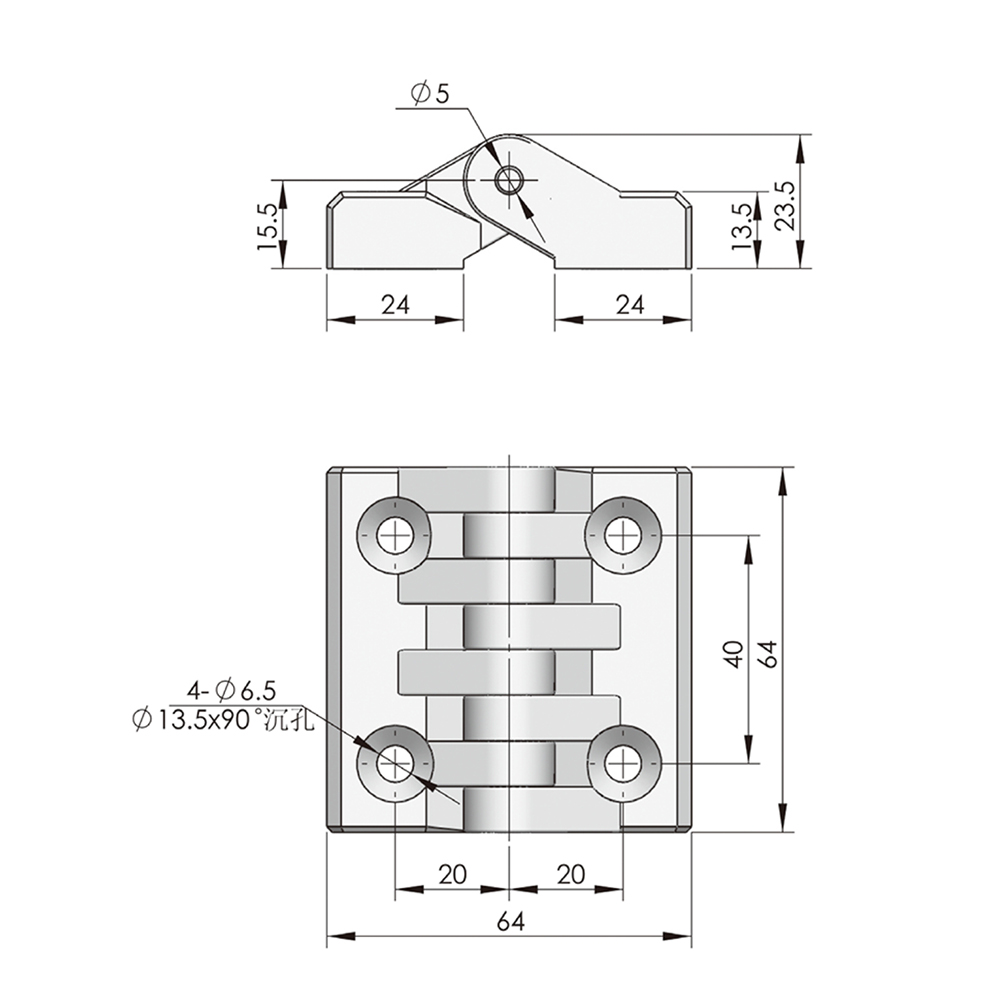

- Dimensions:
- Total width: 64mm
- Total height: 40mm
- Hole spacing: 20mm
- Mounting Holes:
- Diameter: Ø6.5mm
- Countersunk: Ø13.5mm, 90° angle
- Load Ratings:
- Radial Load: 1180N
- Axial Load: 1515N
- Maximum Opening Angle: 180°
Applications
- Industrial enclosures and cabinets.
- Machinery access panels and doors.
- Utility boxes requiring lightweight yet high-strength hinges.
- Electrical and mechanical equipment doors in high-performance environments.
