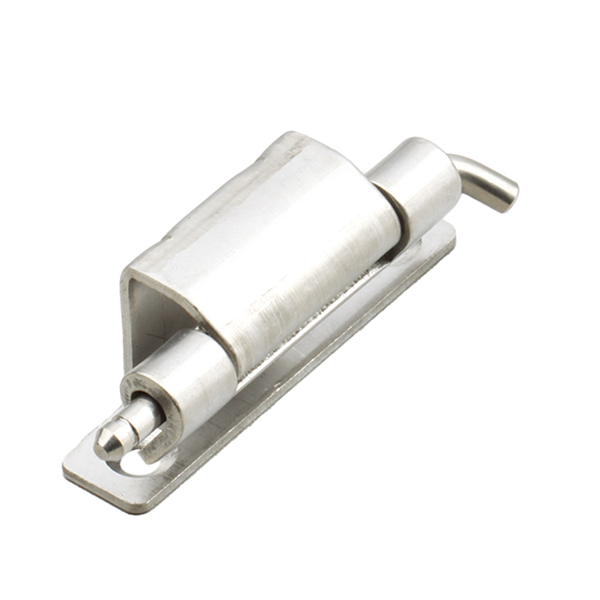

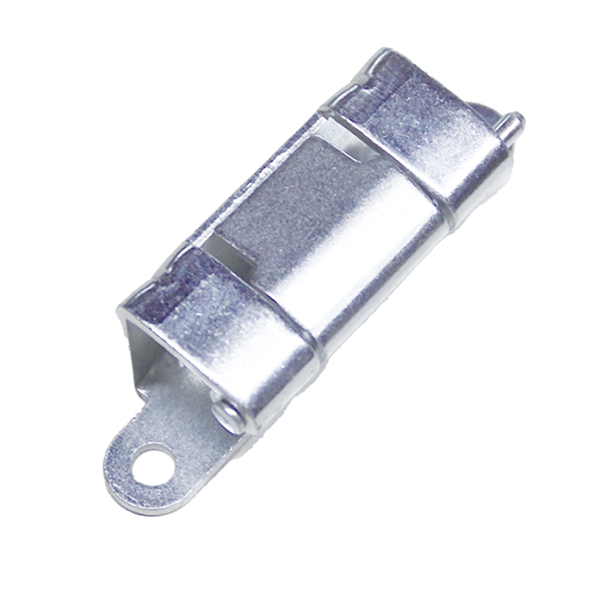

CL275-1/CL275-2/CL275-4 Industrial Hinges – Carbon Steel with Zinc Plating
The CL275 Series industrial hinges are designed to provide strong, reliable, and long-lasting functionality for various enclosure and machinery applications. Made from durable carbon steel with a corrosion-resistant zinc-plated finish, these hinges are ideal for use in demanding environments. The series offers multiple models with slight dimensional variations to meet diverse installation requirements, supporting a maximum opening angle of 120°.
Material and Finish:
- Material: High-strength carbon steel.
- Finish: Zinc plating for corrosion resistance and a polished appearance.
Products Categories
Get A Free Quote
Key Features
- 120° Opening Angle: Enables wide access for maintenance and operations.
- Durable Construction: Built to handle high static loads efficiently.
- Corrosion Resistance: Zinc plating ensures a longer lifespan in challenging environments.
- Versatile Installation: Multiple variants to accommodate various mounting configurations.
- Precision Design: Ensures smooth and reliable operation across applications.
Specifications
| Model | ERP Code | Radial Load (N) | Axial Load (N) | Length (mm) | Mounting Hole (mm) |
| CL275-1 | CL275F3D002 | 120N | 380N | 70 | Ø5.5 |
| CL275-2 | CL275F3D003 | 120N | 310N | 59 | Ø5.4 |
| CL275-4 | CL275F3D001 | Details Pending | Details Pending | Details Pending | Details Pending |
- Maximum Opening Angle: 120°
- Construction Dimensions:

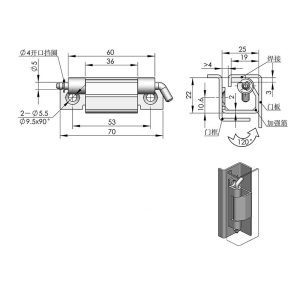

- CL275-1: Length 70mm, width 36mm.

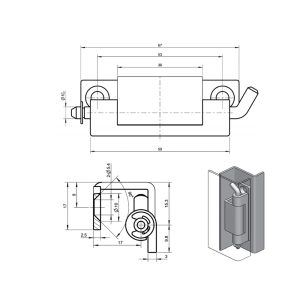

- CL275-2: Length 59mm, with a height of 36mm.
Applications
- Industrial cabinets and enclosures.
- Machinery panels and doors.
- Electrical equipment requiring reliable hinge support.
- Utility and service doors in industrial setups.
