CL274 Industrial Carbon Steel Hinge – 120° Opening with Zinc Plating
The CL274 hinge is an industrial-grade component designed for applications requiring smooth and reliable movement with a maximum opening angle of 120°. Crafted from durable carbon steel with a protective zinc plating, it is ideal for equipment and enclosure doors, ensuring enhanced corrosion resistance and long-term performance. The hinge’s robust design accommodates substantial static loads, making it suitable for demanding industrial environments.
- Material: High-strength carbon steel.
- Finish: Zinc plating for corrosion resistance and a polished appearance.
Products Categories
Get A Free Quote
Key Features
- 120° Opening Angle: Facilitates wide door openings for easy access.
- Durable Zinc Plating: Provides excellent corrosion resistance and a clean finish.
- High Load Capacity: Capable of handling static loads of up to 310N (axial) and 180N (radial).
- Compact Structure: Designed for efficient installation in confined spaces.
- Secure Fit: Integrated fixing holes for stable attachment to frames and doors.
Specifications
- Model Number: CL274
- ERP Code: CL274F3D001
- Load Ratings: Radial load – 180N; Axial load – 310N.
- Maximum Opening Angle: 120°.

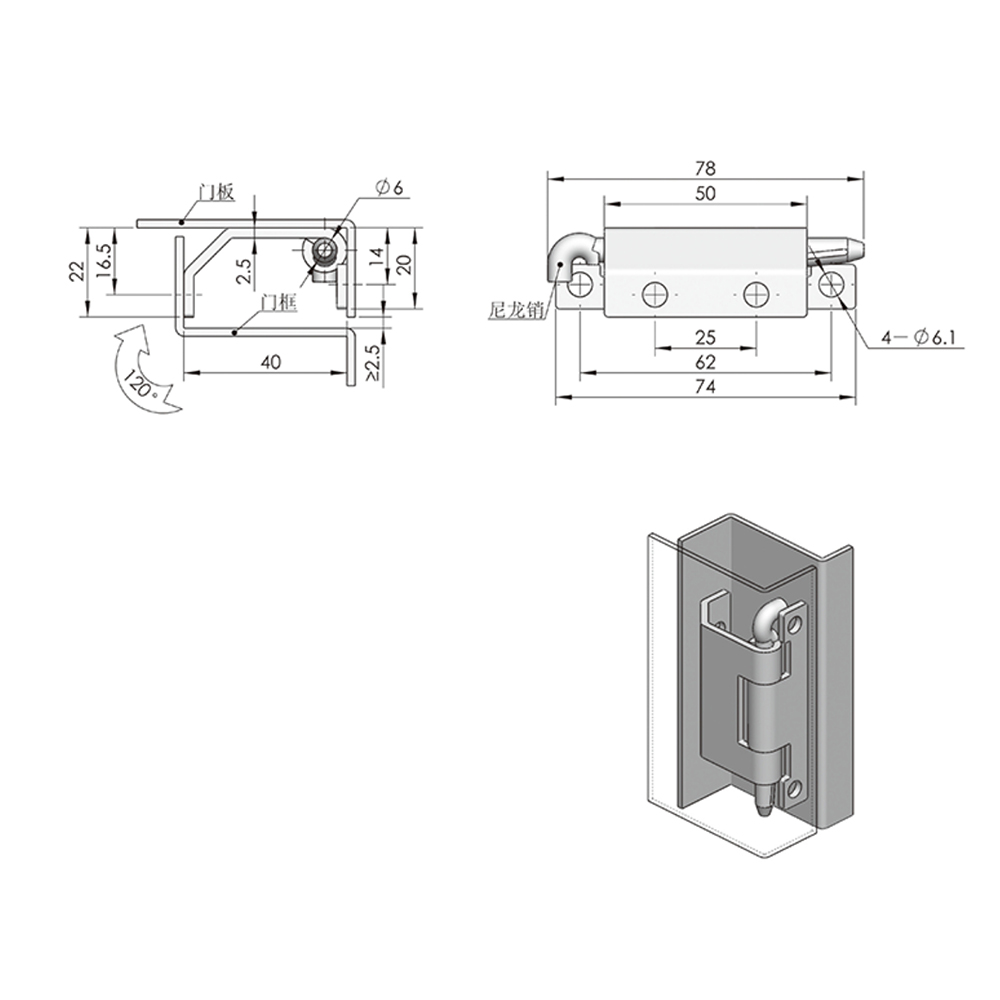

- Mounting Dimensions:
- Total length: 78mm
- Mounting holes: φ6.1mm diameter
- Plate height: 40mm
Applications
- Industrial cabinets and enclosures.
- Heavy-duty machinery doors.
- Electrical equipment panels requiring wide opening angles.
- Utility boxes in indoor and protected outdoor environments.
Keywords
- CL274 hinge
- 120° opening hinge
- Carbon steel hinge
- Industrial zinc-plated hinge
- Heavy-duty industrial hinge
- Enclosure hinge
- Machinery door hinge
- Electrical panel hinge
- High-strength carbon steel hinge
- Corrosion-resistant hinge
- Compact industrial hinge
- Radial load hinge 180N
- Axial load hinge 310N
- Secure-fit hinge
- Wide opening industrial hinge
