CL272 Adjustable Torque Hinge – Black, Medium Size, POM Material
The CL272 Adjustable Torque Hinge is engineered for applications that require reliable position control with adjustable torque. This medium-sized hinge features a durable construction made of black POM (Polyoxymethylene), reinforced with a carbon steel screw and a polyamide rotation shaft, ensuring longevity and consistent performance. The hinge allows for a smooth 160° opening angle, ideal for applications where precise positioning and hold-open functionality are necessary.
Material
- Hinge Material: Black POM (Polyoxymethylene)
- Screw Material: Carbon Steel
- Rotation Shaft Material: Polyamide (Nylon)
Surface Finish
- Black finish for a sleek and professional appearance.
Color/Appearance
- Black
Products Categories
Get A Free Quote
Key Features
- Adjustable Torque: Users can set the holding torque to maintain the hinge position as needed.
- Durable Construction: Built with quality POM and carbon steel for high durability and resistance.
- Wide Opening Angle: 160° opening range suitable for versatile applications.
- Position Control: Keeps doors or panels in an open, closed, or intermediate position without additional support.
- Compact Design: Ideal for medium to small-sized installations requiring precision.

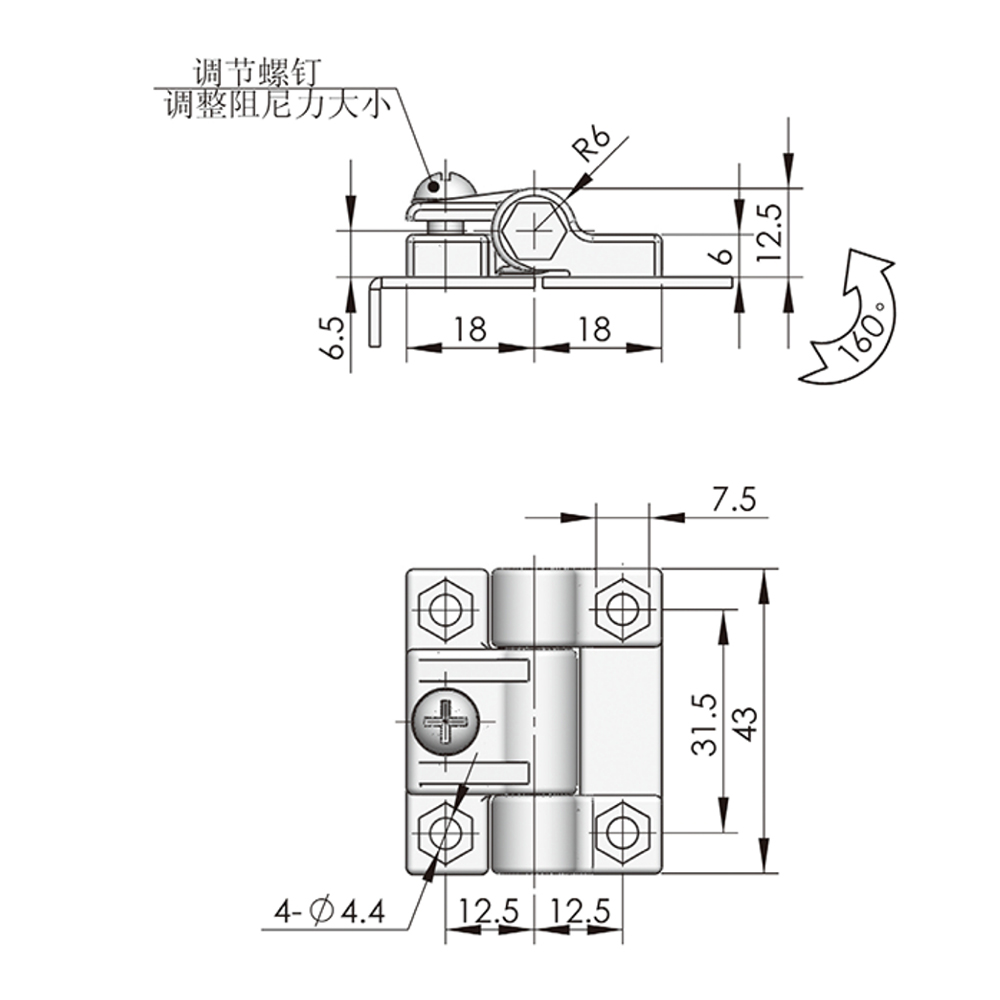

Specifications
- Opening Angle: 160°
- Radial Load Capacity: 1150 N (260 lbf)
- Axial Load Capacity: 950 N (214 lbf)
- Maximum Torque: 0.25 N·m (2.2 in·lbf)
- Operating Temperature Range: -5°C to 65°C (20°F to 150°F)
- Mounting Type: Suitable for M4 screws (not included)
Applications
- Used in industrial enclosures, cabinet doors, and other applications that require position control with adjustable holding torque.
Keywords
CL272 Hinge, Adjustable Torque Hinge, Position Control Hinge, Medium Size Hinge, Black Hinge, Equivalent E6-10-301-20, CL272-2, Door Hinge, POM Hinge, Carbon Steel Hinge.
