CL263 Pinet Steel Door Bolt, 132 x 50mm – Lockable Spring Bolt with Zinc Plating, Heavy-Duty for Doors and Gates
The Pinet Steel Door Bolt CL263 is a robust, lockable spring-loaded bolt designed for heavy-duty applications such as securing doors and gates. Made from durable carbon steel with a zinc plating finish, this bolt offers enhanced corrosion resistance and longevity in various environments. The simple design ensures easy installation and reliable security for your doors.
Material:
- Carbon Steel
Surface Finish:
- Zinc Plating
Structure Description:
- Spring-loaded bolt, designed for secure locking when engaged.
- Locking angle: 18mm rotation for locking behind two pillar rivets.
Performance Parameters:
- Max Static Load:
- Radial Load: 1295N
- Axial Load: Not applicable

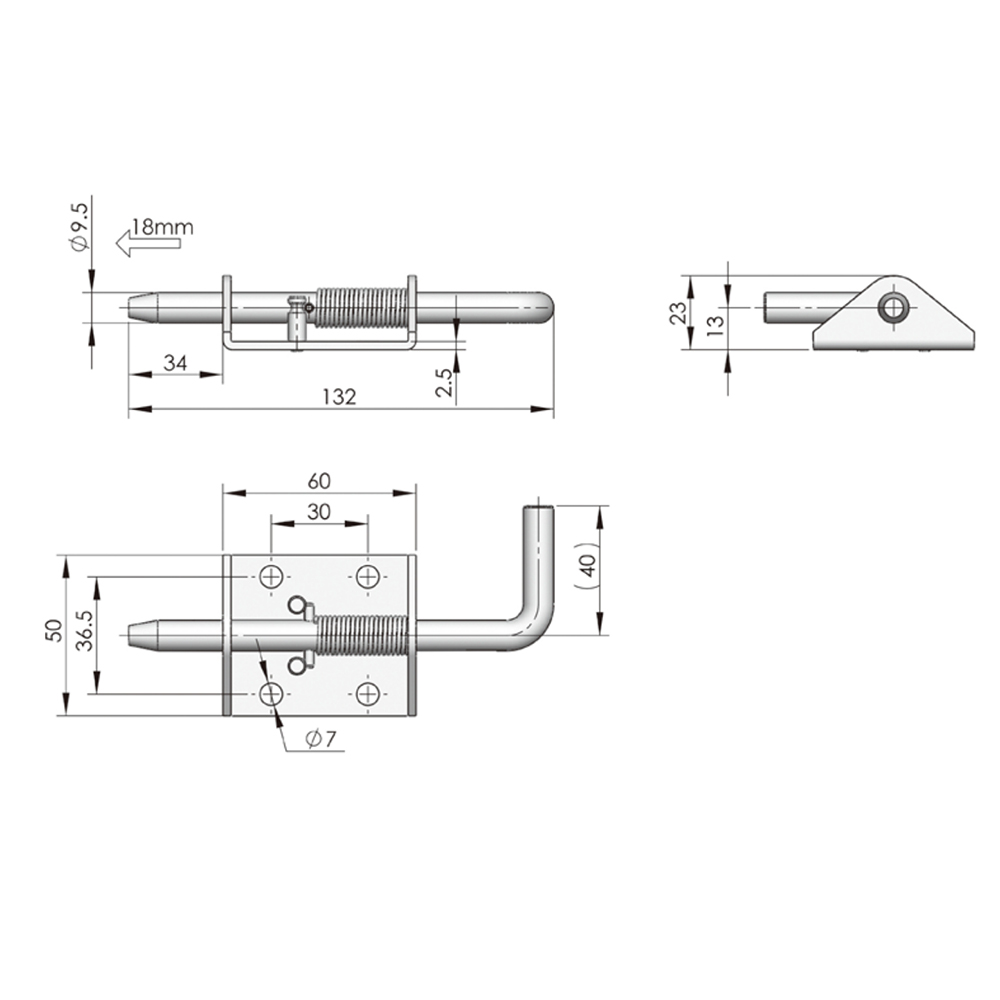

Dimensions:
- Total Length: 132mm
- Width: 50mm
- Bolt Diameter: 9.5mm
- Plate Thickness: 2.5mm
Products Categories
Get A Free Quote
Key Features
- Heavy-duty carbon steel construction for enhanced durability.
- Zinc plating for superior rust and corrosion resistance.
- Spring-loaded mechanism for easy engagement and disengagement.
- Designed with a 10mm diameter steel rod for secure locking.
Applications
- Suitable for doors, gates, cabinets, and various industrial locking applications.
Keywords
Pinet Steel Door Bolt, Lockable Spring Bolt, Heavy Duty Bolt, Door Security Bolt, Carbon Steel Bolt, Zinc-Plated Bolt, Industrial Door Locking, Spring Loaded Door Bolt, CL263, Lock Bolt for Doors.
