CL262 Industrial Carbon Steel Hinge – Zinc Plated with 120° Opening
The CL262 hinge is a high-performance industrial hinge designed for demanding applications. Manufactured from durable carbon steel with a zinc-plated finish, it ensures excellent corrosion resistance and long-term reliability. This hinge supports a 120° opening angle and is capable of handling significant radial and axial loads, making it ideal for industrial cabinets, machinery doors, and access panels.
Material and Finish:
- Material: High-strength carbon steel.
- Finish: Zinc plating for corrosion resistance and enhanced durability.
Products Categories
Get A Free Quote
Key Features
- 120° Opening Angle: Facilitates wide access for maintenance and operation.
- Robust Construction: Carbon steel body ensures strength and stability under heavy loads.
- Corrosion Resistance: Zinc-plated surface protects against rust and wear in challenging environments.
- High Load Capacity: Capable of supporting up to 430N radial load and 650N axial load.
- Compact Design: Optimized for industrial applications with space-saving dimensions.
Specifications
- Model Number: CL262
- ERP Code: CL262F3D001

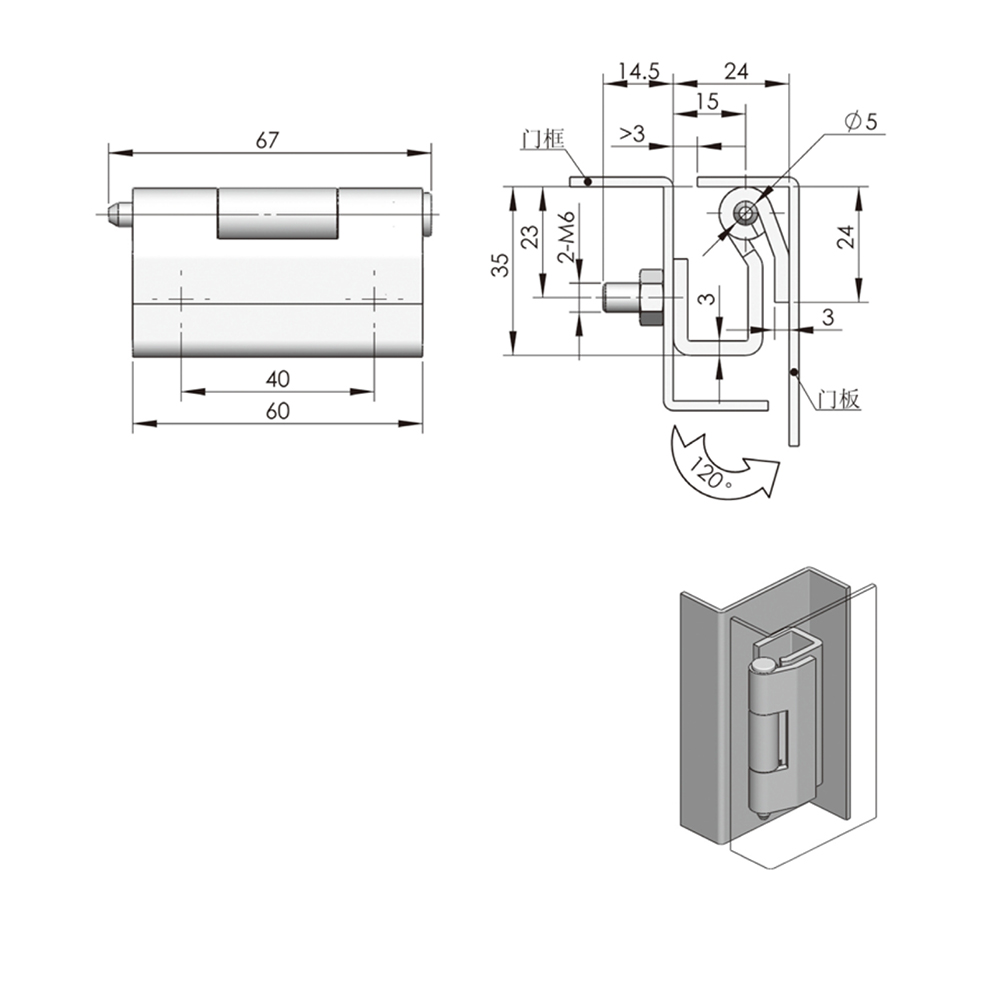

- Dimensions:
- Total width: 67mm
- Mounting plate height: 35mm
- Mounting plate width: 24mm
- Mounting Holes:
- Two M6 threaded holes
- Additional Ø5mm hole spacing for precise mounting
- Load Ratings:
- Radial Load: 430N
- Axial Load: 650N
- Maximum Opening Angle: 120°
Applications
- Industrial cabinets and enclosures.
- Machinery panels and heavy-duty equipment doors.
- Electrical and mechanical equipment requiring durable hinge solutions.
- Utility boxes in indoor and moderately exposed outdoor environments.
