CL255 Series Adjustable Panel Hinge, 180° Opening, Black Matte Finish
CL255 Series Adjustable Panel Hinge, 180° Opening, Black Matte Finish

CL255 Series Adjustable Panel Hinge, 180° Opening, Black Matte Finish

The CL255 series adjustable panel hinges provide a durable and flexible solution for secure panel positioning. Designed for compatibility with panel thicknesses of 1.5mm to 3mm, these hinges are constructed from high-strength zinc alloy and feature a matte black finish for superior corrosion resistance and a sleek appearance. With a maximum opening angle of 180°, these hinges ensure smooth and reliable operation in industrial and commercial applications. The series includes variants tailored to different panel thicknesses, offering precise and dependable functionality.

Materials:

  • Hinge Body: Zinc alloy (standard models) or carbon steel (specific models).

Surface Finish and Appearance:

  • Matte black coating for corrosion resistance and a professional aesthetic.
Products Categories
Get A Free Quote
Contact Form Demo (#3)

Key Features

  • Maximum opening angle: 180°
  • Compatible with panel thicknesses from 1.5mm to 3mm.
  • Flexible installation with multiple size options.
  • Robust zinc alloy or carbon steel construction for high durability.

Specifications

CL255 Series Adjustable Panel Hinge, 180° Opening, Black Matte Finish

Load Capacity:

  • Radial Load Capacity: 935N
  • Axial Load Capacity: 915N

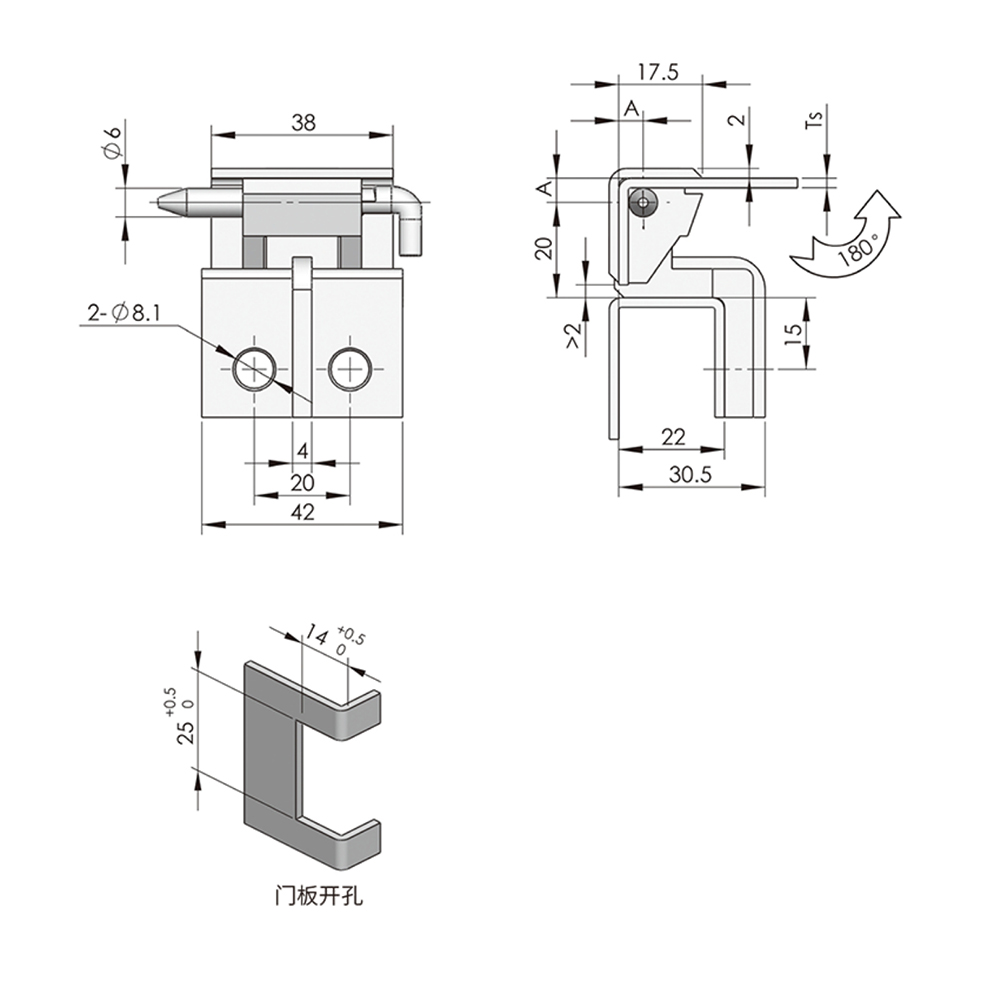

Variants and Dimensions (Refer to Technical Drawing):

  • CL255-1 / CL255-1A: Suitable for 2mm panels.

    • Width: 42mm, Height: 38mm, Hole Diameter: Ø8.1mm, Hole Spacing: 20mm.
  • CL255-2 / CL255-2A: Suitable for 3mm panels.

    • Same dimensions as above with adjustments for thicker panels.
  • CL255-3 / CL255-3A: Suitable for 1.5mm panels.

    • Same dimensions as above with adjustments for thinner panels.

Applications

  • Electrical cabinets
  • Industrial machinery panels
  • Commercial enclosures
  • Access doors

Keywords

Adjustable panel hinge, CL255 series, black matte hinge, 180-degree hinge, zinc alloy hinge, industrial hinge, panel thickness hinge, flexible panel hinge, robust hinge design.
