CL253 Series Hinge, Concealed Mounting, 120° Opening, Zinc Alloy, Black Matte Finish
The CL253-2 concealed hinge provides durable, streamlined mounting for doors and panels with a 120° opening angle. Constructed from high-quality zinc alloy with a corrosion-resistant black matte finish, this hinge is ideal for applications that require both reliability and a sleek aesthetic. Its compact design minimizes visible hardware, making it suitable for enclosures, equipment cabinets, and industrial panels.
Material:
Zinc Alloy Hinge Body, Steel Pin
Surface Finish:
Black Matte Finish
Color/Appearance:
Black
Key Features
- Concealed Mounting: Minimal visible hardware for a clean appearance
- Durable Construction: Zinc alloy body with a corrosion-resistant finish
- 120° Opening Angle: Allows for convenient access
- High Load Capacity: Supports up to 1000N in radial load and 1200N in axial load
Specifications
- Opening Angle: 120°
- Radial Load Capacity: 1000N
- Axial Load Capacity: 1200N

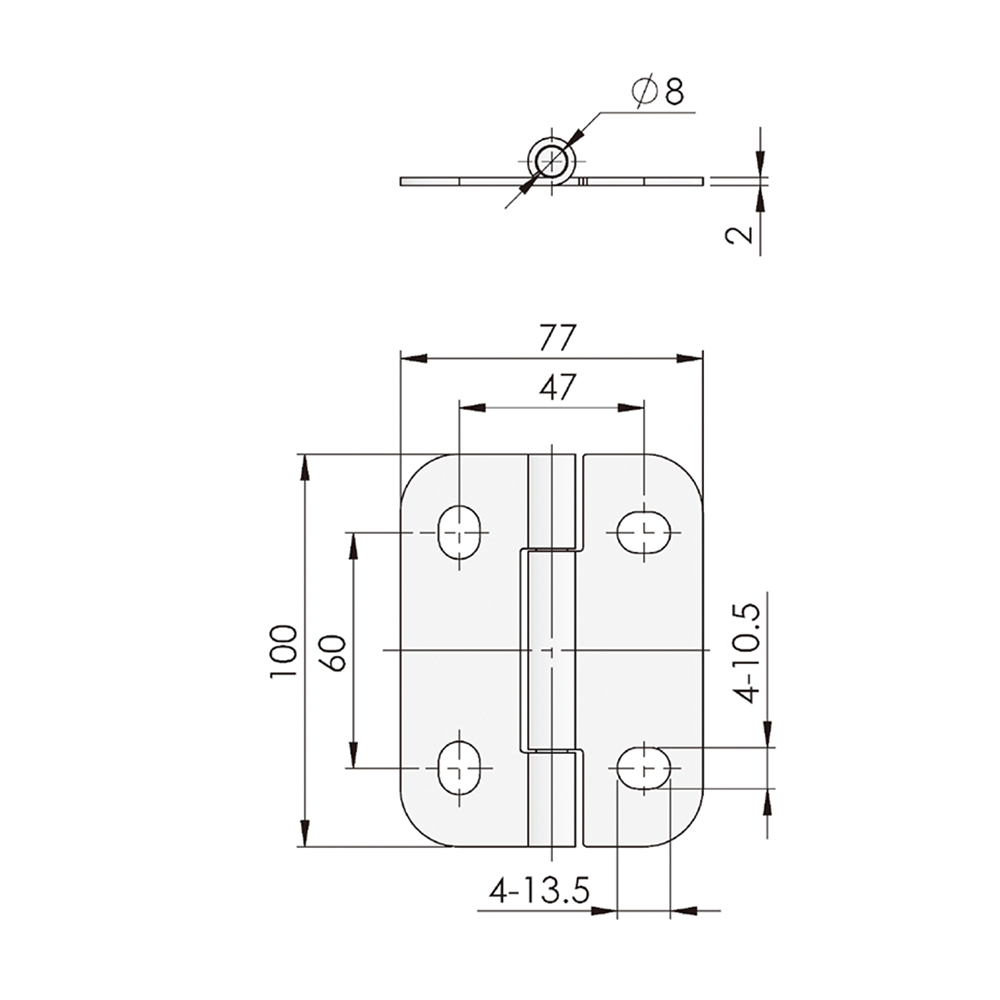

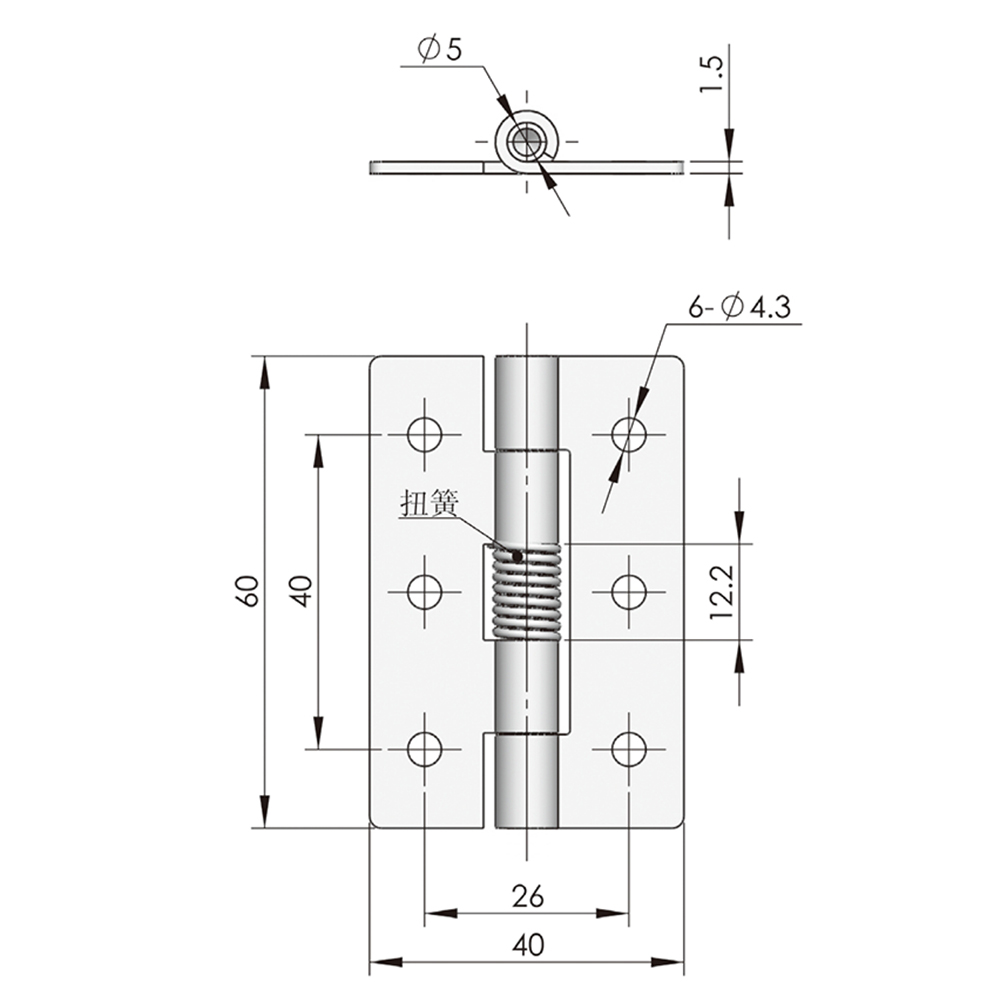

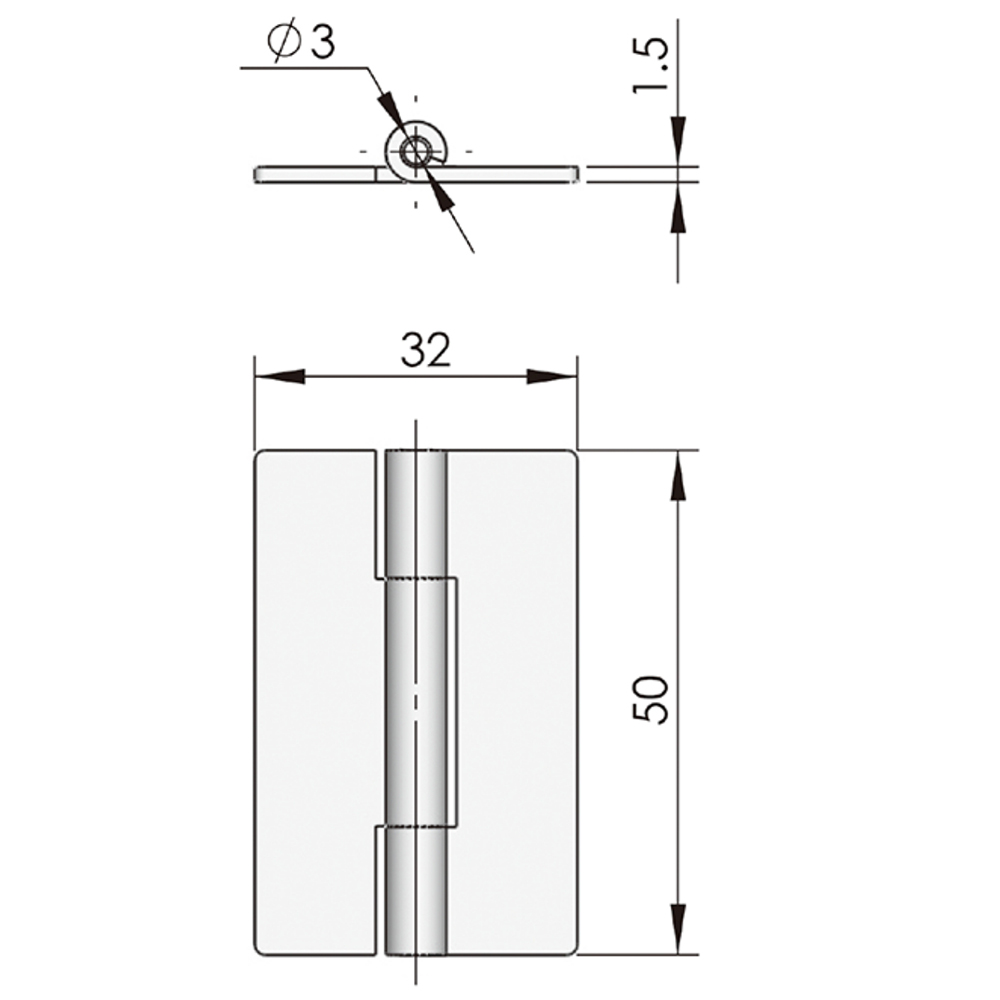

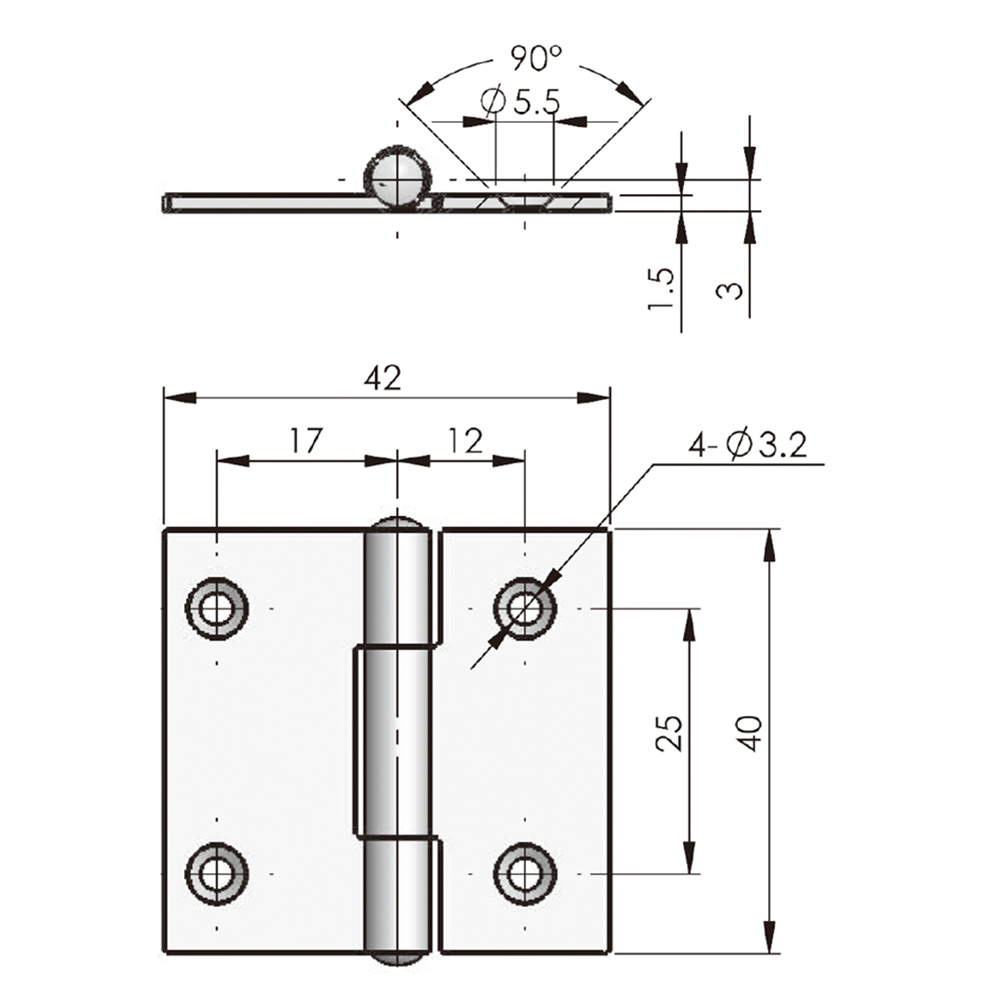

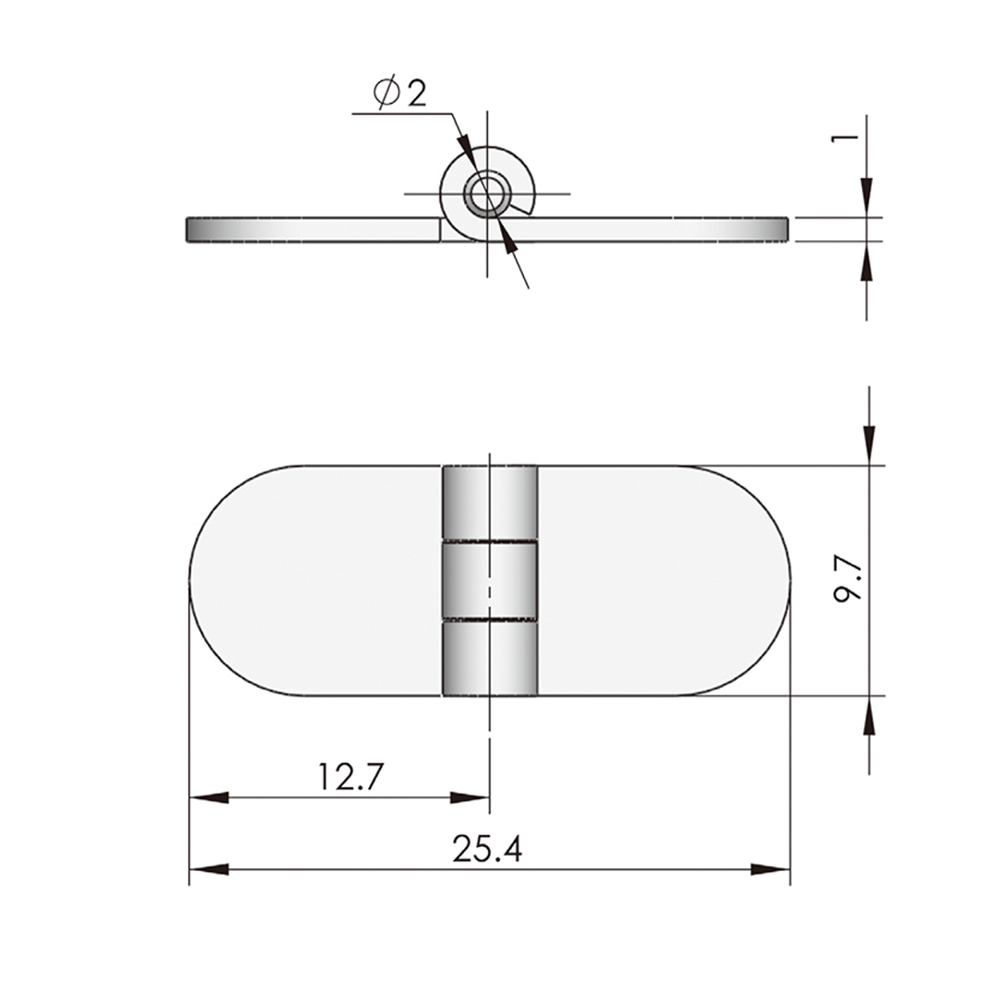

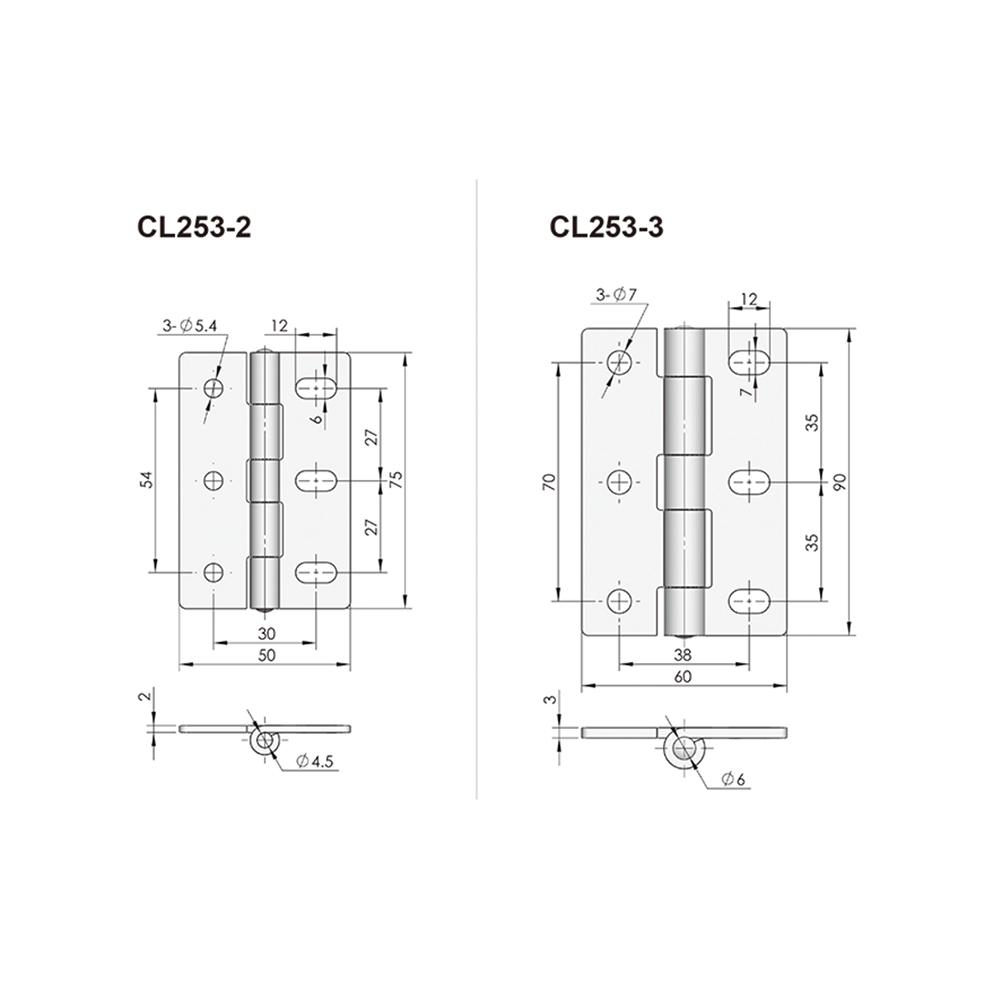

- Dimensions: As per technical drawings (customized dimensions available upon request)
Applications
- Industrial enclosures
- Equipment cabinets
- Control panels
- Concealed door applications requiring limited access
